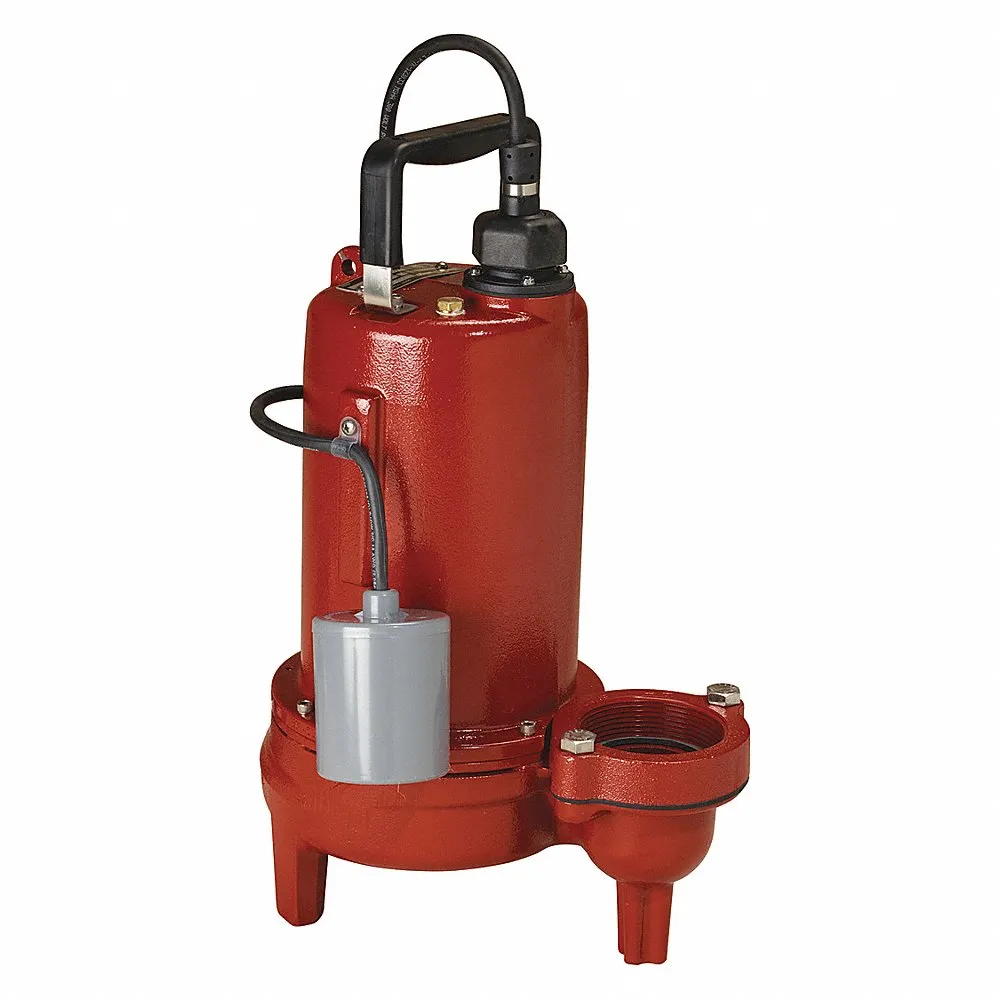

| Item | Sewage Pump |
| Amps | 12A |
| Body Material | Cast Iron |
| Cord Length | 10 ft. |
| Dia. | 9" |
| Diameter | 9" |
| Duty Cycle | Continuous |
| Flow Rate @ 10 Ft. | 125 GPM |
| Flow Rate @ 20 Ft. | 75 GPM |
| Frequency | 60 Hz |
| Height | 18 7/8" |
| Hp | 3/4 hp |
| Impeller Material | Cast Iron |
| Max. Flow Rate @ 15 Ft. | 105 GPM |
| Max. Head | 28 ft. |
| Max. Media Temp. | 140°F |
| Max. Solid Dia. | 2" |
| Off Point | 8 13/32" |
| On Point | 16 13/32" |
| Outlet Size | 2" |
| Phase | 1 |
| Rpm | 1725 RPM |
| Seal Material | Carbon Ceramic |
| Switch Electrical Connection | Piggyback |
| Thermal Protection | Yes |
| Voltage | 115V AC |
| Width At Widest Point | 12 1/2" |
| Agency Compliance | CSA |
| Body Dia. | 9" |
| Discharge | 2" |
| Flow Rate @ 10 Ft. Of Head | 125 GPM |
| Flow Rate @ 15 Ft. Of Head | 105 GPM |
| Flow Rate @ 20 Ft. Of Head | 75 GPM |
| Hz | 60 Hz |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Diameter Solids | 2" |
| Max. Liquid Temp. | 140°F |
| Overall Height | 18 7/8" |
| Phase - Pumps | 1 |
| Rated Voltage | 115V |
| Shaft Seal Material - Pumps | Carbon Ceramic |
| Ship weight (kg) | 28.8 |
