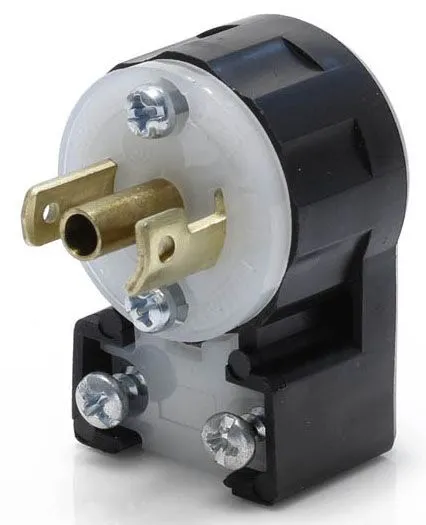

| Item | Locking Plug |
| Amps | 15A |
| Body Material | Nylon |
| Connection Orientation | Angled |
| Face Dia. | 1.03" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.43" |
| For Minimum Cable Diameter | 0.218" |
| Grade | Federal |
| Grounding | Grounded |
| Housing Color | Black, White |
| Ip Rating | Not Rated |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 14 AWG |
| Midget Locking | Yes |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 18 AWG |
| Nema Plug Configuration | ML2-15P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Voltage | 125V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Current Rating | 15A |
| Face Diameter | 1.03" |
| Housing Material | Nylon |
| Market | Industrial |
| Maximum Operating Temperature | 60°C |
| Maximum Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°C |
| Minimum Wire Size | 18 AWG |
| Phase | Single |
| Standards | ANSI C73, CSA C22.2 NO. 42 FILE LR-406, NEMA WD-6, NOM 057 CERTIFIED, UL 498 FILE E13393, UL FEDERAL SPECIFICATION WC-596 FILE E13393 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 125V AC |
| Ship weight (kg) | 0.5 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
