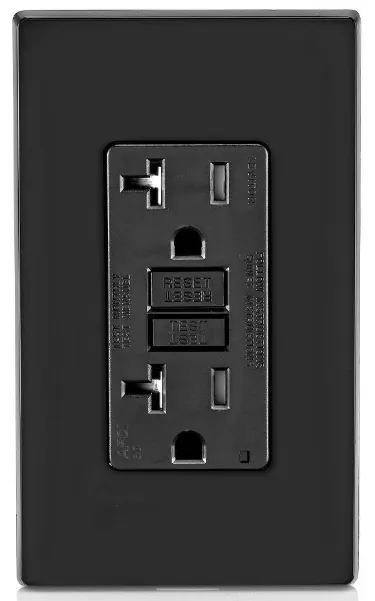

LEVITON AFTR2-E Receptacle, Decorator Duplex, 5-20R, 20 A, 125V AC, Black, 2 Poles, Screw Terminals
€115.57 /unit
Request a Quote
Payment
Payment
| Item | Receptacle |
| Amps | 20A |
| Body Material | Polycarbonate |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Gfci | Yes |
| Grounding | Grounded |
| Housing Color | Black |
| Hp | 1 hp |
| Includes | Screws, Self Grounding Clip |
| Max. Operating Temp. | 66°C |
| Max. Wire Size | 10 AWG |
| Min. Operating Temp. | -35°C |
| Min. Wire Size | 14 AWG |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Polarized | Yes |
| Receptacle Type | Decorator Duplex |
| Reset Type | Automatic |
| Reverse Service | Yes |
| Self Testing | No |
| Surge Protection | Yes |
| Visual Indicator Lights | Power Connected |
| Voltage | 125V AC |
| Wall Plate Material | Nylon |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Afci | Yes |
| Compatible With Series | Series AFTR2 |
| Current Rating | 20A |
| Grade | General Use |
| Horsepower Rating | 1 hp |
| Housing Material | Polycarbonate |
| Maximum Operating Temperature | 150.8°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -31°F |
| Minimum Wire Size | 14 AWG |
| Mount Type | Flush |
| Phase | Single |
| Special Resistance | Tamper Resistant |
| Standards | CSA CERTIFIED, NEMA WD-6, UL LISTED |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 10.69 |
| Ship length (cm) | 3.23 |
| Country of Origin | CN |
