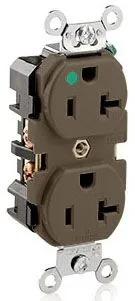

LEVITON 8300-H Receptacle, Duplex, 5-20R, 20 A, 125V AC, Brown, 2 Poles, Screw Terminals
€17.09 /unit
Request a Quote
Payment
Payment
| Item | Receptacle |
| Amps | 20A |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Face Plate Height | 2 3/4" |
| Gfci | No |
| Grade | Hospital |
| Grounding | Grounded |
| Housing Color | Brown |
| Mount Hole Center-to-center Height | 3 7/25" |
| Mounting Type | Flush |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Current Rating | 20A |
| Mount Type | Flush |
| Phase | Single |
| Resistance Property | General Purpose |
| Standards | ANSI C73, CSA C22.2 NO. 42 FILE E152105, CSA CERTIFIED, NEMA WD-6, UL 498HG FILE E13399, UL FEDERAL SPECIFICATION WC-596 FILE E13399, UL LISTED |
| Ul 94 Flammability Rating | V-2 |
| Voltage Rating | 125V AC |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.09 |
| Ship length (cm) | 2.79 |
| Country of Origin | MX |
