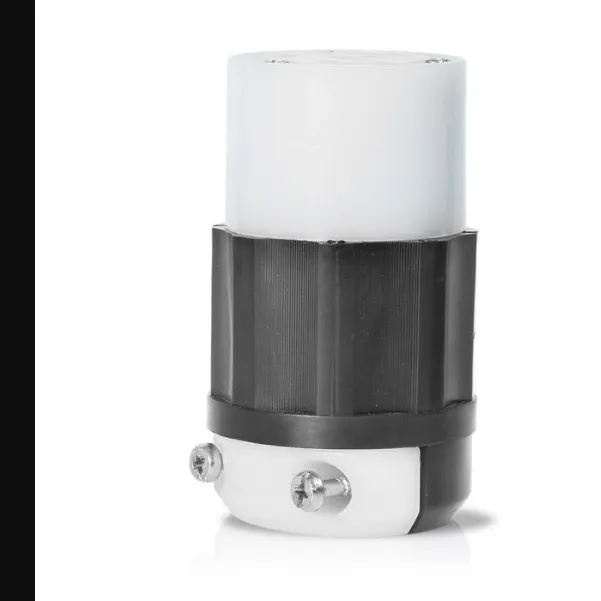

LEVITON 7413-C Locking Connector, Non-NEMA, 20 A, 120/208V AC, 3 Poles, Black/White
€118.31 /unit
Request a Quote
Payment
Payment
| Item | Locking Connector |
| Amps | 20A |
| Body Material | Nylon |
| Cap Type | No Cap, Cover |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Face Dia. | 1.97" |
| For Environment | Dry |
| For Maximum Cable Diameter | 0.895" |
| For Minimum Cable Diameter | 0.595" |
| Grade | Federal |
| Grounding | Non Grounded |
| Housing Color | Black, White |
| Insulation Material | Nylon |
| Ip Rating | Not Rated |
| Length | 3.78" |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Outside Dia. | 2.22" |
| Phase | Three |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Shrouded | No |
| Voltage | 120/208V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
| Current Rating | 20A |
| Face Diameter | 1.97" |
| Housing Material | Nylon |
| Market | Industrial |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 10 AWG |
| Minimum Operating Temperature | -40°F |
| Minimum Wire Size | 14 AWG |
| Outside Diameter | 2.22" |
| Overall Length | 3.78" |
| Standards | ANSI C73, CSA C22.2 NO. 42 FILE LR-406, NEMA WD-6, NOM 057 CERTIFIED, ROHS COMPLIANT, UL 498 FILE E13393, UL 94, UL FEDERAL SPECIFICATION WC-596 FILE E13393 |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 120/208V AC |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 8.97 |
| Ship length (cm) | 71.12 |
| Country of Origin | MX |
