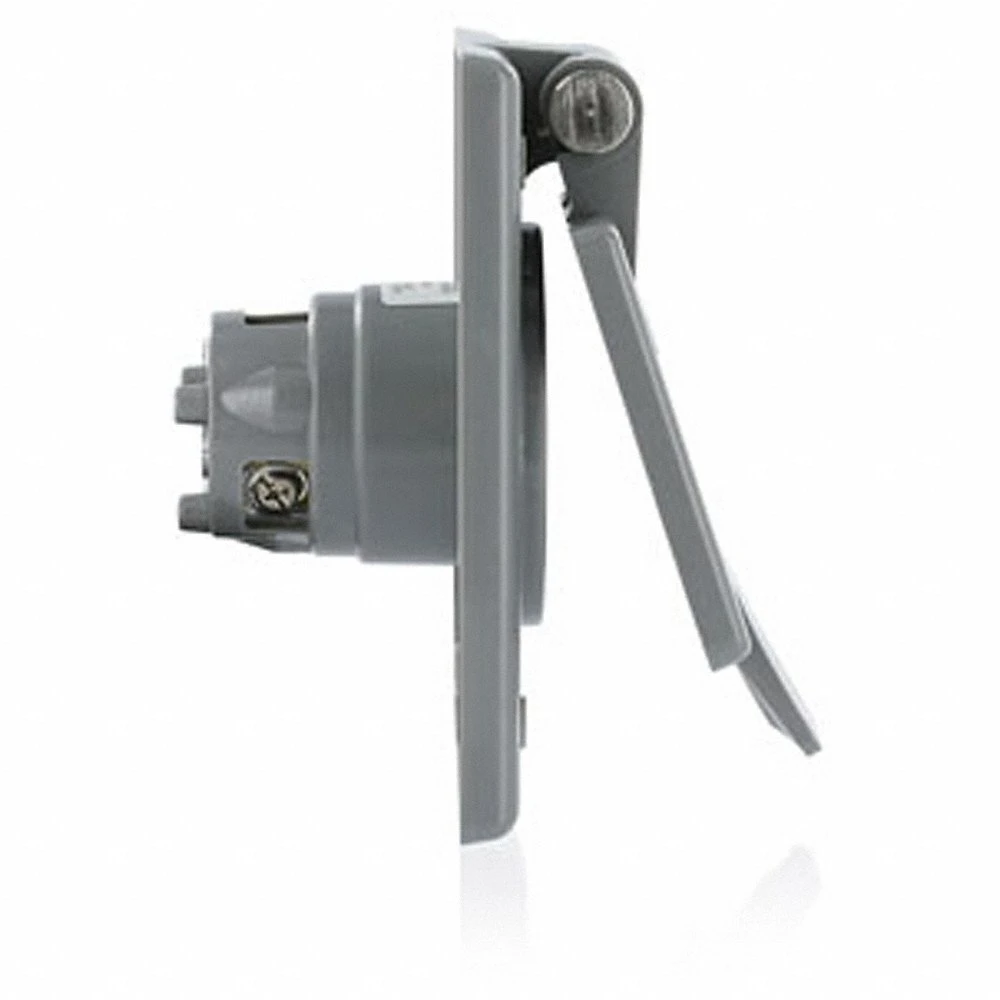

| Item | Flanged Receptacle |
| Current Rating | 20A |
| Flange Shape | Rectangular |
| Housing Color | Gray |
| Ip Rating | Not Rated |
| Nema Enclosure Rating | NEMA 3R |
| Nema Plug Configuration | 5-20P |
| Number Of Blades | 3 |
| Number Of Poles | 2 |
| Resistance Properties | Corrosion Resistant, Impact Resistant, Weather Resistant |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back |
| Wire Connection Type | Screw Terminals |
| Phase | Single |
| Standards | ANSI C73, CSA C22.2 NO. 42 FILE LR-16347, NEMA WD-6, ROHS COMPLIANT, UL 498 FILE E13393 |
| Wire Connection Types | Screw Terminals |
| Ship weight (kg) | 0.3 |
| Ship height (cm) | 11.58 |
| Ship length (cm) | 7.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
