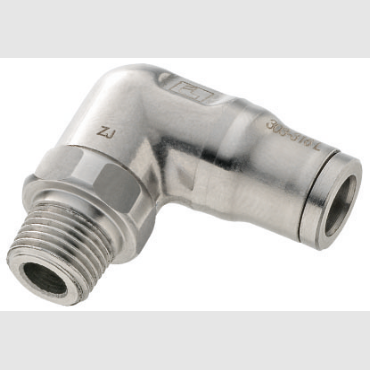

| Item | Male Elbow |
| Color | Silver |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Nylon, Stainless Steel |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| System Of Measurement | Imperial/Metric |
| Application | Chemicals, Food Processing |
| Compatible Tube Hardness | 95 Shore A |
| Fitting Material | Stainless Steel |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | MNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 1/8"-28 |
| Includes Pre-applied Thread Sealant | No |
| Material Grade | 316L |
| Maximum Operating Pressure | 435 psi |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 13°F |
| Overall Length | 20 mm |
| Specific Fitting Shape | 90° Elbow Adapter |
| Standards | 2011/65/EC, DI: 2002/95/EC (ROHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 1935/2004/EC, RG: 21CFR (FDA APPROVED), UL 94 V-0: SEAL, USDA NSF H1: GREASE |
| Vacuum Rating | 28 in. hg |
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
| Product | Model | Basic Material | Body Material | Connection Type | Hex Size | Item | Pipe Size | Temp. Range | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3699 08 13 | Metal | Nickel Plated Brass | Tube x BSPP | 16mm | Male Elbow, 90 Degrees | 1/4" | -4 Degrees to 302 Degrees F | 8mm | 1 | €24.01 | |
 |
3199 04 13 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x Male BSPP | 16mm | Male Elbow, 90 Degrees | 1/4" | -4 Degrees to 175 Degrees F | 4mm | 10 | €189.90 | |
 |
3109 06 13 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x Male BSPT | 14mm | Male Elbow, 90 Degrees | 1/4" | -4 Degrees to 175 Degrees F | 6mm | 10 | €110.17 | |
|
3109 12 21 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x Male BSPT | 21mm | Male Elbow, 90 Degrees | 1/2" | -4 Degrees to 175 Degrees F | 12mm | 10 | €326.29 | |
|
3199 14 17 | - | - | - | - | Male Elbow, 90 Degrees | - | - | - | 10 | €252.02 | |
 |
3113 08 13 | - | - | - | - | Male Elbow, 45 Degrees | - | - | - | 10 | €100.95 | |
|
3199 12 21 | - | - | - | - | Male Elbow, 90 Degrees | - | - | - | 10 | €257.91 |
