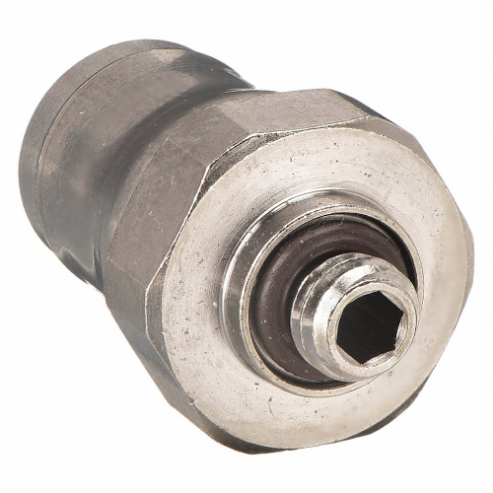

| Item | Male Connector |
| Application | Food Processing, Harsh Detergents, Non-Potable Water, Oils, Steam |
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Copper, Fluoropolymer, Polyethylene, Polyurethane, Nylon, Stainless Steel |
| Finish | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 4 mm |
| Fitting Side B Connection Type | Male Metric |
| Fitting Side B Pipe Size | 5 mm |
| Fitting Thread Size | 5 |
| Length | 15.5 mm |
| Max. Operating Temp. | 302°F |
| Max. Pressure | 435 psi |
| Min. Operating Temp. | 13°F |
| Resistance Properties | Abrasion Resistant, Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| System Of Measurement | Metric |
| Vacuum Pressure | 28 in. hg |
| Finish/coating | Nickel Plated |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 435 psi |
| Maximum Operating Temperature | 302°F |
| Minimum Operating Temperature | 13°F |
| Overall Length | 15.5 mm |
| Standards | 2011/65/EC, ASTM B733-04, DI: 2002/95/EC (ROHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), ISO 14743, RG: 1907/2006 (REACH), RG: 1935/2004/EC, RG: 21CFR (FDA APPROVED), UL 94 V-0, USDA NSF H1: GREASE |
| Vacuum Rating | 28 in. hg |
| Ship height (cm) | 1.55 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | ES |
| Product | Model | Basic Material | Body Material | Connection Type | Hex Size | Pipe Size | Temp. Range | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3101 04 09 | - | - | - | - | - | - | - | 10 | €99.34 | |
 |
3101 04 10 | Metal | Nickel Plated Brass | Tube x MNPT | 13mm | 1/8" | -4 Degrees to 175 Degrees F | 4mm | 10 | €91.90 | |
|
3101 04 13 | - | - | - | - | - | - | - | 10 | €126.00 | |
 |
3101 04 19 | - | - | - | - | - | - | - | 10 | €89.41 | |
|
3101 06 10 | - | - | - | - | - | - | - | 10 | €93.12 | |
|
3101 06 19 | - | - | - | - | - | - | - | 10 | €141.14 | |
 |
3101 06 21 | - | - | - | - | - | - | - | 10 | €133.93 |
