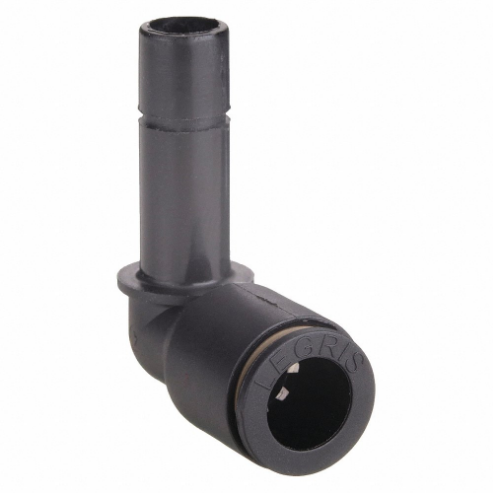

| Item | 90 Degree Elbow |
| Application | Air |
| Color | Black |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 4 mm |
| Fitting Side B Connection Type | Tube Stem |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 26.5 mm |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | 90° Elbow Adapter |
| Standards | 2011/65/EC, DI: 1907/2006 (REACH), DI: 2002/95/EC (ROHS), DI: 97/23/EC (PED), ISO 14743 |
| System Of Measurement | Metric |
| Vacuum Rating | 28 in. hg |
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 5.84 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
| Product | Model | Pkg. Qty. | Price | |
|---|---|---|---|---|
 |
3102 04 00 | 10 | €71.20 | |
 |
3102 04 06 | 10 | €65.21 | |
 |
3102 06 00 | 10 | €81.25 | |
|
3102 08 00 | 10 | €90.87 | |
 |
3102 08 10 | 10 | €172.38 | |
|
3102 10 00 | 10 | €183.16 | |
|
3102 12 00 | 10 | €224.56 |
