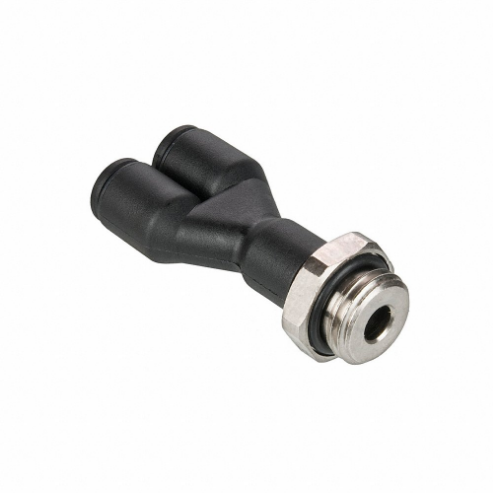

| Item | Fitting |
| Application | Air, Packaging, Robotics, Semi-Conductors, Textile, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi Rigid Nylon |
| Fitting Side A Connection Type | Metric |
| Fitting Side A Pipe Size | 5 mm |
| Fitting Side B Connection Type | Push To Connect |
| Fitting Side B Tube Outer Diameter | 6 mm |
| Fitting Side C Connection Type | Push To Connect |
| Fitting Side C Tube Outer Diameter | 6 mm |
| Length | 0.812" |
| Material | Polymer |
| Max. Operating Pressure | 290 psi |
| Max. Operating Temp. | 176°F |
| Min. Operating Temp. | -4°F |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Wye |
| Sub-brand | Lf3000(R) |
| System Of Measurement | Metric |
| Thread Size | 5 mm |
| Vacuum Rating | 755 mm hg |
| Fitting Material | Polymer |
| Fitting Thread Size | M5 |
| Includes Pre-applied Thread Sealant | No |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 176°F |
| Minimum Operating Temperature | -4°F |
| Overall Length | 13/16" |
| Standards | 2011/65/EC, DI : 1907/2006 (REACH), DI : 2002/95/EC (ROHS), DI: 97/23/EC (PED), ISO 14743 |
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 3.95 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 1.27 |
| Country of Origin | FR |
