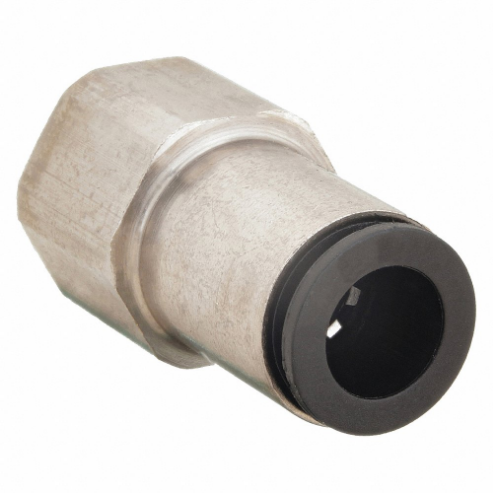

| Item | Female Adapter |
| Basic Material | Metal |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Connection Type | Tube x FNPT |
| Hex Size | 13 mm |
| Max. Pressure | 290 psi |
| Pipe Size | 1/8" |
| Temp. Range | -4°F to +175°F |
| Tube Size | 0.156" |
| Application | Air, Cutting Fluids, Inert Gases, Vacuum |
| Color | Black |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Fluoropolymer, Nylon, Polyethylene, Polyurethane, Semi-Rigid Nylon |
| Fitting Material | Nylon |
| Fitting Side A Connection Type | Push-to-Connect |
| Fitting Side A Tube Outer Diameter | 5/32" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 1/8" |
| Fitting Thread Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Maximum Operating Pressure | 290 psi |
| Maximum Operating Temperature | 175°F |
| Minimum Operating Temperature | 4°F |
| Overall Length | 7/8" |
| Release Type | Button |
| Resistance Properties | Chemical Resistant, Corrosion Resistant |
| Specific Fitting Shape | Straight Adapter |
| Standards | 2011/65/EC, DI: 1907/2006 (REACH), DI: 2002/95/EC (ROHS), DI: 97/23/EC (PED), ISO 14743 |
| System Of Measurement | Imperial |
| Vacuum Rating | 28 in. hg |
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 1.27 |
| HS code | 7412200035 |
| Country of Origin | MX |
