Get it by Tuesday, Jun 17
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
Payment

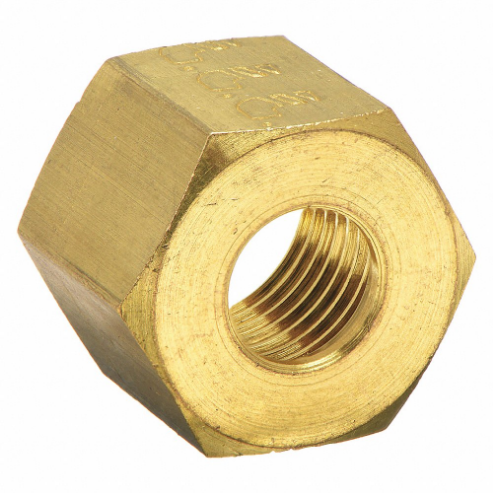

| Item | Nut |
| Application | Chemical Fluids, Air, Disinfectant, Fuel, Hydraulic Oil, Machining Oil |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Nut |
| Compatible Tube Outer Dia. | 4 mm |
| Connection Type | Compression |
| Hex Size | 10 mm |
| Length | 11 mm |
| Material | Brass |
| Max. Operating Pressure | 3335 psi |
| Max. Operating Temp. | 100°C |
| Min. Operating Temp. | 40°C |
| Specific Fitting Shape | Nut |
| Specific Pipe Fitting Shape | Nut |
| System Of Measurement | Metric |
| Thread Size | M8 x 1 |
| Tube Size | 5/32" |
| Type | Compression |
| Compatible Tube Outer Diameter | 4 mm |
| Fitting Connection Type | Compression |
| Fitting Material | Brass |
| Maximum Operating Pressure | 3335 psi |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | 40°C |
| Overall Length | 11 mm |
| Series | Brass metric compression |
| Standards | ATEX, PED, REACH, ROHS, WEEE |
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 0.11 |
| Ship length (cm) | 1.1 |
| Ship width (cm) | 0.77 |
| Country of Origin | ES |
| Model | Pkg. Qty. | Price | |
|---|---|---|---|
| 0110 12 00 | 50 | €516.35 | |
| 0110 08 00 | 50 | €238.76 | |
| 0110 10 00 | 50 | €405.70 |
