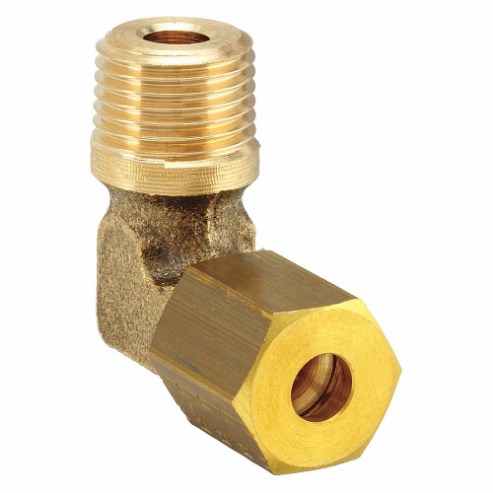

| Item | Male Elbow |
| Application | Air, Chemical Fluids, Fuel, Hydraulic Oil, Machining Oil, Potable Water , Chemical Fluids, Air, Fuel, Hydraulic Oil, Machining Oil, Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Compatible Tube Material | Aluminum, Copper, Thermoplastic |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | MBSPT |
| Fitting Side B Pipe Size | 1/8" |
| Hex Size | 13 mm |
| Length | 22 mm |
| Max. Operating Temp. | 250°F |
| Max. Pressure | 2175 psi |
| Mfr. Series | Metric Compression Series |
| Min. Operating Temp. | 40°F |
| System Of Measurement | Metric |
| Thread Size B | 1/8" |
| Type | Compression |
| Maximum Operating Pressure | 2175 psi |
| Maximum Operating Temperature | 250°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 22 mm |
| Series | Metric Compression |
| Specific Fitting Shape | 90° Elbow Adapter |
| Standards | CNOMO: E07.21.115N, DI: 2002/95/EC (ROHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), RG: 1907/2006 (REACH), SAE J512 |
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 1.47 |
| Ship length (cm) | 2.2 |
| Ship width (cm) | 0.22 |
| Country of Origin | FR |
| Product | Model | Basic Material | Body Material | Connection Type | Hex Size | Item | Pipe Size | Temp. Range | Tube Size | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3699 08 13 | Metal | Nickel Plated Brass | Tube x BSPP | 16mm | Male Elbow, 90 Degrees | 1/4" | -4 Degrees to 302 Degrees F | 8mm | 1 | €24.01 | |
 |
3199 04 13 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x Male BSPP | 16mm | Male Elbow, 90 Degrees | 1/4" | -4 Degrees to 175 Degrees F | 4mm | 10 | €189.90 | |
 |
3109 06 13 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x Male BSPT | 14mm | Male Elbow, 90 Degrees | 1/4" | -4 Degrees to 175 Degrees F | 6mm | 10 | €110.17 | |
|
3109 12 21 | Plastic/Metal Combination | Glass Filled Nylon and Nickel Plated Brass | Tube x Male BSPT | 21mm | Male Elbow, 90 Degrees | 1/2" | -4 Degrees to 175 Degrees F | 12mm | 10 | €326.29 | |
|
3199 14 17 | - | - | - | - | Male Elbow, 90 Degrees | - | - | - | 10 | €252.02 | |
 |
3113 08 13 | - | - | - | - | Male Elbow, 45 Degrees | - | - | - | 10 | €100.95 | |
|
3199 12 21 | - | - | - | - | Male Elbow, 90 Degrees | - | - | - | 10 | €257.91 |
