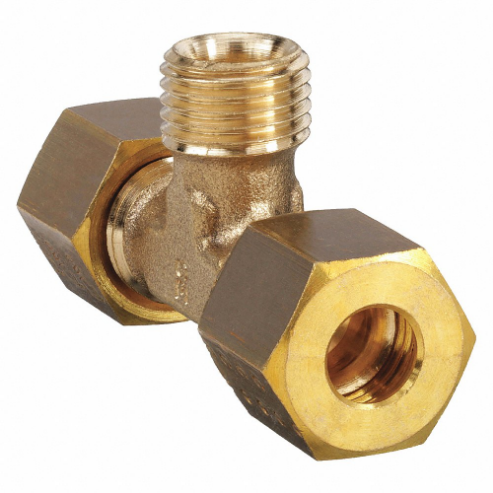

| Item | Equal Tee |
| Application | Air, Fuel, Hydraulic Oil, Machining Oil |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 10 mm |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 10 mm |
| Fitting Side C Connection Type | Compression |
| Fitting Side C Tube Outer Diameter | 10 mm |
| Hex Size | 19 mm |
| Length | 60 mm |
| Material | Brass |
| Max. Operating Pressure | 1087 psi |
| Max. Operating Temp. | 100°F |
| Min. Operating Temp. | 40°F |
| Specific Fitting Shape | TEE |
| Fitting Material | Brass |
| Maximum Operating Pressure | 1087 psi |
| Maximum Operating Temperature | 100°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 60 mm |
| Standards | CNOMO: E07.21.115N, DI: 2002/95/EC (ROHS), DI: 94/9/EC (ATEX), DI: 97/23/EC (PED), RG: 1907/2006 (REACH) |
| Ship weight (kg) | 1.07 |
| Ship height (cm) | 0.63 |
| Ship length (cm) | 6 |
| Ship width (cm) | 3.79 |
| Country of Origin | FR |
| Model | Pkg. Qty. | Price | |
|---|---|---|---|
| 0104 04 00 | 10 | €291.27 | |
| 0104 08 00 | 10 | €331.56 | |
| 0104 12 00 | 10 | €633.22 | |
| 0104 06 00 | 10 | €288.85 |
