LEGRAND 885TRDBCC12 Receptacle, Duplex, 5-15R, 15 A, 125V AC, Brown, 2 Poles, Push Inch Size, Tamper Resistant | CR8PVT 56FN02

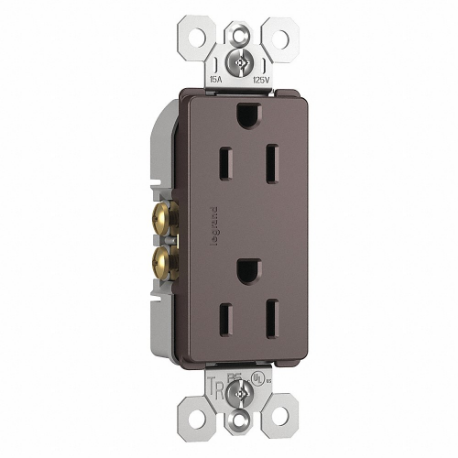

LEGRAND 885TRDBCC12 Receptacle, Duplex, 5-15R, 15 A, 125V AC, Brown, 2 Poles, Push Inch Size, Tamper Resistant

Item: CR8PVTModel: 885TRDBCC12Cross Ref: 56FN02
In Stock

Get it by Tuesday, Jun 17

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€16.88 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

ItemReceptacle
AfciNo
Amps15A
Body MaterialThermoplastic
ColorBronze , Brown
Connection OrientationStraight
Contact MaterialBrass
CulusYes
Depth1"
Face Plate Height2 3/5"
Face Plate Width1.3"
GfciNo
GroundingGrounded
Housing ColorBrown
IncludesGrounding Clip, Mounting Hardware
Max. Wire Size12 AWG
Min. Wire Size14 AWG
Mount Hole Center-to-center Height3 1/5"
Mounting Hardware IncludedYes
Mounting Type - Plugs And ReceptaclesFlush
Nema Receptacle ConfigurationNEMA 5-15R
Number Of Gangs1
Number Of Poles2
Number Of Wires3
Outlet Type - Plugs And ReceptaclesDecorator Duplex
Power IndicatorNo
Receptacle TypeDuplex
Resistance PropertiesTamper Resistant
Sub-brandRadiant(R)
Surge ProtectionNo
Tamper ResistantYes
Voltage125V AC
Weather ResistantNo
Wire Connection LocationBack, Side
Wire Connection TypePush In
Wiring MethodBack, Side
Current Rating15A
GradeGeneral Use
Housing MaterialThermoplastic
Includes Mounting HardwareYes
Maximum Wire Size12 AWG
Minimum Wire Size14 AWG
Overall Depth1"
Special ResistanceTamper Resistant
StandardsCULUS LISTED
Voltage Rating125V AC
Wire Connection TypesPush In

Shipping Info:

Ship weight (kg) 0.06
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
