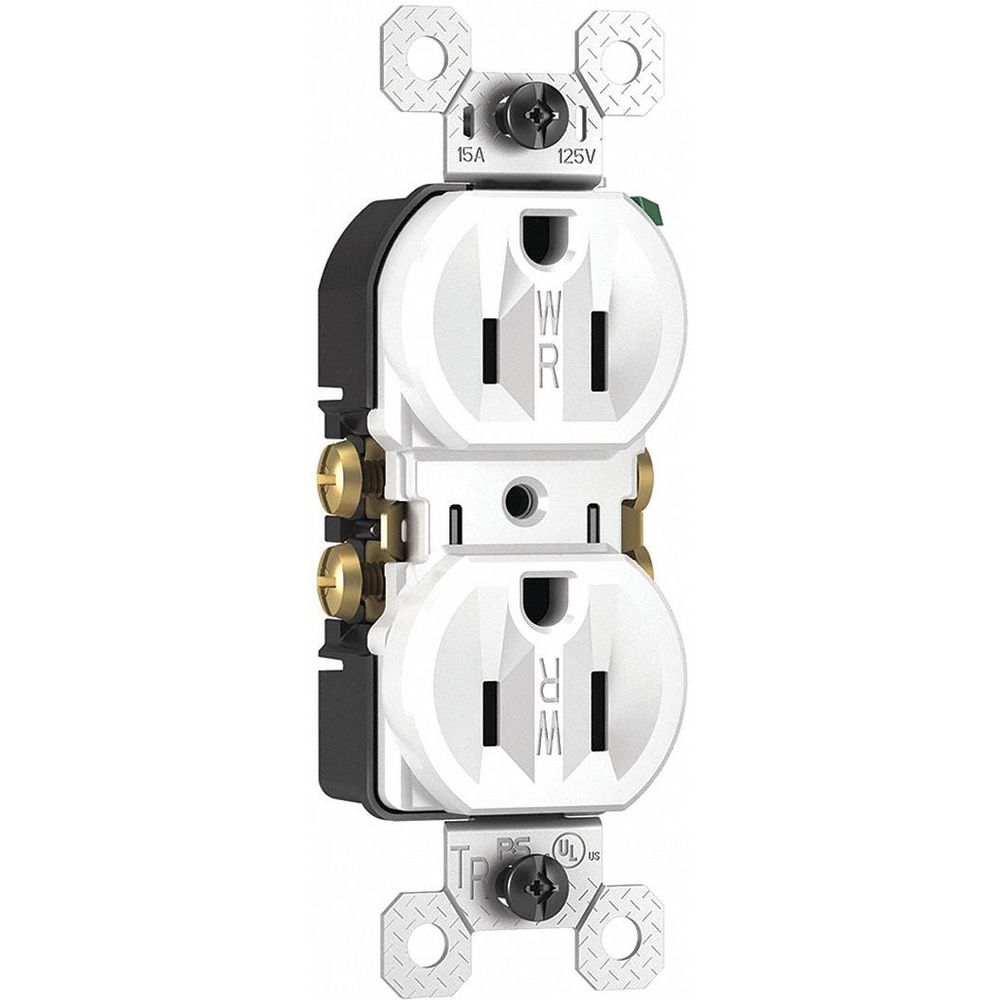

| Item | Receptacle |
| Application Environment | Commercial |
| Color | White |
| Connection Orientation | Straight |
| Corrosion Resistant | Yes |
| Current Rating | 15A |
| Finish | Matte |
| Grounding | Grounded |
| Housing Color | White |
| Hp | 1/2 hp |
| Hp Rating | 1/2 hp |
| Material | Thermoplastic Polyester |
| Max. Wire Size | 4 AWG |
| Mounting Type | Flush |
| Mounting Type - Plugs And Receptacles | Flush |
| Nema Plug Configuration | 5-15R |
| No. Of Gangs | 1 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Outlet Type | Standard Duplex |
| Outlet Type - Plugs And Receptacles | Standard Duplex |
| Phase | 1 |
| Power Indicator | No |
| Receptacle Type | Duplex |
| Resistance Properties | Tamper Resistant, Weather Resistant |
| Special Features | Corrosion Resistant |
| Surge Protection | No |
| Surge Suppression | No |
| Tamper Resistant | No |
| Type | Straight Blade |
| Weather Resistant | Yes |
| Wire Size | 4 AWG |
| Wiring Method | Back, Side |
| Grade | General Use |
| Horsepower Rating | 1/2 hp |
| Housing Material | Thermoplastic Polyester |
| Maximum Wire Size | 4 AWG |
| Mount Type | Flush |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Gangs | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Special Resistance | Tamper Resistant, Weather Resistant |
| Standards | CULUS LISTED, UL 498 |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Ship weight (kg) | 0.05 |
| Country of Origin | MX |
