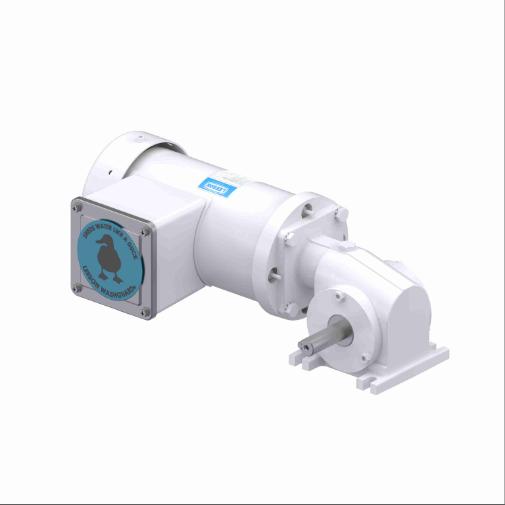

LEESON M1145147.00 CM38T17FZ23A Right Angle Gearmotor, 0.38 HP, 3 Phase, 60 Hz, 190V, 172 RPM
Get it by Tuesday, Jun 17
€1,273.22 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | AC Gearmotor |
| Code | G |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 38 |
| Full Load Amps | 1.6/1.4-1.3A |
| Insulation Class | Class F4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | M1307027.01 |
| Phase | 3 |
| Rotation | Reconn |
| Rpm | 172/143 RPM |
| Series | 13 |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Type | Right Angle |
| Type | TF |
| Base To Center Of Shaft | 1.67" |
| Bearing Type | Ball |
| Brake Type | None |
| Capacitor Required | Yes |
| Features | Ball Bearings Used In Gear Housing, Hardened Worm-Type Gearing Used, Interior Components Protected Against Corrosion, O-Rings And Gaskets Used For Sealing, Output Shafts Have Needle Bearings For High Load Capacities, Sealed Output Shafts, Shaft Material Coated With Teflon/Ceramic Plating, UL Listed And CSA Certified, White Epoxy Painted Motors |
| Frequency | 60 Hz |
| Full Load Current | 1.4-1.3A |
| Gear Ratio | 10:1 |
| Housing Material Finish | White Epoxy |
| Input Horsepower | 0.375 hp |
| Keyway Depth | 1" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Length Less Shaft | 11.04" |
| Lubrication | Oil Bath |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 172 RPM |
| Maximum Torque | 105 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Type | Horizontal |
| Mounting Orientation | Horizontal |
| Nameplate Speed | 172 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230V AC |
| Output Direction | Right Hand |
| Output Shaft Diameter | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 5.19" |
| Overall Length | 12.8" |
| Overall Width | 6.68" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Shaft Orientation | Right Angle |
| Standards | CSA, UL |
| Starting Torque | 105 lbs.-in. |
| Thermal Protection | None |
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
