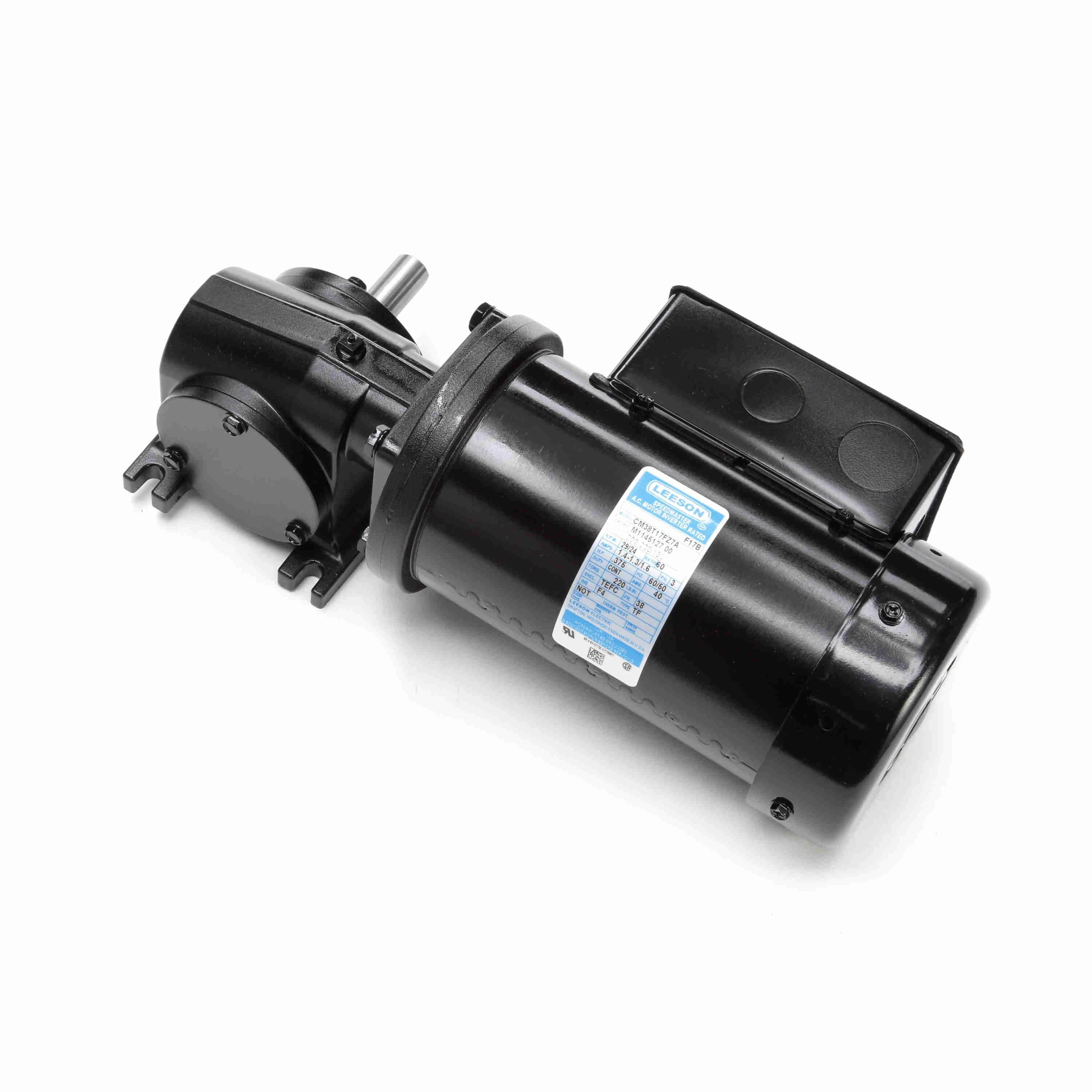

LEESON M1145127.00 CM38T17FZ7 / CM38T17FZ7A Right Angle Gearmotor, 0.38 HP, 3 Phase, 60 Hz, 190V, 29 RPM
Get it by Tuesday, Jun 17
€1,124.48 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | AC Gearmotor |
| Bearing Type | Gearbox: Heavy Duty, Needle Roller. Motor: Heavy Duty Ball |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Finish | Enamel |
| Frame | 38 |
| Full Load Amps | 1.3A |
| Gear Case Material | Die Cast Aluminum |
| Gear Material | Bronze, Steel |
| Gear Ratio | 60:1 |
| Gear Type | Worm Wheel |
| Gears | Hardened Steel Worm, Bronze Worm Wheel |
| Housing Material | Rolled Steel |
| Input Hp | 3/8 hp |
| Insulation Class | Class F4 |
| Keyway Size | 0.18" x 1" |
| Length Less Shaft | 12.31" |
| Lubrication | Permanent Heavy Duty Gear Oil |
| Max. Ambient Temp. | 40°C |
| Mounting | All Position Except Shaft Up |
| Mounting Orientation | All Except Shaft Up |
| Nameplate Rpm | 29 RPM |
| No Load Rpm | 30 RPM |
| Overhung Load | 235 lbs. |
| Phase | 3 |
| Rotation | Reversible |
| Rpm Range | 16-30 RPM |
| Seals | Heavy Duty, Single Lip, Spring Loaded |
| Service Factor | 1 |
| Shaft Orientation | Right Angle |
| Thermal Protection | None |
| Application | Inverter Duty |
| Brake Type | None |
| Frequency | 60 Hz |
| Full Load Current | 1.4-1.3A |
| Housing Material Finish | Black High Gloss Enamel |
| Input Horsepower | 0.375 hp |
| Inverter Rated | Yes |
| Keyway Type | 0.18 sq. in. x 1" |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 29 RPM |
| Maximum Torque | 220 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 38 |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Hole Center-to-center Length | 3" |
| Mount Hole Center-to-center Width | 3.25" |
| Mount Type | Horizontal or Vertical Shaft Down |
| Nameplate Speed | 29 RPM |
| No Load Speed | 30 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 203-230V AC |
| Output Direction | Right Hand |
| Output Shaft Diameter | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 5 1/5" |
| Overall Length | 12.31" |
| Overall Width | 5.81" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Seal Type | Heavy Duty, Single Lip, Spring Loaded |
| Standards | CE Y, CSA Y, UL |
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| HS code | 8501514020 |
| Country of Origin | US |
| Product | Model | Gear Ratio | Max. Torque | Nameplate Rpm | No Load Rpm | Rpm Range | Price | |
|---|---|---|---|---|---|---|---|---|
 |
M1145130.00 | 10:1 | 105 in.-lb. | 172 | 179 | 151 to 200 | €1,124.48 |
