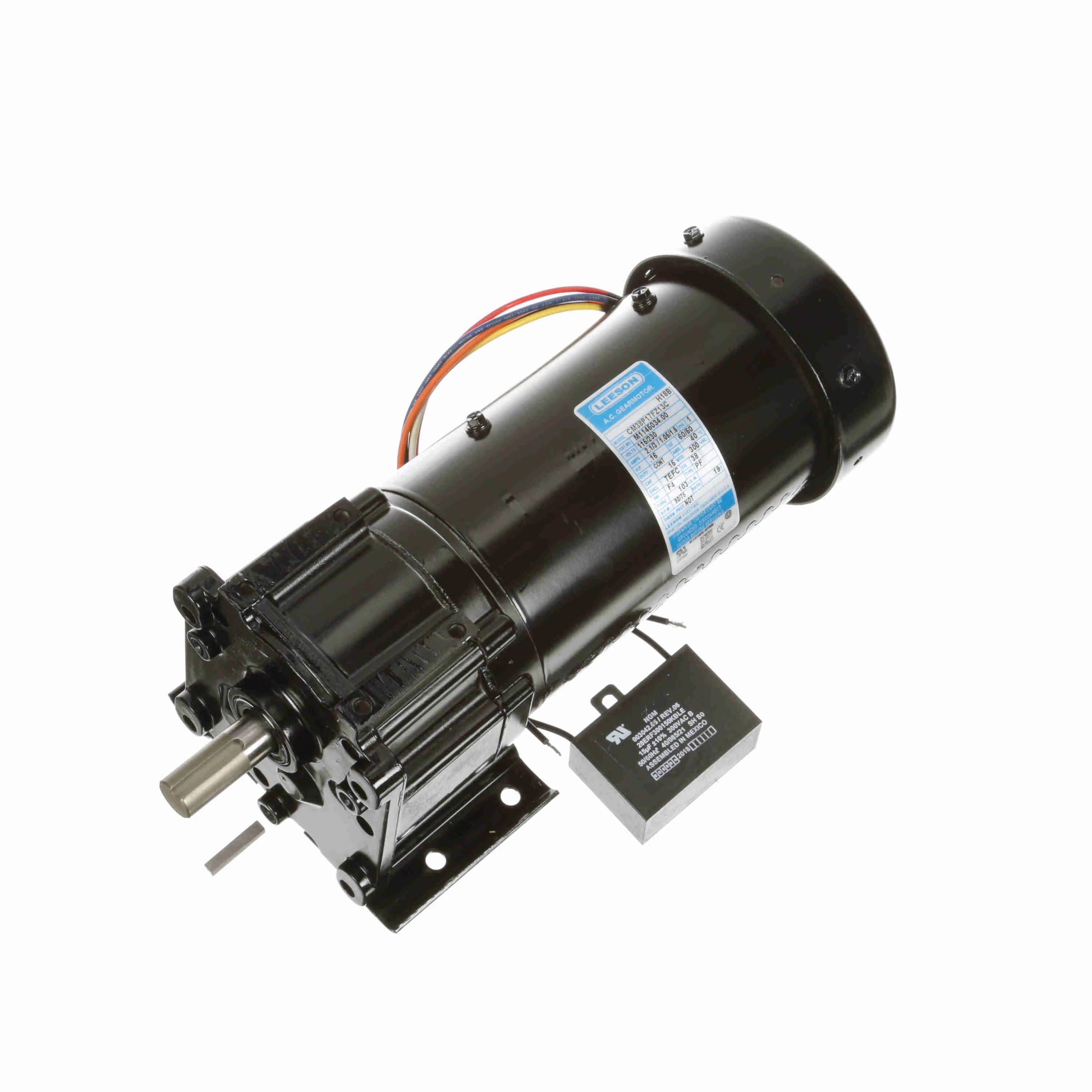

LEESON M1145034.00 CM38P17FZ13C Parallel Shaft Gearmotor, 0.16 HP, 1 Phase, 60 Hz, 115V, 90 RPM
Get it by Wednesday, Jun 18
€1,057.40 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | AC Gearmotor |
| Code | D |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 38 |
| Full Load Amps | 3/1.5/2.1/1.05A |
| Insulation Class | Class F4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | M1307027.01 |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 90/75 RPM |
| Series | P240 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Type | Parallel |
| Type | PF |
| Application | Power Transmission |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Features | Permanent Split Capacitor Design Rated For 115/230VAC 60/50 HZ Input. Precision Machined In-Line Steel Gears. First Stage Steel Helical Gear Followed By Spur-Type Gears. Lubrication Is Permanent Semi-Fluid Grease, Reducing Possibility Of Leakage. Output Shafts Have Needle Bearings For High Load Capacities. Shafts Are Hardened Steel. Optional Conduit Box Available |
| Frequency | 50/60 Hz |
| Full Load Current | 2.1/1.1A |
| Gear Material | Steel |
| Gear Ratio | 19:1 |
| Gear Type | Helical |
| Includes Capacitor | Capacitor Included |
| Input Horsepower | 0.167 hp |
| Keyway Depth | 1 1/16" |
| Keyway Width | 15/79" |
| Length Less Shaft | 10.63" |
| Lubrication | Semi-Fluid Grease |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 90 RPM |
| Maximum Torque | 103 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 1.5" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Horizontal or Vertical Shaft Down |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Nameplate Speed | 90 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Direction | Left Hand |
| Output Shaft Diameter | 5/8" |
| Output Shaft Length | 1 1/2" |
| Output Shaft Type | Hollow |
| Overall Height | 5.13" |
| Overall Length | 12.13" |
| Overall Width | 5.63" |
| Overhung Load Capacity | 237 lbs.-ft. |
| Shaft Orientation | Inline |
| Standards | CE, CSA, UL |
| Thermal Protection | None |
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
| Product | Model | Assembly | Enclosure | Full Load Amps | Rpm | Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
M1145023.00 | M1040400 | TENV | 1.5/.75 / 1/.5 | 15/13 | Pn | 115/230 / 115/230 | €1,063.90 | |
 |
M1145024.00 | M1040400 | TENV | 1.5/.75 / 1/.5 | 30/25 | Pn | 115/230 / 115/230 | €964.36 | |
 |
M1145027.00 | M1040400 | TENV | 1.5/.75 / 1/.5 | 97/80 | Pn | 115/230 / 115/230 | €964.36 | |
 |
M1145029.00 | M1040400 | TENV | 1.5/.75 / 1/.5 | 8/7 | Pn | 115/230 / 115/230 | €1,063.90 | |
 |
M1145030.00 | M1040419 | TEFC | 3/1.5 / 2.1/1.05 | 16/13 | PF | 115/230 / 115/230 | €1,153.34 | |
 |
M1145031.00 | M1040419 | TEFC | 3/1.5 / 2.1/1.05 | 30/25 | PF | 115/230 / 115/230 | €1,153.34 | |
 |
M1145032.00 | M1040419 | TEFC | 2.8/1.4 / 2/1 | 40/33 | PF | 110/220 / 115/230 | €1,153.34 |
