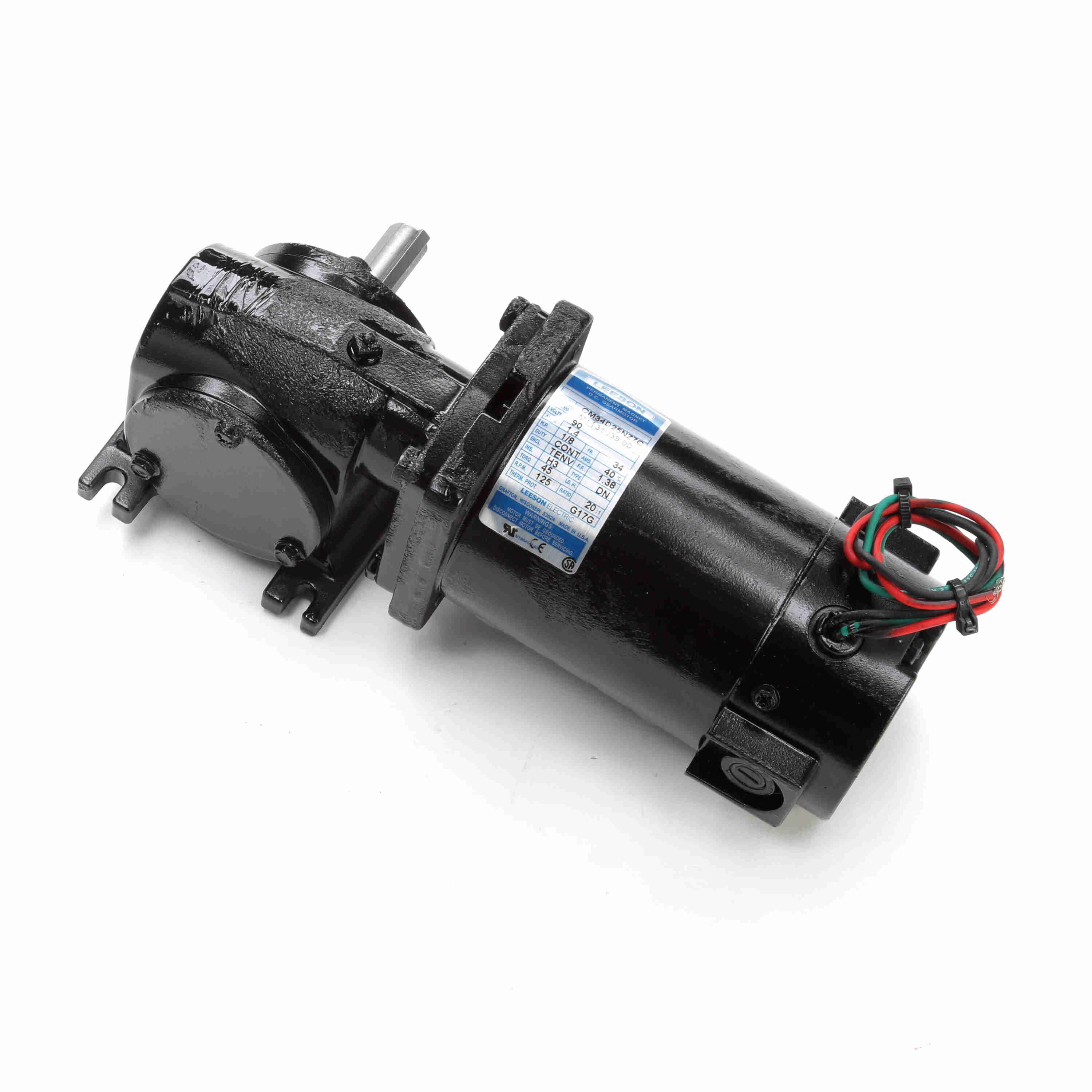

LEESON M1135039.00 CM34D25NZ7C Right Angle Gearmotor, 0.13 HP, 90V, 125 RPM
Get it by Tuesday, Jun 17
€1,051.03 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | DC Gearmotor |
| Base To Center Of Shaft | 1.67" |
| Efficiency | 31.5% |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Full Load Amps | 1.4A |
| Gear Ratio | 20:1 |
| Input Hp | 1/8 hp |
| Keyway Depth | 1 1/4" |
| Keyway Length | 1 1/2" |
| Keyway Type | Square |
| Keyway Width | 0.188" |
| Length Less Shaft | 8 22/25" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 125 RPM |
| Max. Torque | 45 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Type | Permanent Magnet DC |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Rpm | 125 RPM |
| Operating Voltage | 90V DC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1.812" |
| Overall Height | 6.61" |
| Overall Length | 10 16/25" |
| Overall Width | 4.09" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Orientation | Right Angle |
| Starting Torque | 45 lbs.-in. |
| Full Load Current | 1.4A |
| Input Horsepower | 1/8 hp |
| Maximum Ambient Temperature | 40°C |
| Maximum Output Speed | 125 RPM |
| Maximum Torque | 45 lbs.-in. |
| Motor Insulation Class | Class H |
| Mount Type | Special |
| Nameplate Speed | 125 RPM |
| Output Shaft Diameter | 5/8" |
| Standards | CE, CSA, UL |
| Thermal Protection | None |
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
