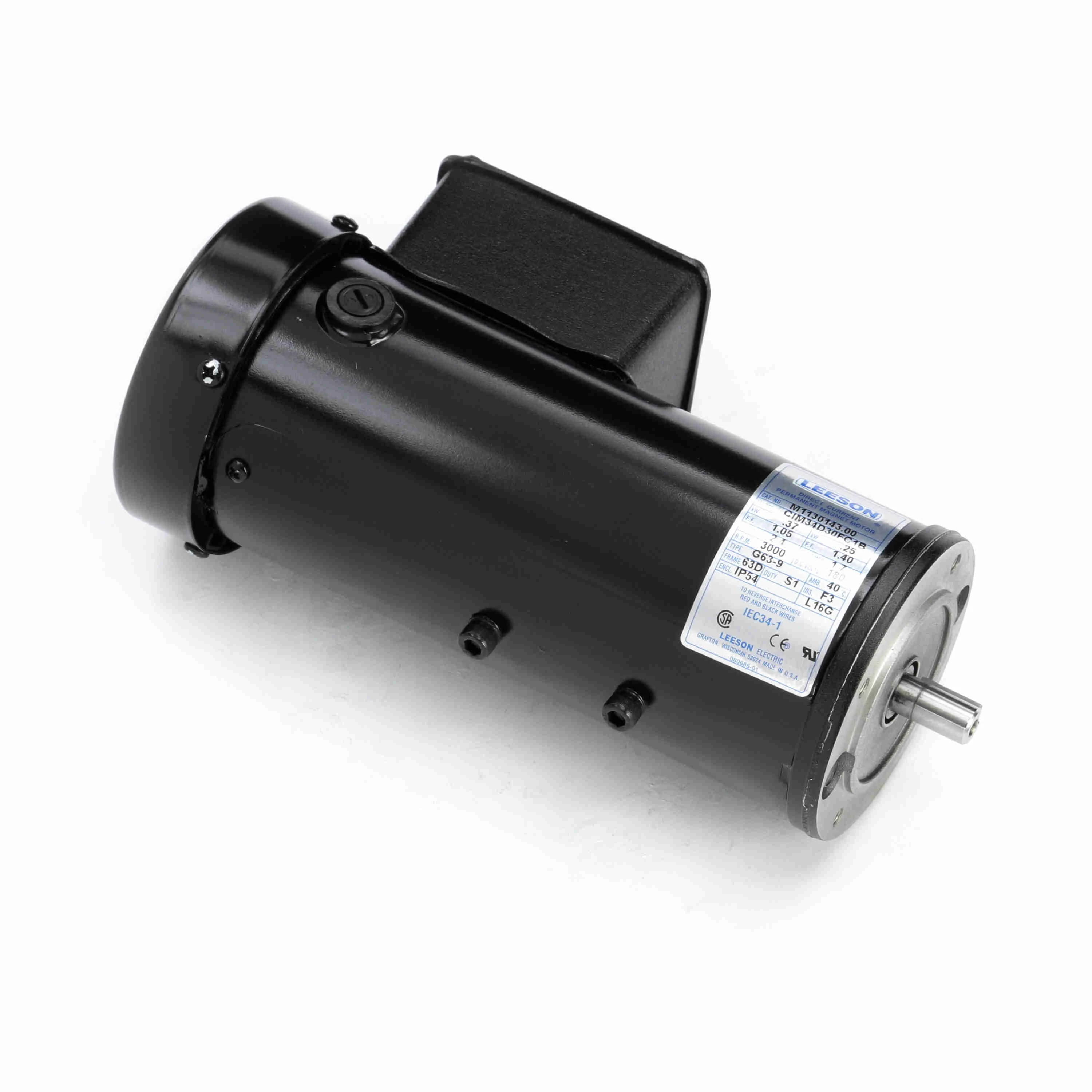

LEESON M1130143.00 CIM34D30FC1 / CIM34D30FC1B Metric Motor, 180V, 3000 RPM
Get it by Monday, Jun 16
€546.96 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Metric Motor |
| Amps | 2.4A |
| Assembly | M1040295 |
| Duty Cycle | Continuous |
| Form Factor | 1.05 |
| Frame | 63D |
| Grease Type | Polyrex EM |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Shaft Rotation | Reconn |
| Mounting Type | B14 |
| Nameplate Rpm | 3000 RPM |
| Nominal Efficiency | 75.8% |
| Packaging | M1307020.02 |
| Power | 0.37 kW |
| Service Factor | 1 |
| Shaft Dia. | 11 mm |
| Torque | 112 oz.-in. |
| Type | G63-9 |
| Voltage | 180V |
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 18.42 |
| Ship length (cm) | 30.81 |
| Ship width (cm) | 19.38 |
| Country of Origin | US |
| Product | Model | Amps | Assembly | Frame | Insulation Class | kW | RPM | Shaft Dia. | Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1130139.00 | 1.7 | M1040295 | 63D | H | 0.25 | 1800 | 11 MM | 135 OZ-IN | €669.97 | |
 |
M1130141.00 | 1.2 | M1040885 | 56D | F | 0.18 | 3000 | 9 MM | 54.1 OZ-IN | €571.89 | |
 |
M1130142.00 | 1.7 | M1040297 | 63D | F | 0.25 | 3000 | 11 MM | 81.1 OZ-IN | €576.35 |
