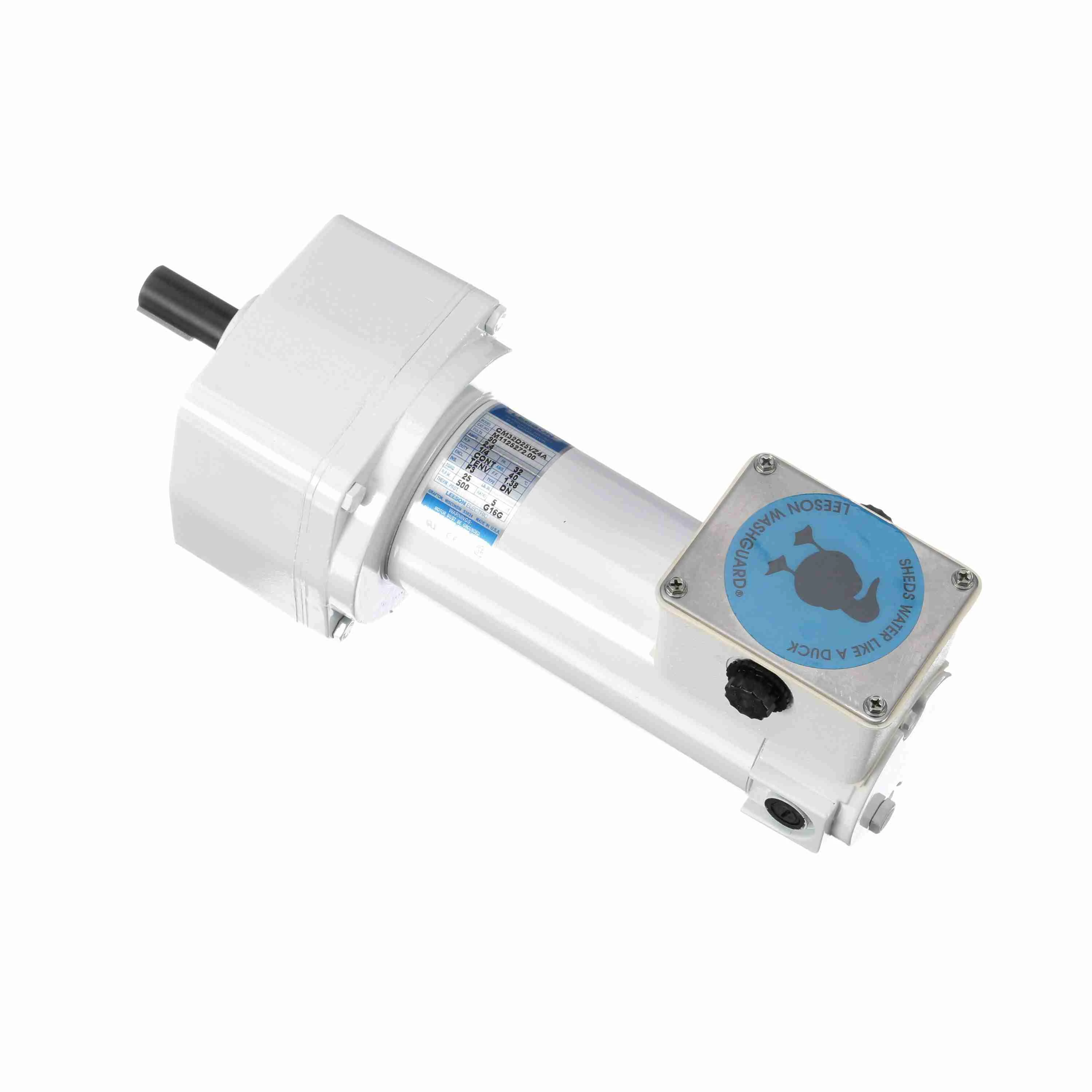

LEESON M1125272.00 CM32D25VZ4A Parallel Shaft Gearmotor, 0.25 HP, 90V, 500 RPM
Get it by Tuesday, Jun 17
€930.91 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Parallel |
| Base To Center Of Shaft | 4" |
| Efficiency | 67.9% |
| Features | Agma Class 9 Standard, Rugged Die Cast Aluminum Gear Housing |
| Full Load Amps | 2.4A |
| Gear Ratio | 5:1 |
| Input Hp | 1/4 hp |
| Keyway Depth | 0.188" |
| Keyway Length | 1 1/8" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Length Less Shaft | 11 21/25" |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 500 RPM |
| Max. Torque | 25 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 2 1/2" |
| Mount Hole Center-to-center Width | 5" |
| Mounting Orientation | Horizontal Vertical With Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 500 RPM |
| Operating Voltage | 90V DC |
| Output Shaft Dia. | 3/4" |
| Output Shaft Length | 2" |
| Overall Height | 6.7" |
| Overall Length | 13 21/25" |
| Overall Width | 6" |
| Overhung Load Capacity | 194 lbs.-ft. |
| Rotation | CW/CCW |
| Seal Type | Heavy Duty Industrial |
| Service Factor | 1 |
| Shaft Orientation | Parallel |
| Starting Torque | 25 lbs.-in. |
| Full Load Current | 2.4A |
| Input Horsepower | 1/4 hp |
| Maximum Ambient Temperature | 40°C |
| Maximum Output Speed | 500 RPM |
| Maximum Torque | 25 lbs.-in. |
| Motor Insulation Class | Class F |
| Mount Type | Special |
| Nameplate Speed | 500 RPM |
| Output Shaft Diameter | 3/4" |
| Standards | CE, CSA, UL |
| Thermal Protection | None |
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
