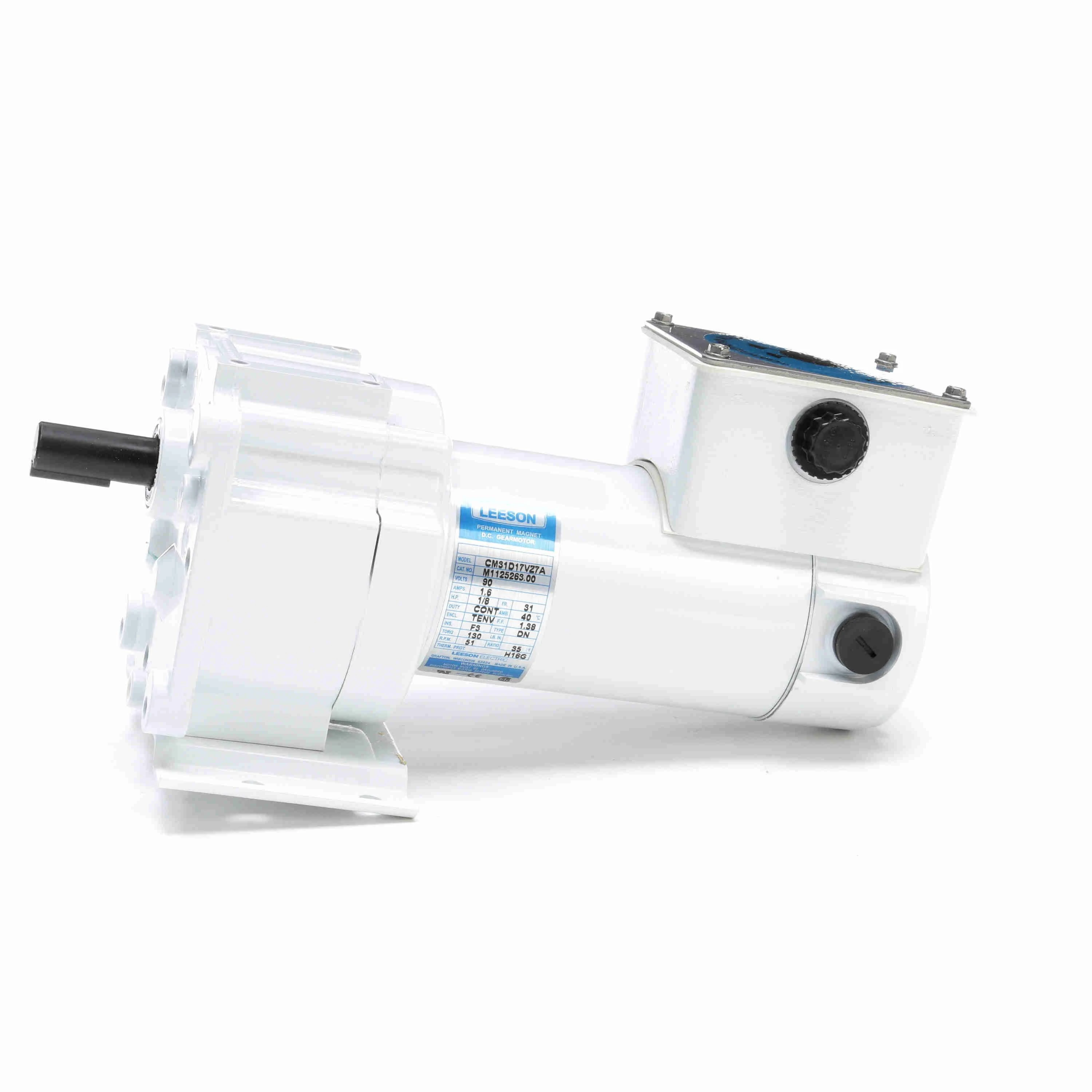

LEESON M1125263.00 CM31D17VZ7A Parallel Shaft Gearmotor, 0.13 HP, 90V, 51 RPM
Get it by Wednesday, Jun 18
€847.47 /unit
Add To Cart
Request a Quote
Payment
Get it by Wednesday, Jun 18
Payment
| Item | Parallel |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Type | Needle |
| Efficiency | 59.9% |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Full Load Amps | 1.6A |
| Gear Material | Steel |
| Gear Ratio | 35:1 |
| Input Hp | 1/8 hp |
| Keyway Depth | 0.188" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Length Less Shaft | 10 11/25" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 51 RPM |
| Max. Torque | 220 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mounting Orientation | Horizontal Vertical With Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 51 RPM |
| Operating Voltage | 90V DC |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.35" |
| Overall Length | 11.94" |
| Overall Width | 4 2/25" |
| Overhung Load Capacity | 227 lbs.-ft. |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Orientation | Parallel |
| Starting Torque | 130 lbs.-in. |
| Full Load Current | 1.6A |
| Input Horsepower | 1/8 hp |
| Maximum Ambient Temperature | 40°C |
| Maximum Output Speed | 51 RPM |
| Maximum Torque | 220 lbs.-in. |
| Motor Insulation Class | Class F |
| Mount Type | Special |
| Nameplate Speed | 51 RPM |
| Output Shaft Diameter | 5/8" |
| Standards | CE, CSA, UL |
| Thermal Protection | None |
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
