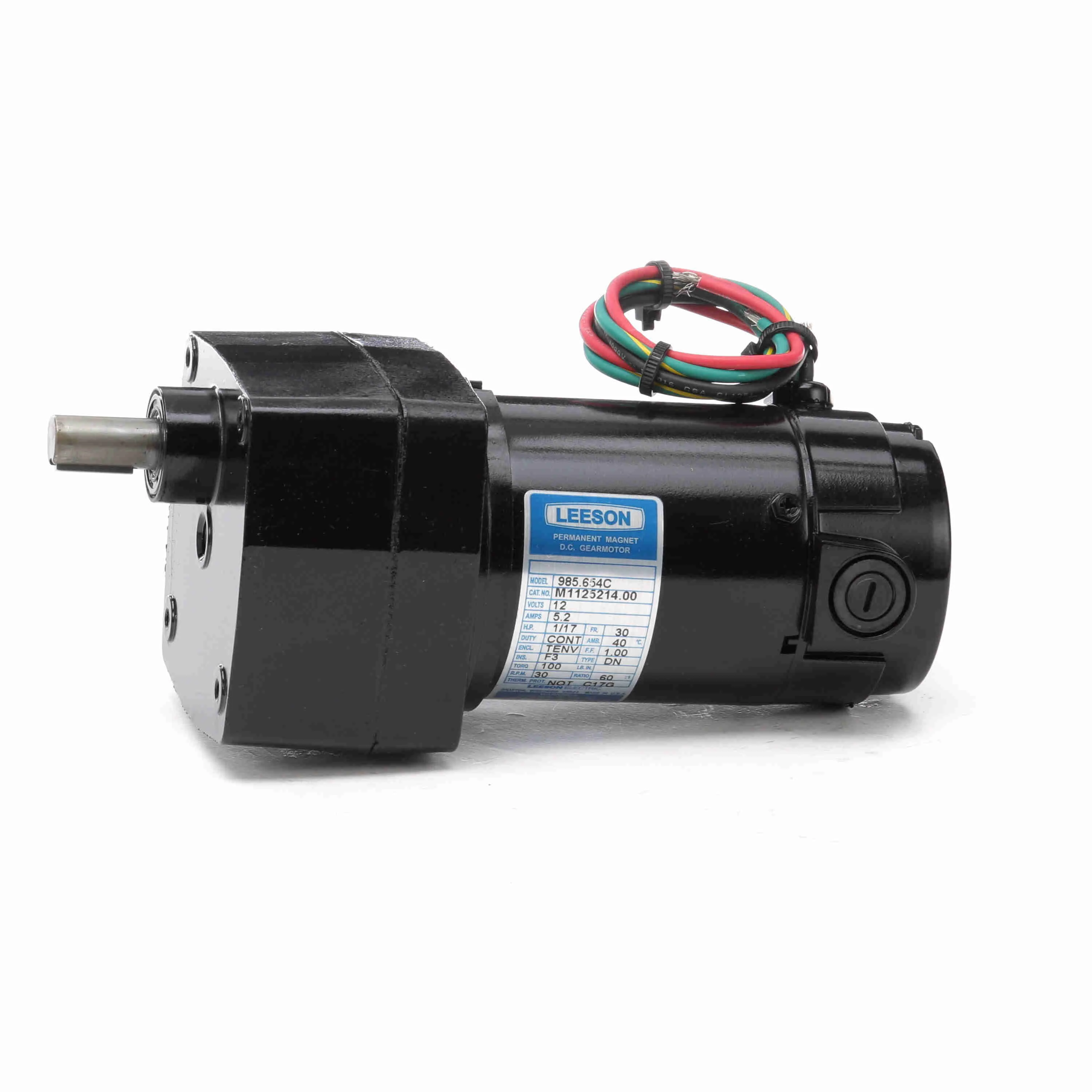

LEESON M1125214.00 985.654C Parallel Shaft Gearmotor, 0.06 HP, 12V, 30 RPM
Get it by Monday, Jun 16
€958.47 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Parallel |
| Base To Center Of Shaft | 3" |
| Bearing Type | Needle |
| Efficiency | 59.4% |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Full Load Amps | 5.2A |
| Gear Material | Steel |
| Gear Ratio | 60:1 |
| Input Hp | 59/1000 hp |
| Keyway Depth | 3/4" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Length Less Shaft | 7.18" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 30 RPM |
| Max. Torque | 100 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 22/25" |
| Mounting Orientation | Horizontal Vertical With Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 30 RPM |
| Operating Voltage | 12V DC |
| Output Shaft Dia. | 1/2" |
| Output Shaft Length | 1" |
| Overall Height | 5.35" |
| Overall Length | 8.74" |
| Overall Width | 3 3/4" |
| Overhung Load Capacity | 115 lbs.-ft. |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Orientation | Parallel |
| Starting Torque | 100 lbs.-in. |
| Full Load Current | 5.2A |
| Input Horsepower | 1/17 hp |
| Maximum Ambient Temperature | 40°C |
| Maximum Output Speed | 30 RPM |
| Maximum Torque | 100 lbs.-in. |
| Motor Insulation Class | Class F |
| Mount Type | Special |
| Nameplate Speed | 30 RPM |
| Output Shaft Diameter | 1/2" |
| Standards | CSA, UL |
| Thermal Protection | None |
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
