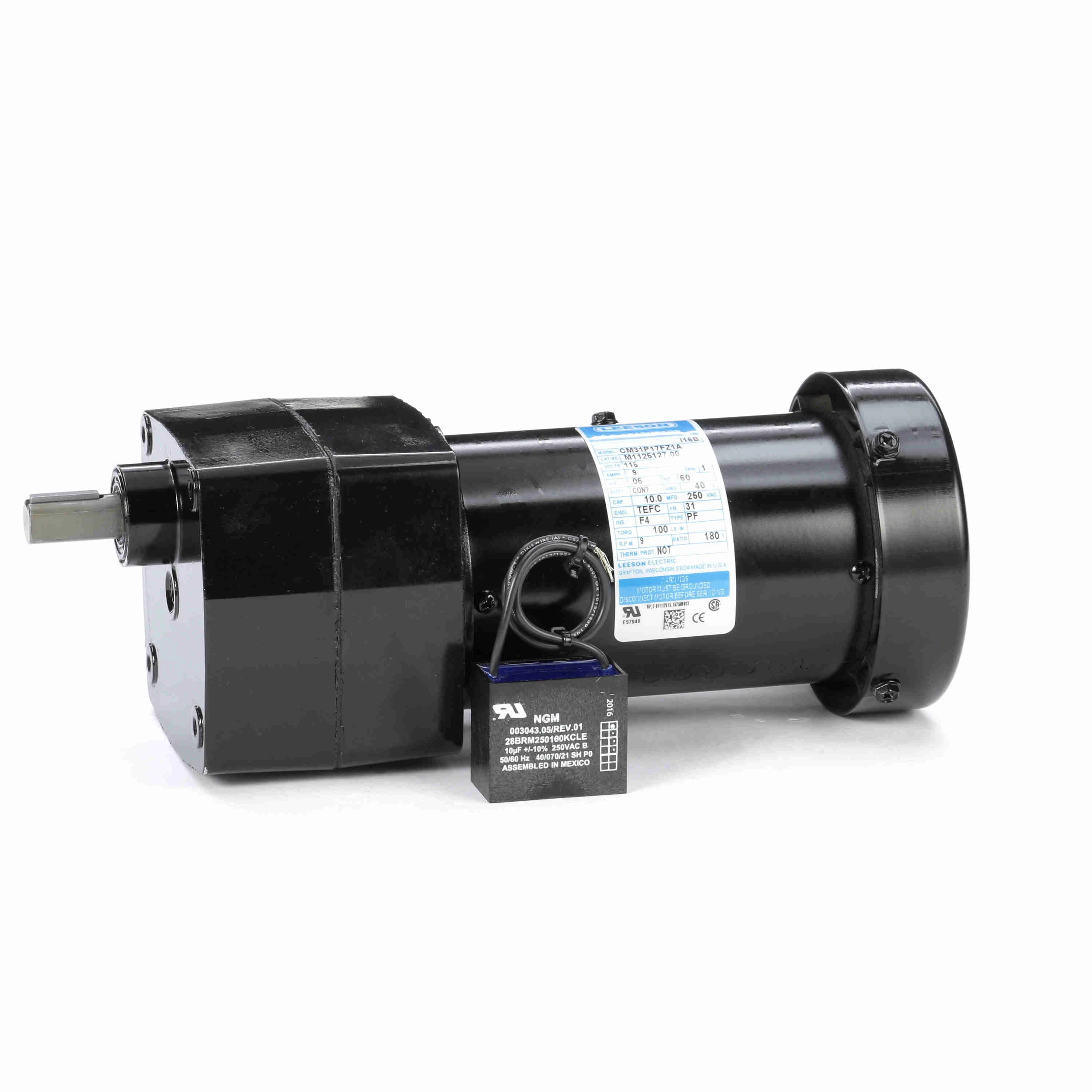

LEESON M1125127.00 CM31P17FZ1A Parallel Shaft Gearmotor, 0.06 HP, 1 Phase, 60 Hz, 115V, 9 RPM
Get it by Tuesday, Jun 17
€1,144.44 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | AC Gearmotor |
| Code | C |
| Duty Rating | Continuous |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Frame | 31 |
| Full Load Amps | 0.9A |
| Insulation Class | Class F4 |
| Max. Ambient Temp. | 40°C |
| Mounting | Special |
| Packaging | M1307027.01 |
| Phase | 1 |
| Rotation | Reconn |
| Rpm | 9 RPM |
| Series | PZ Series |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Type | Parallel |
| Type | PF |
| Application | Power Transmission |
| Bearing Type | Needle |
| Capacitor Required | Yes |
| Features | Permanent Split Capacitor Design Rated For 115VAC 60 HZ Input. Precision Machined In-Line Steel Gears. First Stage Steel Helical Gear Followed By Spur-Type Gears. Lubrication Is Permanent Semi-Fluid Grease, Reducing Possibility Of Leakage. Output Shafts Have Needle Bearings For High Load Capacities. Shafts Are Hardened steelOptional Conduit Box And PZ Gearmotor Mounting Bracket Available |
| Frequency | 60 Hz |
| Full Load Current | 0.9A |
| Gear Material | Steel |
| Gear Ratio | 180:1 |
| Gear Type | Helical |
| Includes Capacitor | Capacitor Included |
| Input Horsepower | 0.067 hp |
| Keyway Depth | 3/4" |
| Keyway Width | 1/8" |
| Length Less Shaft | 8.86" |
| Lubrication | Semi-Fluid Grease |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 9 RPM |
| Maximum Torque | 100 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Split Capacitor |
| Mount Hole Center-to-center Length | 1.88" |
| Mount Hole Center-to-center Width | 3.75" |
| Mount Type | Horizontal or Vertical Shaft Down |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Nameplate Speed | 9 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 115V AC |
| Output Direction | Left Hand |
| Output Shaft Diameter | 1/2" |
| Output Shaft Length | 1" |
| Output Shaft Type | Hollow |
| Overall Height | 3.97" |
| Overall Length | 10.42" |
| Overall Width | 5.3" |
| Overhung Load Capacity | 155 lbs.-ft. |
| Shaft Orientation | Inline |
| Standards | CE, CSA, UL |
| Thermal Protection | None |
| Ship weight (kg) | 4.5 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
| Product | Model | Assembly | Enclosure | Full Load Amps | Rpm | Service Factor | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
M1125050.00 | M1040366 | TENV | .4 | 1.9 | 1.0 | Pn | €1,174.73 | |
 |
M1125128.00 | M1040689 | TEFC | .9 | 19 | 1.0 | PF | €1,140.23 | |
 |
M1125129.00 | M1040689 | TEFC | .9 | 28 | 1.0 | PF | €1,024.95 | |
 |
M1125130.00 | M1040689 | TEFC | .9 | 57 | 1 | PF | €1,021.58 | |
 |
M1125131.00 | M1040689 | TEFC | .9 | 94 | 1.0 | PF | €1,020.74 | |
 |
M1125132.00 | M1040689 | TEFC | .9 | 142 | 1.0 | PF | €973.62 | |
 |
M1125133.00 | M1040689 | TEFC | .9 | 283 | 1.0 | PF | €971.09 |
