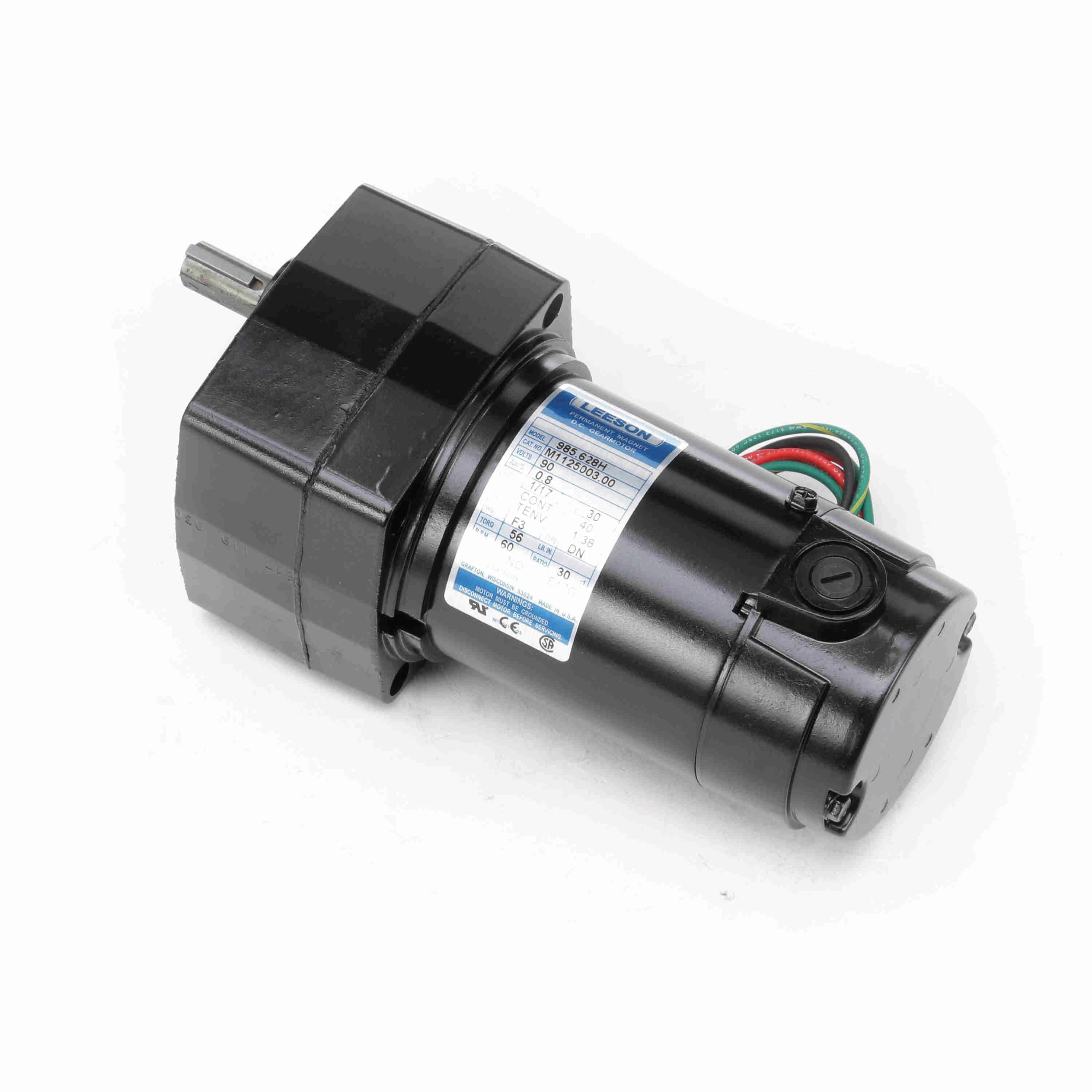

LEESON M1125003.00 985.628H Parallel Shaft Gearmotor, 0.06 HP, 90V, 60 RPM
Get it by Tuesday, Jun 17
€887.78 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Parallel |
| Base To Center Of Shaft | 3" |
| Bearing Type | Needle |
| Efficiency | 55.1% |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Full Load Amps | 0.8A |
| Gear Material | Steel |
| Gear Ratio | 30:1 |
| Input Hp | 59/1000 hp |
| Keyway Depth | 3/4" |
| Keyway Length | 3/4" |
| Keyway Type | Square |
| Keyway Width | 1/8" |
| Length Less Shaft | 7.18" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 60 RPM |
| Max. Torque | 56 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 22/25" |
| Mount Hole Center-to-center Width | 3 3/4" |
| Mounting Orientation | Horizontal Vertical With Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 60 RPM |
| Operating Voltage | 90V DC |
| Output Shaft Dia. | 1/2" |
| Output Shaft Length | 1" |
| Overall Height | 3.98" |
| Overall Length | 8.74" |
| Overall Width | 3 3/4" |
| Overhung Load Capacity | 171 lbs.-ft. |
| Rotation | CW/CCW |
| Service Factor | 1 |
| Shaft Orientation | Parallel |
| Starting Torque | 56 lbs.-in. |
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
