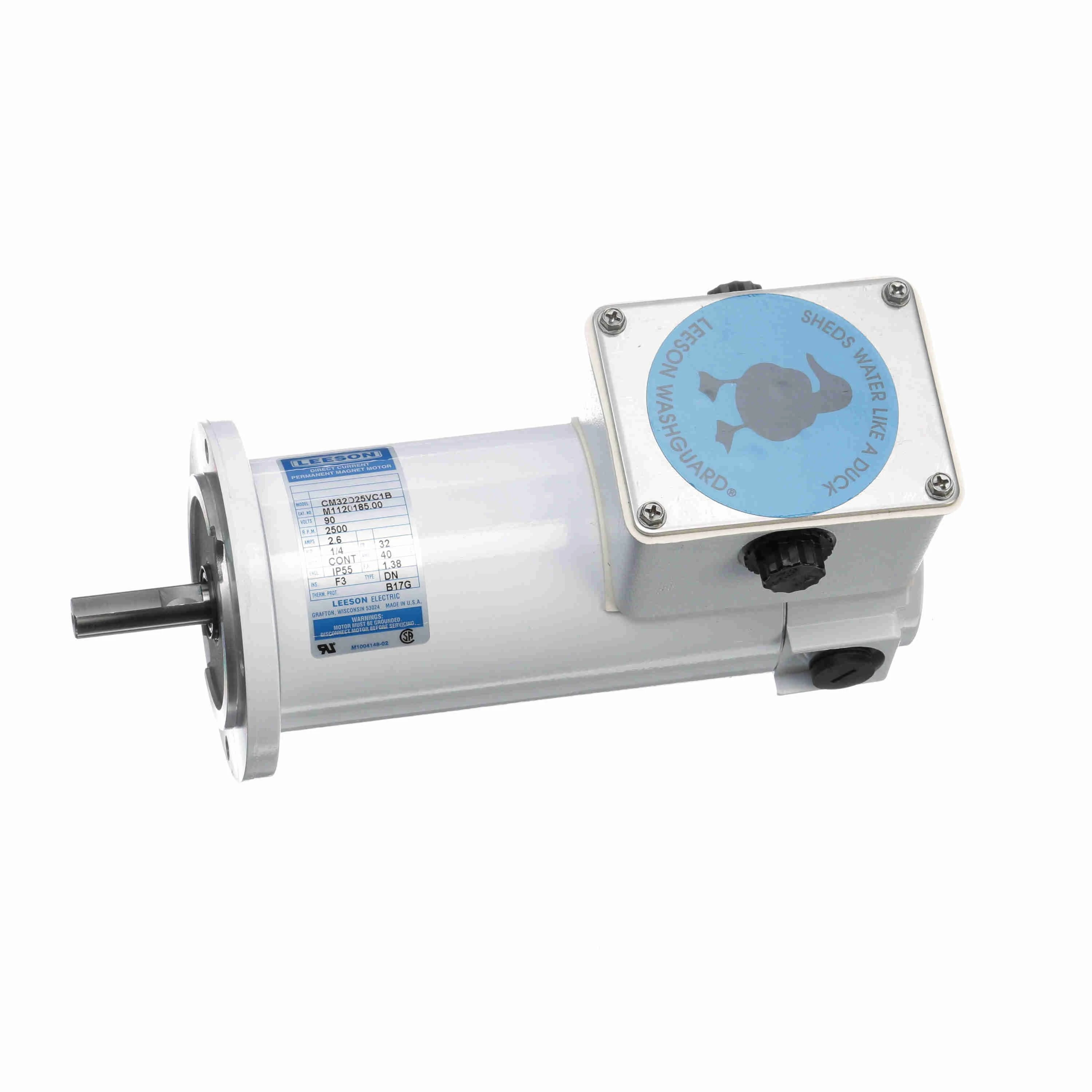

LEESON M1120185.00 CM32D25VC1 Washdown Motor | AJ2WVL CM32D25VC1

LEESON M1120185.00 CM32D25VC1 Washdown Motor

In Stock
Item: AJ2WVL Model: M1120185.00Cross Ref: CM32D25VC1

Get it by Jun 7, Friday

Not eligible for flat shipping. Flat shipping is available on order value €99,00 or more and aggregate weight below 10 pounds.

€716.78 /unit
Add To Cart
Request a Quote

Payment Methods

Delivery Partners

Product Specifications:

ItemWashdown Motor
Amps2.6
AssemblyM1041143
DutyCONT
Efficiency84.4%
EnclosureIP55
Form Factor1.38
Frame32
HP1/4
Insulation ClassF
LubricationPolyrex EM
Max. Ambient Temp.40
MountingC Face
PackagingM1307027.02
RotationRECONN
RPM2500
Service Factor1.0
Shaft Dia.1/2"
Torque101 OZ-IN
TypeDN
Voltage90

Shipping Info:

Ship weight (kg) 5.85
Ship height (cm)16.99
Ship length (cm)41.91
Ship width (cm)19.51

Product Details:

  • Bearing OPE: 6201-13
  • Bearing PE: 6201-13
  • Eff 100%: 84.4%
  • Nameplate: M100414802
  • Winding: MD3227
  • GROUP: 1 A
  • Sub Group: A
  • Paint: 305053.01
