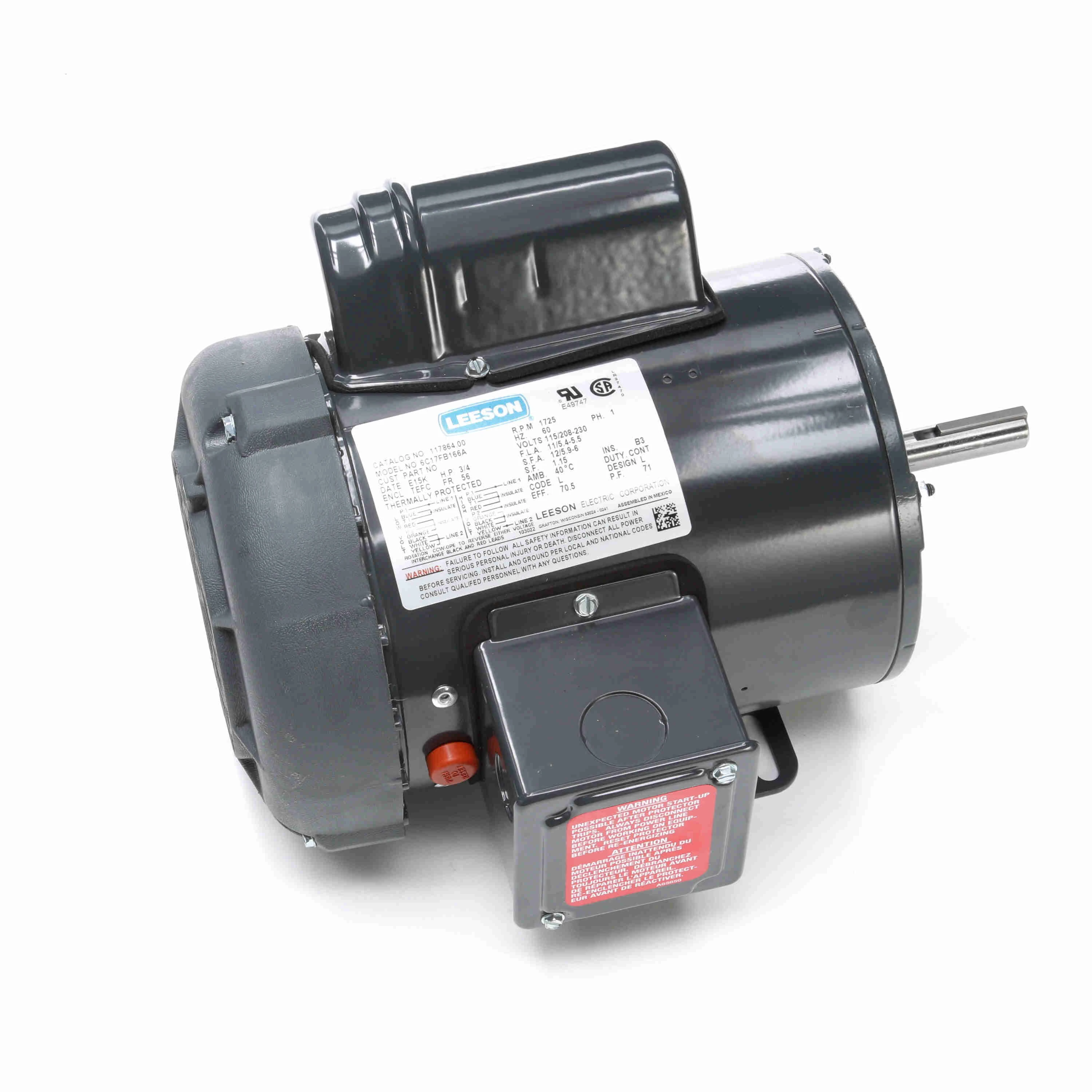

LEESON M009087.00 M009087.00A Agricultural Motor, 0.75 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Monday, Jun 16
€661.60 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 75% |
| Finish | Enamel |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 10/5A |
| Hp | 3/4 hp |
| Max. Ambient Temp. | 105°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| No. Of Speeds | 1 |
| Overall Length | 11 1/2" |
| Phase | 1 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 9 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Manual |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 75% |
| Standards | CSA (LR2025), UL (E49747) |
| Weight | 30 lbs. |
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 66.32 |
| Ship length (cm) | 29.21 |
| Ship width (cm) | 65.89 |
| Country of Origin | CN |
| Product | Model | Full Load Amps | HP | Nominal Efficiency | Overall Length | Price | |
|---|---|---|---|---|---|---|---|
 |
M009088.00 | 13.6/6.6-6.8A | 1 | 76% | 11 3/4" | €306.43 |
