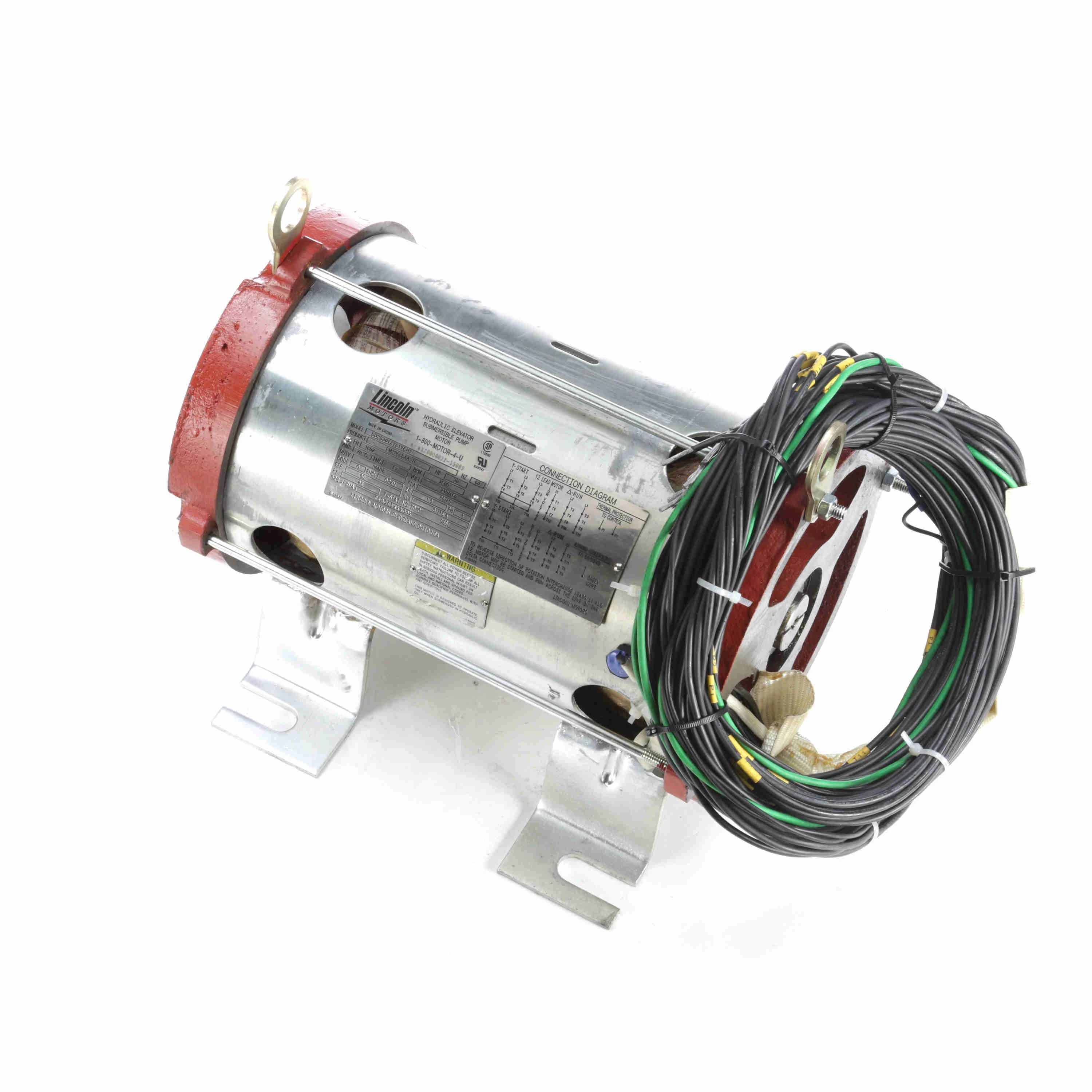

LEESON LM29666 SD2S30TZY61YEH3 Elevator Duty Motor, 30/25 HP, 3 Ph, 60 Hz, 230/460 and 230/460V, 3600 and 3600 RPM
Get it by Tuesday, Jun 17
€1,661.16 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Definite Purpose Motor |
| Ambient Temp. | 70°C |
| Code | G |
| Duty Cycle | 30 min. |
| Frame | 160Z |
| Frequency | 60 Hz |
| Full Load Amps | 80/40A |
| Grease Type | Polyrex EM |
| Hp | 30 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Open |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | G |
| Packaging | B |
| Phase | 3 |
| Power | 22.4 kW |
| Power Factor | 88 |
| Service Factor | 1 |
| Type | TDR |
| Voltage | 230/460V AC |
| Ship weight (kg) | 58.05 |
| Ship height (cm) | 40.64 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 34.29 |
| Country of Origin | CN |
| Product | Model | Enclosure | Full Load Amps | HP | Insulation Class | kW | Lubrication | Power Factor | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LM29656 | Open | 53 | 15 | F | 11.2 | Polyrex EM | 86 | 200 | €1,472.74 | |
 |
LM29657 | DP | 46 / 23 | 15 | F | 11.2 | Polyrex EM | 86 | 230 / 460 | €1,913.53 | |
 |
LM29658 | Open | 18.4 | 15 | F | 11.2 | Polyrex EM | 86 | 575 | €1,600.66 | |
 |
LM29659 | Open | 64.5 | 20 | F | 14.9 | Polyrex EM | - | 200 | €1,188.68 | |
 |
LM29660 | Open | 56 / 28 | 20 | F | 14.9 | Polyrex EM | 87.5 | 230 / 460 | €1,509.62 | |
 |
LM29663 | Open | 67 / 33.5 | 25 | F | 18.7 | Polyrex EM | 89 | 230 / 460 | €1,670.95 | |
 |
LM29664 | Open | 26.8 | 25 | F | 18.7 | Polyrex EM | 89 | 575 | €1,645.03 |
