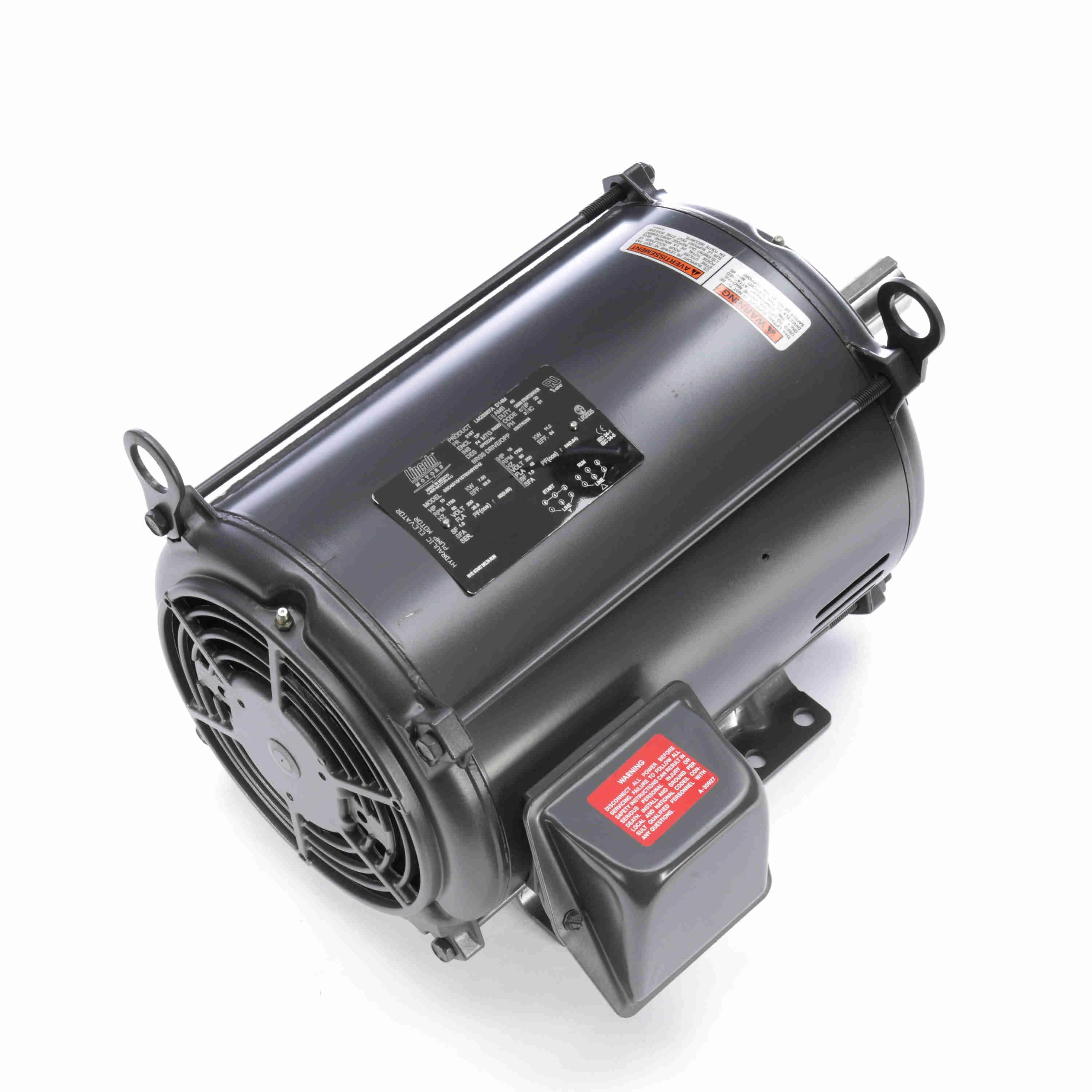

LEESON LM28867 SSD4S10/15T6006YEH2 Elevator Duty Motor, 10 and 15 HP, 3 Ph, 60 Hz, 200 and 200V, 1800 and 1800 RPM
Get it by Monday, Jun 16
€1,146.04 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Definite Purpose Motor |
| Ambient Temp. | 40°C |
| Code | C |
| Frame | 215T |
| Frequency | 50/60 Hz |
| Full Load Amps | 28.8/45A |
| Hp | 10 hp, 15 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B, C |
| Packaging | B |
| Phase | 3 |
| Power | 7.5 kW |
| Power Factor | 85 |
| Service Factor | 1 |
| Shaft Dia. | 1 3/8" |
| Type | TDR |
| Voltage | 200V AC |
| Ship weight (kg) | 57.6 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
| Product | Model | Design | Duty | Frame | Full Load Amps | HP | kW | Lubrication | Packaging | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LM28868 | B | 120/80 STARTS/HOUR | 215T | 25 / 12.5 | 10 / 15 | 7.5 / 11.2 | VERIFY | B | €1,146.04 | |
 |
LM28874 | VERIFY | 120/80 STARTS/HOUR | 254T | 38.5 / 19.2 | 15 / 20 | 11.2 / 14.9 | VERIFY | B | €1,661.73 | |
 |
LM28879 | VERIFY | 80/120 STARTS/HOUR | 256T | 60 / 73.5 | 20 / 25 | 14.9 / 18.7 | VERIFY | B | €1,818.06 | |
 |
LM28898 | VERIFY | 80/120 STARTS/HOUR | 324T | 130 / 65 | 50 / 40 | 37.3 / 29.8 | VERIFY | S | €11,287.57 | |
 |
LM29850 | B | 80/120 STARTS/HOUR | 284T | 70 / 84 | 25 / 30 | 18.7 / 22.4 | Polyrex EM | B | €2,608.99 | |
 |
LM29852 | VERIFY | 120/80 STARTS/HOUR | 286T | 83 / 112 | 30 / 40 | 22.4 / 30 | VERIFY | B | €3,026.15 | |
 |
LM29853 | VERIFY | 120/80 STARTS/HOUR | 286T | 72 / 36 | 30 / 40 | 22.4 / 30 | VERIFY | B | €3,026.15 |
