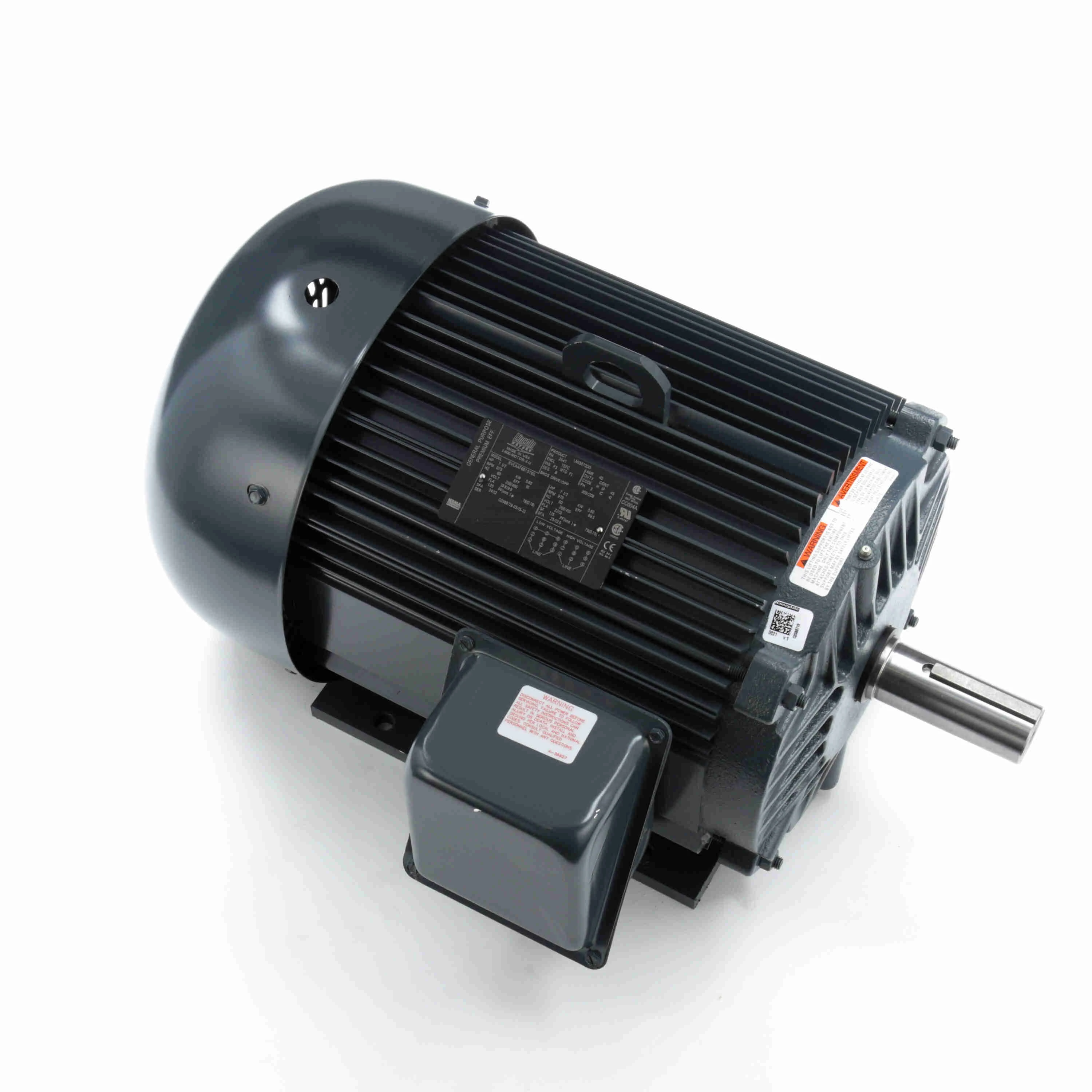

| Item | General Purpose Motor |
| Code | H |
| Design | B |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 254T |
| Full Load Amps | 19.8 / 9.9 |
| HP | 7.5 |
| Hz | 50/60 |
| Insulation Class | F |
| kW | 5.6 |
| Lubrication | VERIFY |
| Max. Ambient Temp. | 40 |
| Mounting | Rigid |
| Packaging | B |
| Phase | 3 |
| Power Factor | 78 / 79 |
| Rotation | REV |
| RPM | 1200 / 1000 |
| Service Factor | 1.25 / 1.15 |
| Type | TFL |
| Voltage | 230 / 460 |
| Ship weight (kg) | 94.05 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Product | Model | RPM | kW | Assembly | Frame | Full Load Amps | HP | Hz | Insulation Class | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
100905.00 | 3600 | .37 | LO100905 | 48 | 1.8 / 0.9 | 1/2 | 60 | B | €446.72 | |
 |
100961.00 | 1800 | .37 | LO100961 | 48 | 1.9-2 / 1 | 1/2 | 60 | B | €531.66 | |
 |
101647.00 | 1800 | 0.25 | LO101647 | 48 | 1.5-1.6 / .8 | 1/3 | 60 | B | €453.45 | |
 |
103020.00 | 1800 / 1500 | .37 | LO103020 | S56 | 1.8-1.8 / .9 | 1/2 | 50/60 | F | €643.50 | |
 |
114618.00 | 900 | .37 | - | 56 | 3 / 1.5 | 1/2 | 60 | F | €1,048.67 | |
 |
116739.00 | 1800 / 1500 | 0.56 | - | 56 | 2.4 / 1.2 | 3/4 | 50/60 | F | €674.05 | |
 |
116757.00 | 1800 / 1500 | 0.75 | - | 56H | 3.2-3.2 / 1.6 | 1 | 50/60 | F | - | RFQ
|
