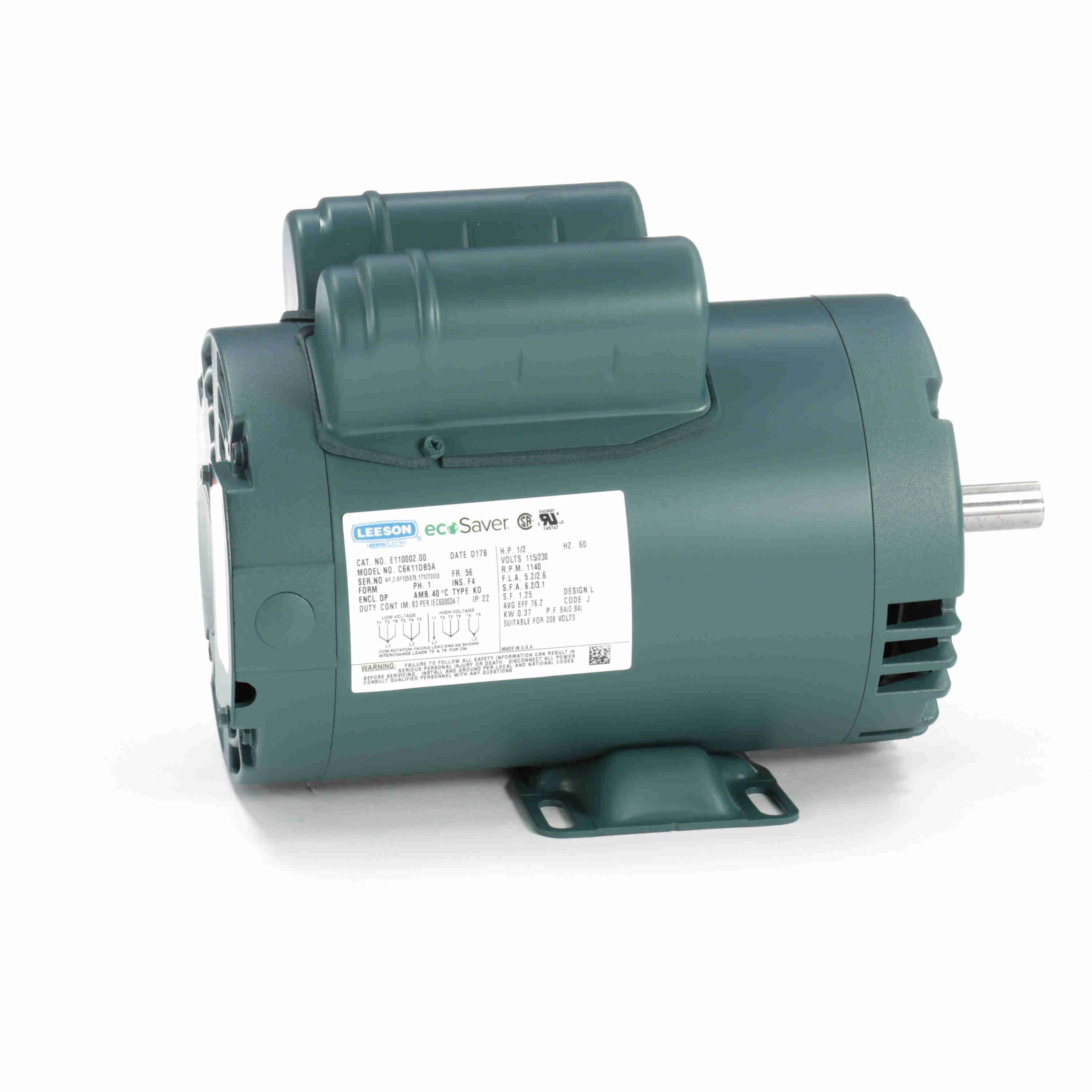

LEESON E110002.00 C6K11DB5A General Purpose Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Request a Quote
Payment
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | J |
| Duty Cycle | Continuous |
| Frame | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 5.2/2.6A |
| Grease Type | Polyrex EM |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Lubrication | Polyrex EM |
| Motor Enclosure Design | Dripproof |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1200 RPM |
| Nema Design | J, L |
| Output Kw | 0.37 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 84 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Type | KD |
| Voltage | 115/230V AC |
| Ship weight (kg) | 18.23 |
| Ship height (cm) | 20.65 |
| Ship length (cm) | 37.16 |
| Ship width (cm) | 28.58 |
| Country of Origin | US |
| Product | Model | Assembly | Design | Frame | Full Load Amps | HP | Insulation Class | kW | Lubrication | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
131530 | 180-006 | L | 184T | 33.8 / 16.9 | 3 | F | 2.24 | Polyrex EM | €999.79 | |
 |
131535 | 180-006 | L | 182T | 24.5 / 13-12.4 | 2 | F | 1.49 | Polyrex EM | €859.67 | |
 |
131560 | 180-006 | L | 184T | 23.2 | 5 | F | 3.7 | Polyrex EM | €890.25 | |
 |
131561 | 180-006 | L | 184T | 33.8 / 16.9 | 3 | F | 2.24 | Polyrex EM | €1,033.11 | |
 |
131616 | 180-008 | L | MX184T | 24-22 | 5 | F | 3.7 | Polyrex EM | €1,021.58 | |
 |
131636 | 180-008 | L | 182T | 28 / 15.2-14 | 3 | F | 2.24 | Polyrex EM | €928.24 | |
 |
E100006.00 | - | N | S56 | 3.8 / 1.9 | 1/3 | B | 0.25 | VERIFY | €498.41 |
