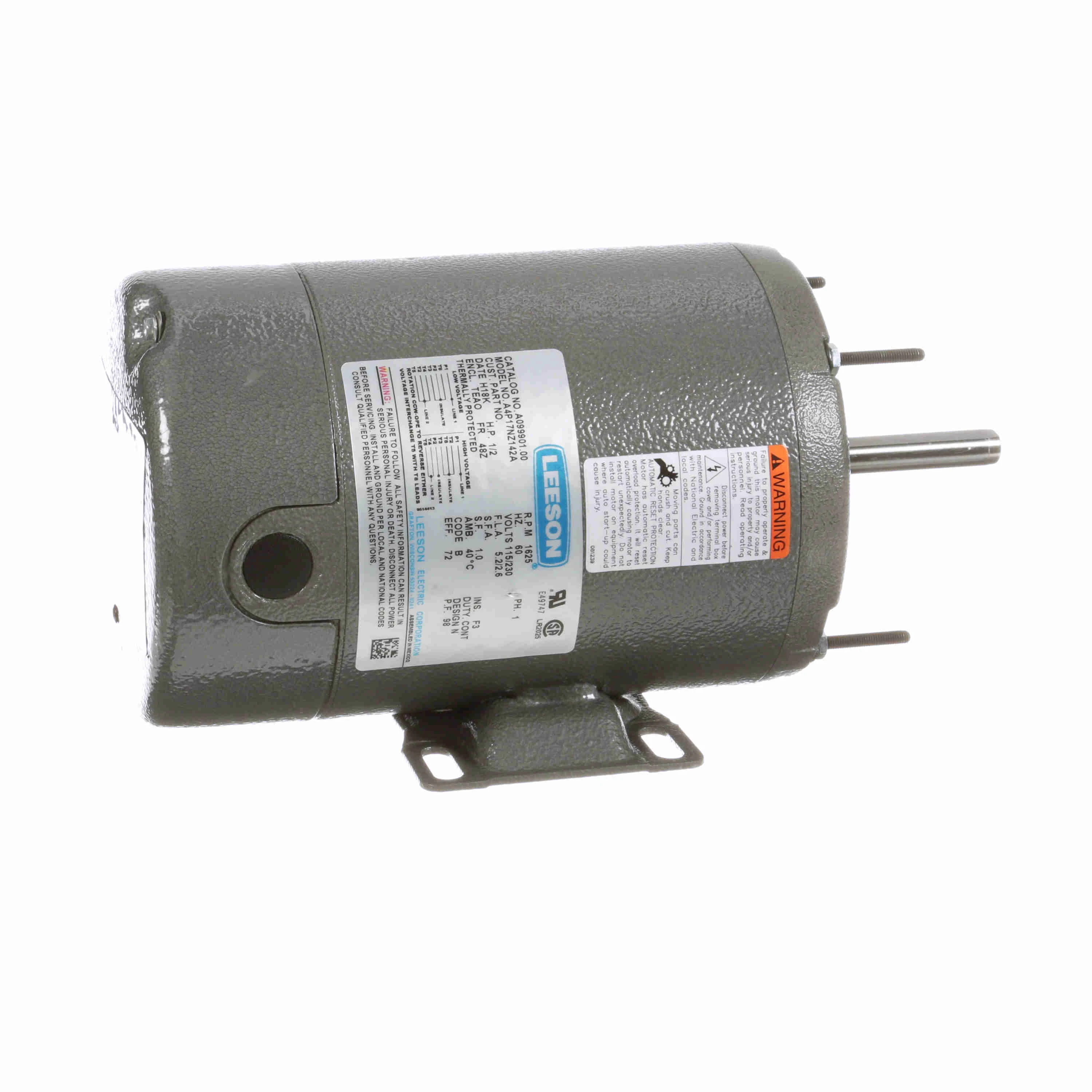

LEESON A099901.00 A4P17NZ142A Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€424.65 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Code | B |
| Design | B, N |
| Duty Cycle | Continuous |
| Frame | 48Z |
| Frequency | 60 Hz |
| Full Load Amps | 5.2/2.6A |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Permanent Split Capacitor |
| Mounting Type | Extended Studs, Foot Mounted |
| Nameplate Rpm | 1625 RPM |
| Output Kw | 0.37 kW |
| Packaging | F |
| Phase | 1 |
| Power Factor | 98 |
| Service Factor | 1 |
| Thermal Protection | Automatic |
| Type | PN |
| Voltage | 115/230V AC |
| Ship weight (kg) | 9 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | kW | Mounting | Power Factor | RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
A099462.00 | 48Z | 5.5 / 2.75 | 1/2 | .37 | Rigid | 85.7 | 1075 | €426.12 | |
 |
A099899.00 | 48Y | 2.8 / 1.4 | 1/4 | .187 | Rigid | 87.5 | 1625 | €110.47 |
