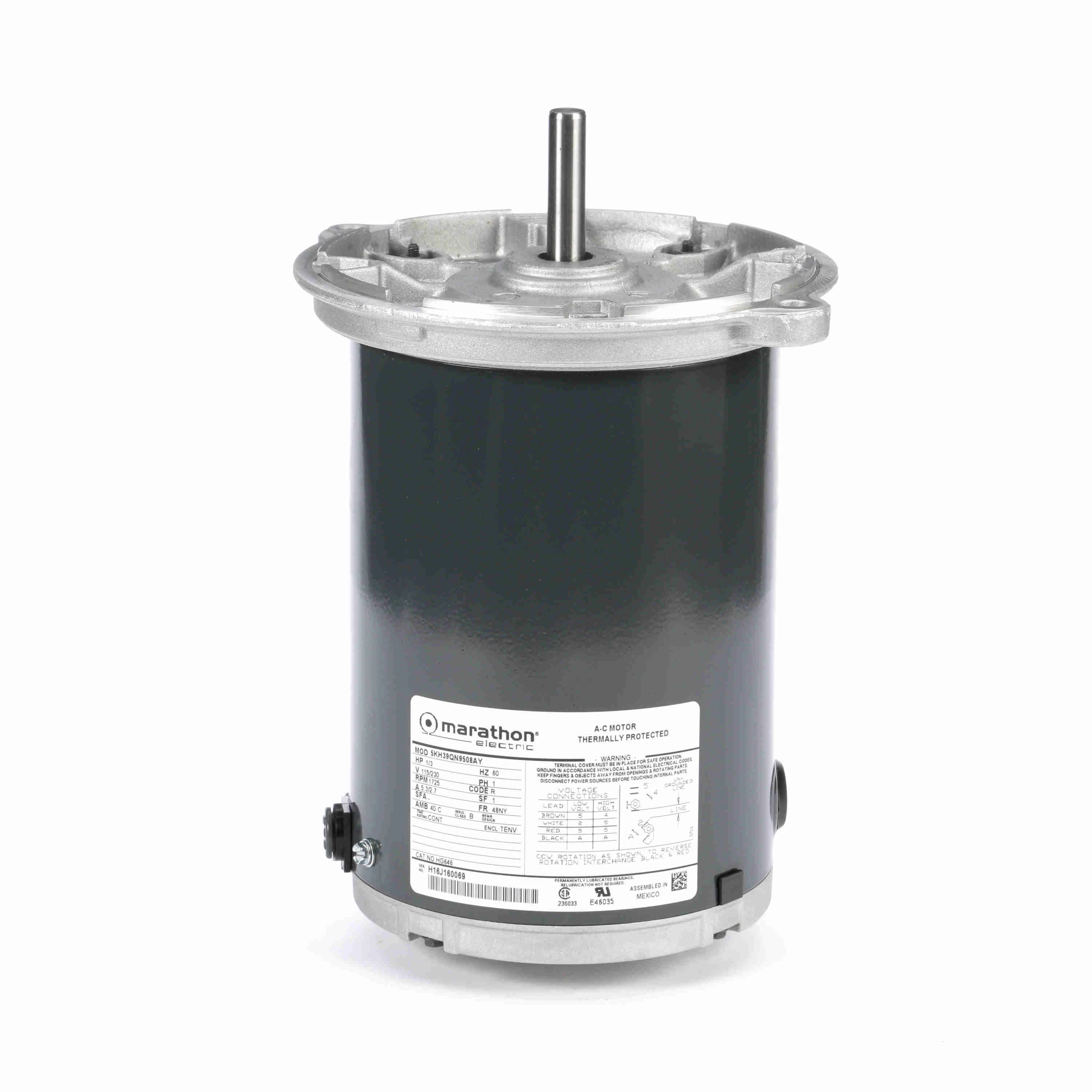

| Item | Poultry Fan Motor |
| Application | Farm Duty |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Frame | 48NY |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 5.3/2.7A |
| Hp | 1/3 hp |
| Length Less Shaft | 9 3/8" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Auger |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Auger |
| Motor Thermal Protection | Manual |
| Motor Type | Split Phase |
| Mounting Type | Face |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 11 5/64" |
| Phase | 1 |
| Service Factor | 1.0 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/8" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Frame Material | Rolled Steel |
| Motor Service Factor | 1 |
| Nameplate Rpm | 1725 RPM |
| Standards | CSA, UL RECOGNIZED |
| Weight | 22 lbs. |
| Ship weight (kg) | 9.9 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 39.7 |
| Ship width (cm) | 25.1 |
| HS code | 8501404040 |
| Country of Origin | MX |
