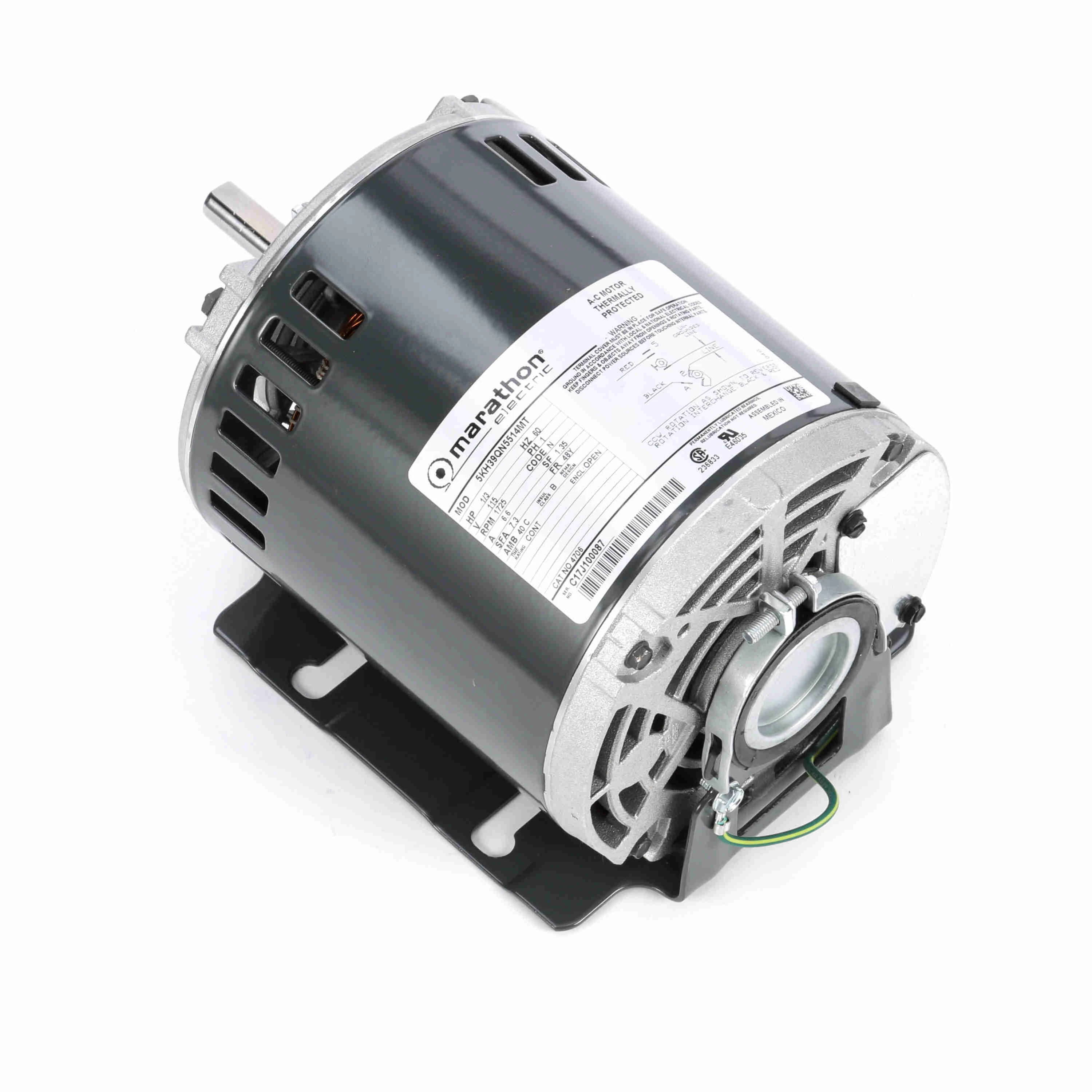

| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 5.562" |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frequency | 60 Hz |
| Full Load Amps | 6.6A |
| Full Load Efficiency | 58.2% |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Length Less Shaft | 7.688" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Resilient Base |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting Type | Resilient Base |
| Nameplate Rpm | 1725 RPM |
| Number Of Speeds | 1 |
| Orientation | Horizontal/Vertical |
| Overall Length | 8.938" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Thermal Protection | Automatic |
| Voltage | 115V AC |
| Warranty | 1 yr. |
| Hz | 60 |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Service Factor | 1.35 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 58.2% |
| Standards | CSA, UL |
| Weight | 15 lbs. |
| Ship weight (kg) | 6.75 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 17.63 |
| HS code | 8501404040 |
| Country of Origin | MX |
