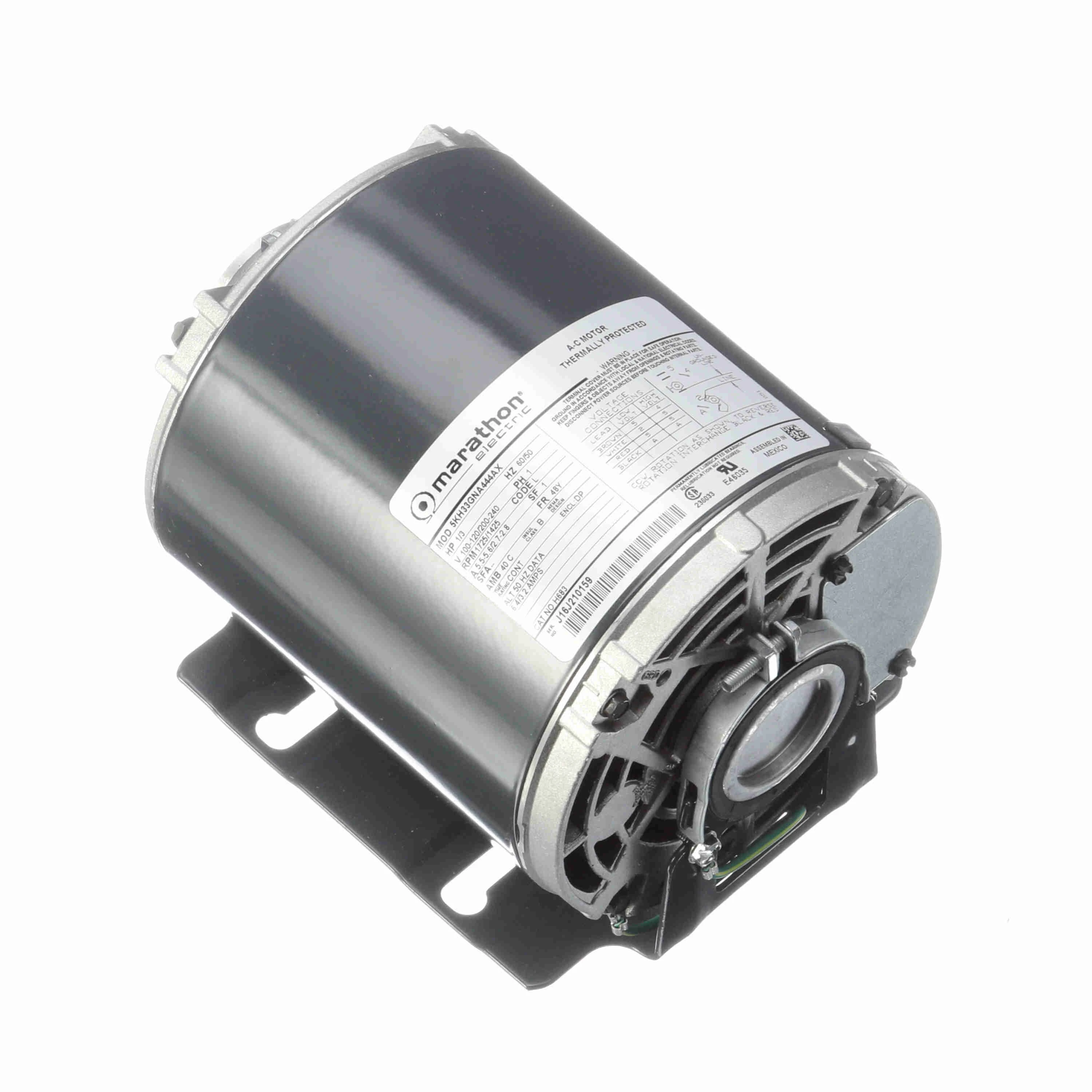

| Item | Carbonator Pump Motor |
| Bearing Type | Ball |
| Body Dia. | 5 3/5" |
| Duty Cycle | Continuous |
| Frame | 48Y |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 2.7-2.8/5.5-5.6A |
| Hp | 1/3 hp |
| Hz | 50/60 Hz |
| Insulation Class | Class B |
| Length Less Shaft | 7 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | Pump |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Cradle |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Carbonator Pump |
| Motor Thermal Protection | Automatic |
| Motor Type | Split Phase |
| Mounting | Cradle |
| Mounting Type | Cradle Base |
| Nominal Efficiency | 62% |
| Number Of Speeds | 1 |
| Overall Height | 5.812" |
| Overall Length | 7 15/16" |
| Phase | 1 |
| Rotation | Clockwise/Counter Clockwise |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1/4" |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 120/240V AC |
| Height | 5 13/16" |
| Ins. Class | Class B |
| Motor Bearings | Ball |
| Motor Design | Split-Phase |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Standards | CE MARK, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 17 lbs. |
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 32.08 |
| Ship width (cm) | 17.63 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Bearings | Enclosure | Full Load Amps | HP | Hz | Item | Mounting | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH37PNA479X | Ball | Open Dripproof | 10.4/5.2 | 3/4 | 60 | Carbonator Pump Motor | Cradle | 9.125" | €473.27 | |
 |
5KH32GNB812X | Ball | Open Dripproof | 2.7-2.7 | 1/3 | 50/60 | Carbonator Pump Motor | Cradle | 7 11/16" | €292.01 | |
 |
5KH32GNB813X | Sleeve | Open Dripproof | 2.3-2.4 | 1/4 | 50/60 | Carbonator Pump Motor | Cradle | 7 11/16" | €277.19 | |
 |
5KH32DN5587X | Ball | Open Dripproof | 5.0 | 1/4 | 60 | Carbonator Pump Motor | Cradle | 7 11/16" | €230.88 | |
 |
5KH32FN5586X | Ball | Open Dripproof | 5.6 | 1/3 | 60 | Carbonator Pump Motor | Cradle | 7 11/16" | €250.03 | |
 |
5KH36MNA445X | Ball | Open Dripproof | 7.1-7.2, 3.4-3.6 | 1/2 | 50/60 | Carbonator Pump Motor | Cradle | 8.75" | €346.79 | |
 |
5KH36MNB637X | Ball | Open Dripproof | 7.2 | 1/2 | 60 | Carbonator Pump Motor | Cradle | 8.75" | €374.73 |
