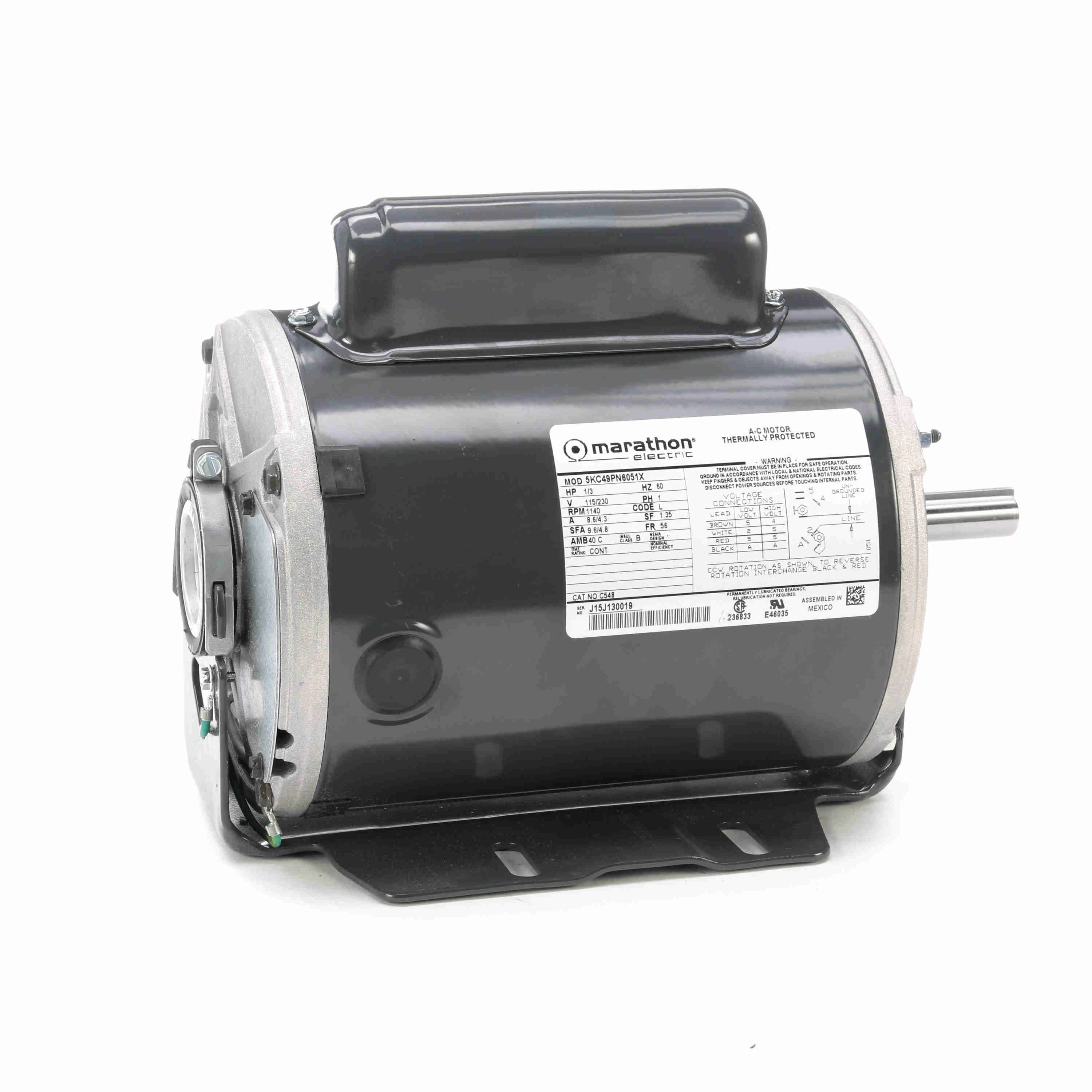

LEESON 5KC49PN6051X C548 General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 1200 RPM
Get it by Tuesday, Jun 17
€670.44 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Duty Cycle | Continuous |
| Efficiency | 50% |
| Efficiency Group | Standard |
| Enclosure Type | Open Dripproof |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 8.6/4.3A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length | 11 3/8" |
| Length Less Shaft | 9 1/2" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Mounting Position | All Angle |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Capacitor Start |
| Mounting Type | Cradle Base |
| No. Of Speeds | 1 |
| Overall Length | 11.38" |
| Phase | 1 |
| Rpm | 1140 RPM |
| Rpm Range | 1101-1200 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Type | Keyed |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Warranty | 1 yr. |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Keyed |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 1140 RPM |
| Nominal Efficiency | 50% |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 28 lbs. |
| Ship weight (kg) | 12.6 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 34.77 |
| Ship width (cm) | 18.11 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Frame | Frame Material | Full Load Amps | HP | Hz | Length Less Shaft | Motor Design | Motor Mounting Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR49PN0098X | 56 | Steel | 9.0-8.8/4.5-4.4 | 3/4 | 50/60 | - | Capacitor-Start/Capacitor-Run | All Angle | €824.77 | |
 |
5KC48UN6052 | 56 | Rolled Steel | 9.4/4.7 | 1/2 | 60 | - | Capacitor-Start | - | €930.35 | |
 |
5KC36LN26 | 48 | Rolled Steel | 6.0/3.2-3.0 | 1/3 | 50/60 | 8.5" | Capacitor-Start | Horizontal | €871.07 | |
 |
5KC36LN26X | 48 | Rolled Steel | 6.0/3.2-3.0 | 1/3 | 50/60 | 8.5" | Capacitor-Start | Horizontal | €469.80 | |
 |
5KC46JN0002X | 56 | Rolled Steel | 11.4/5.6-5.7 | 3/4 | 60 | 9" | Capacitor-Start | Horizontal | €580.31 | |
 |
5KC49PN6051 | 56 | Rolled Steel | 8.6/4.3 | 1/3 | 60 | 9.437" | Capacitor-Start | Horizontal | €651.92 | |
 |
5KC35JN7X | 48 | Rolled Steel | 5.2/2.6 | 1/4 | 60 | 8 1/16" | Capacitor-Start | Horizontal | €301.88 |
