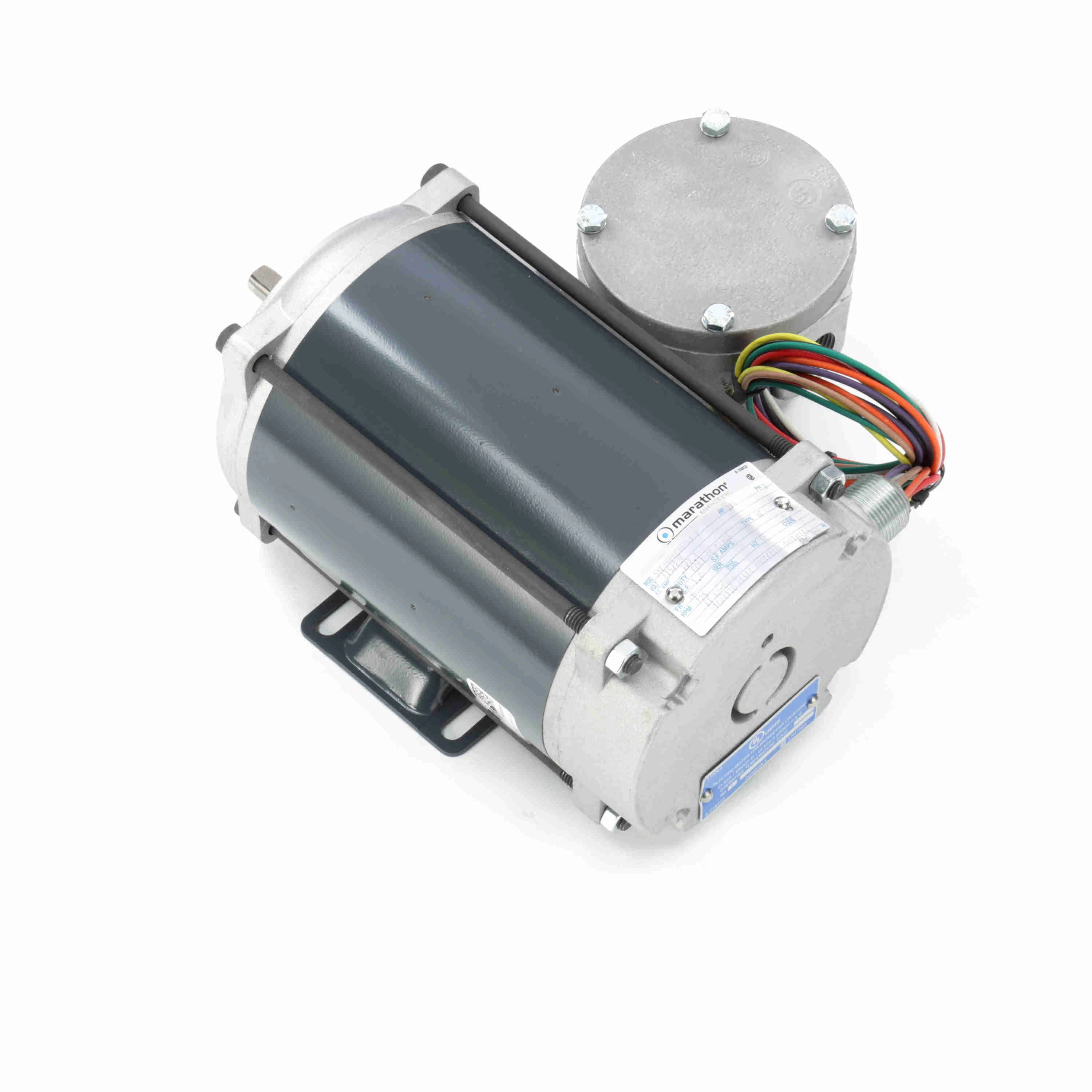

LEESON 5KC36PNB169 C646 Explosion Proof Motor, 0.25 HP, 1 Phase, 60 Hz, 115/230 V, 1800 RPM
Get it by Tuesday, Jun 17
€903.18 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Full Load Amps | 4.2/2.1A |
| Hazardous Location Class | 1D/2F, G |
| Hp | 1/4 hp |
| Insulation Class | Class A |
| Motor Application | Hazardous Location |
| Motor Design | Capacitor Start |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Temp. Code | T3B |
| Thermal Protection | Automatic |
| Voltage | 115/230V AC |
| Conduit Box Location | Exterior |
| Hazardous Location Division | Division 1 |
| Hz | 60 |
| Includes | Explosion Proof Conduit Box |
| Ins. Class | Class B |
| Length Less Shaft | 9 1/8" |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Thermal Protection | Auto |
| Nameplate Rpm | 1725 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 59.5% |
| Overall Length | 10 3/4" |
| Standards | CSA CERTIFIED, UL LISTED |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Weight | 24 lbs. |
| Ship weight (kg) | 10.89 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501404040 |
| Country of Origin | MX |
| Product | Model | Enclosure | Frame | Full Load Amps | Hazardous Location Class | HP | Insulation Class | Item | kW | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KH35LNB164 | EPNV | 48 | 3.3 | EXP PROOF CL I GR D CL II GR F&G T3B | 1/6 | A | Explosion Proof Motor | 0.13 | €771.07 | |
 |
5KC49LN6386 | EPNV | 56 | 3.8 | EXP PROOF CL I GR C&D CL II GR F&G T3B | 1/6 | B | Explosion Proof Motor | 0.13 | €985.29 | |
 |
5KH36PNB171 | EPNV | 48 | 4.4 | EXP PROOF CL I GR D CL II GR F&G T3B | 1/4 | A | Explosion Proof Motor | 0.19 | €796.99 |
