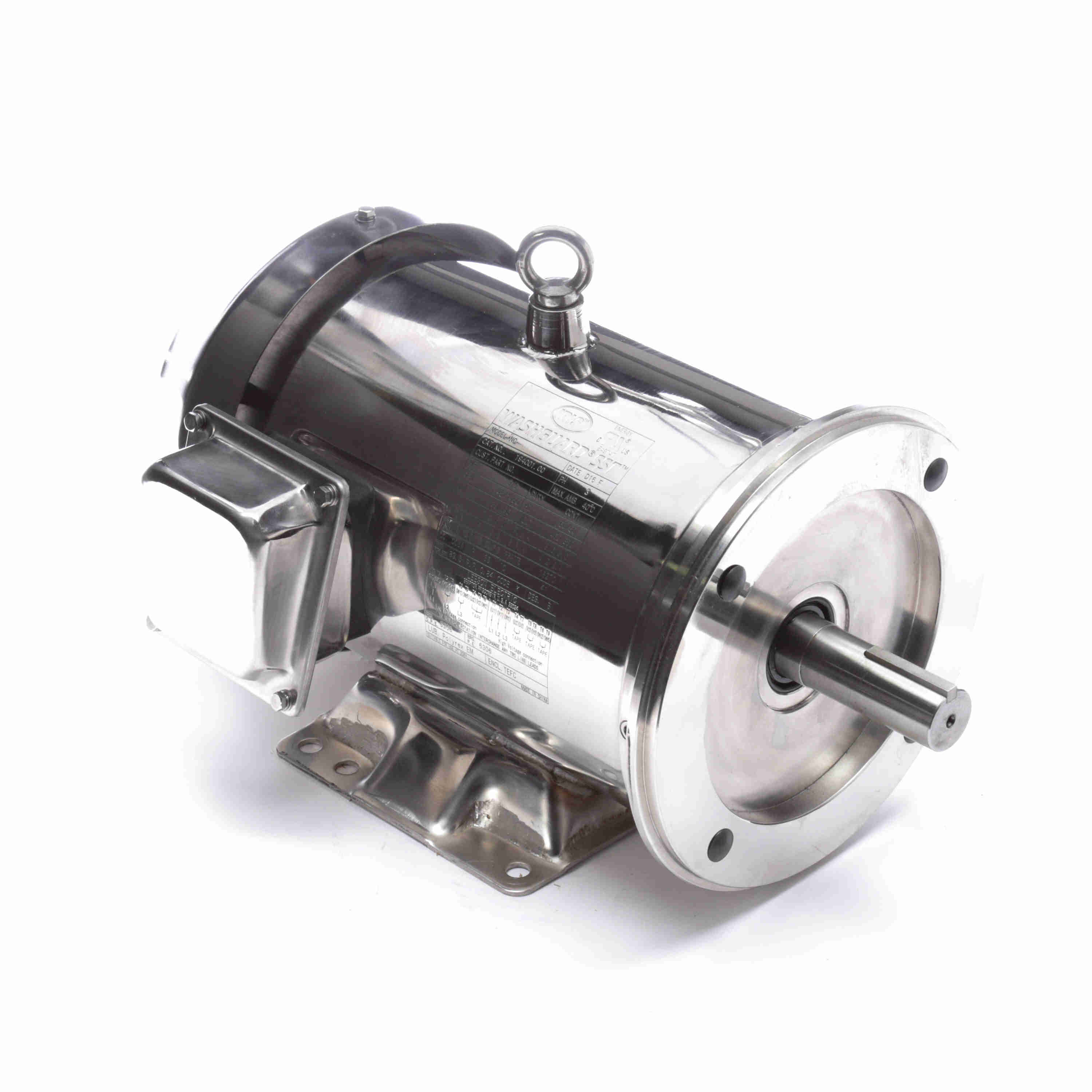

LEESON 194009.00 C254T17WK2A General Purpose Motor, 15/10 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Jun 17
€7,787.92 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | Washdown Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 14" |
| Duty Cycle | Continuous |
| Efficiency | 92.4% |
| Finish | Unfinished |
| Frame | 254TC |
| Frame Material | Stainless Steel |
| Frequency | 60 Hz |
| Full Load Amps | 38-35.5/17.8A |
| Inverter Rating | 4:1 |
| Motor Application | Washdown |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1770 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Overall Length | 23.65" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 5/8" |
| Thermal Protection | None |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hp | 15 hp |
| Hz | 60 |
| Max. Ambient Temp. | 40°C |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | None |
| Nominal Efficiency | 92.4% |
| Product Type | Washdown Motor |
| Standards | CE CERTIFIED, CSA CERTIFIED, UL LISTED |
| Weight | 307 lbs. |
| Ship weight (kg) | 138.15 |
| Ship height (cm) | 46.23 |
| Ship length (cm) | 67.69 |
| Ship width (cm) | 37.92 |
| Country of Origin | CN |
