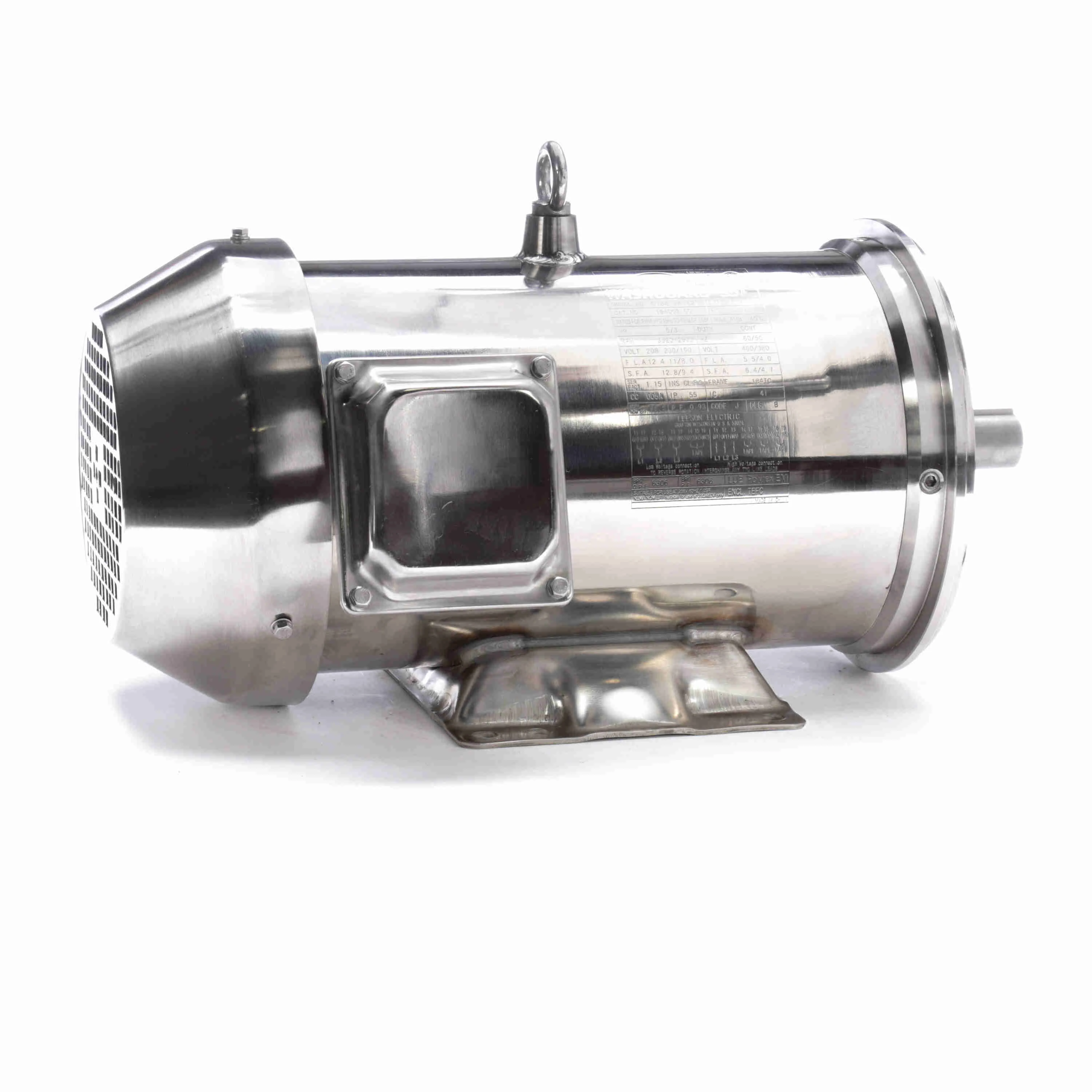

| Item | Washdown Motor |
| Code | J |
| Design | B |
| Duty | Continuous |
| Enclosure | TEFC |
| Frame | 184TC |
| Full Load Amps | 11.0 / 5.5 |
| HP | 5 / 3 |
| Hz | 50/60 |
| Insulation Class | F |
| kW | 3.7 / 2.24 |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40 |
| Mounting | Rigid |
| Packaging | INDIVIDUAL |
| Phase | 3 |
| Power Factor | 93 |
| Rotation | REV |
| RPM | 3600 / 3000 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Type | TF |
| Voltage | 230 / 460 |
| Ship weight (kg) | 54 |
| Ship height (cm) | 42.93 |
| Ship length (cm) | 55.12 |
| Ship width (cm) | 36.83 |
| Product | Model | Packaging | Max. Ambient Temp. | Enclosure | Full Load Amps | HP | Hz | kW | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191201.00 | - | 40 | TENV | 1.2-1.3 / .65 | .33 / .25 | 50/60 | .25 / .19 | - | €1,143.56 | |
 |
191414.00 | B | 40 | TENV | 2.1-2 / 1 | 1/2 / 1/3 | 50/60 | .37 / 0.25 | - | €1,094.81 | |
 |
191415.00 | B | 40 | TENV | 3 -3 / 1.5 | 3/4 / 1/2 | 50/60 | .56 / .37 | - | €1,565.12 | |
 |
191417.00 | B | 40 | TEFC | 3.8-3.8 / 1.9 | 1 / 3/4 | 50/60 | 0.75 / 0.56 | - | €1,623.16 | |
 |
191486.00 | B | 40 Deg. F | TEFC | 2.9-2.6/1.3A | 1 | 50/60 Hz | 0.75 / 0.56 | 11 1/2" | €2,282.95 | |
 |
191487.00 | B | 40 | TEFC | 3.2-3 / 1.5 | 1 / 3/4 | 50/60 | .75 / .56 | - | €1,521.33 | |
 |
191488.00 | B | 40 Deg. F | TEFC | 4.2-3.8/1.9A | 1 1/2 | 50/60 Hz | 1.12 / .75 | 11 1/2" | €2,167.11 |
