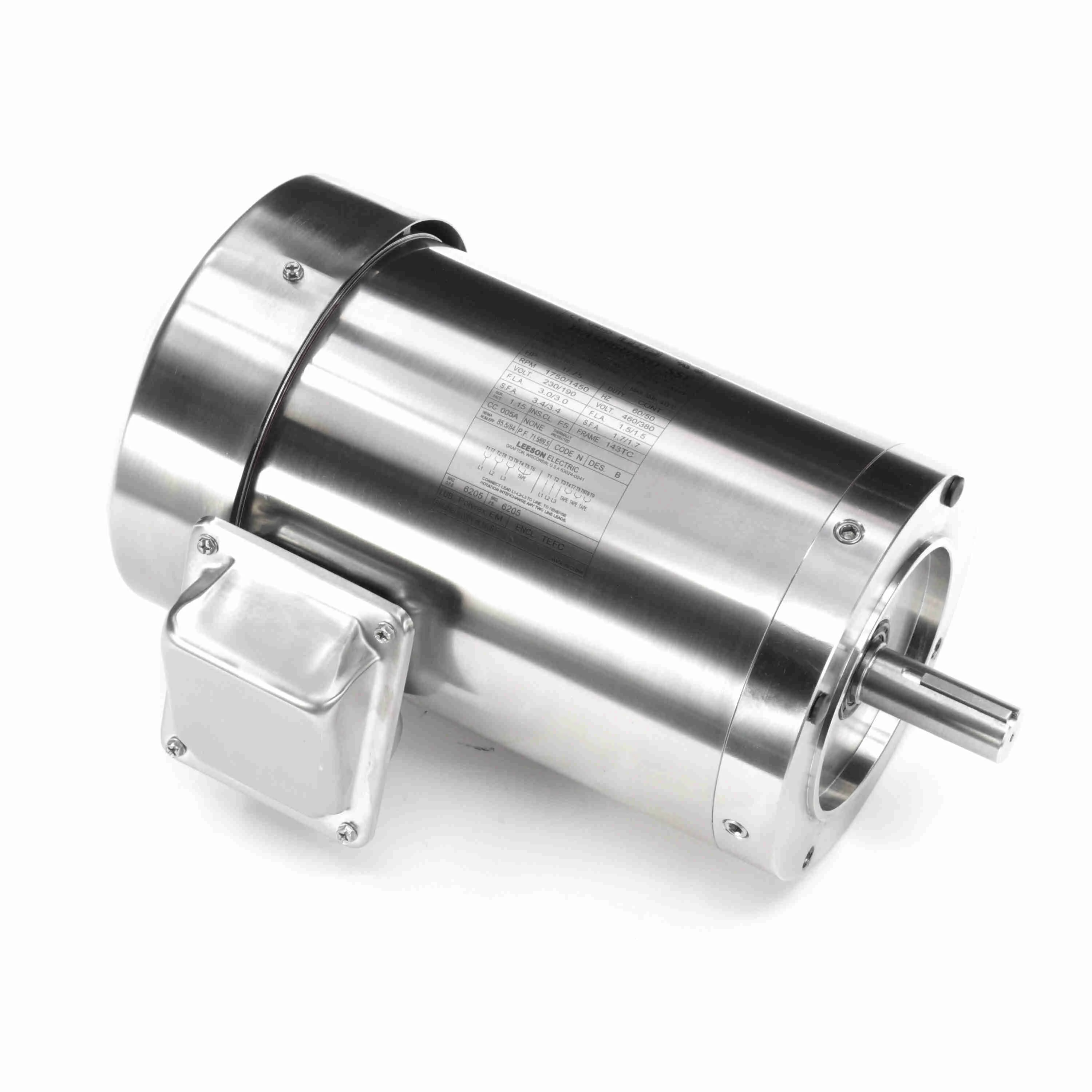

LEESON 191565.00 C143T17WC9A General Purpose Motor, 1/0.75 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Get it by Monday, Jun 16
€1,028.94 /unit
Add To Cart
Request a Quote
Payment
Get it by Monday, Jun 16
Payment
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | N |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Duty Cycle | Continuous |
| Finish | Paint Free |
| Frame | 143TC |
| Frame Material | Stainless Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3-3.2/1.5A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Hp | 1 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Rpm | 1750 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| Nominal Efficiency | 85.5% |
| Overall Length | 13 5/8" |
| Packaging | Individual |
| Phase | 3 |
| Power | 0.75 kW |
| Power Factor | 71.5 |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 11 5/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Product Type | Washdown Motor |
| Standards | BISSC APPROVED, CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 44 lbs. |
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 38.51 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
| Product | Model | Enclosure | Frame | Full Load Amps | HP | Hz | kW | Length Less Shaft | Max. Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191419 | TENV | 56C | 2.1-2 / 1 | 1/2 / 1/3 | 50/60 | .37 / .246 | - | 40 | €1,430.68 | |
 |
191421 | TEFC | 56C | 3.8-3.8 / 1.9 | 1 / 3/4 | 50/60 | .75 / .56 | - | 40 | €1,187.80 | |
 |
191507 | TEFC | 56C | 1.9-2.0 / 1.0 | 1/2 / 1/3 | 50/60 | 0.37 / 0.25 | - | 40 | €1,136.39 | |
 |
191508 | TEFC | 56C | 2.4-2.3 / 1.15 | 3/4 / 1/2 | 50/60 | .56 / .37 | - | 40 | €1,228.96 | |
 |
191542 | TEFC | 145TC | 8-7.2 / 3.6 | 3 / 2 | 50/60 | 2.24 / 1.49 | - | 40 | €1,484.65 | |
 |
191567 | TEFC | 56C | 4.8-4.4 / 2.2 | 1 1/2 / 1 | 50/60 | 1.12 / .75 | - | 40 | €1,084.23 | |
 |
191568 | TEFC | 145TC | 4.8-4.4 / 2.2 | 1 1/2 / 1 | 50/60 | 1.12 / .75 | - | 40 | €1,107.20 |
