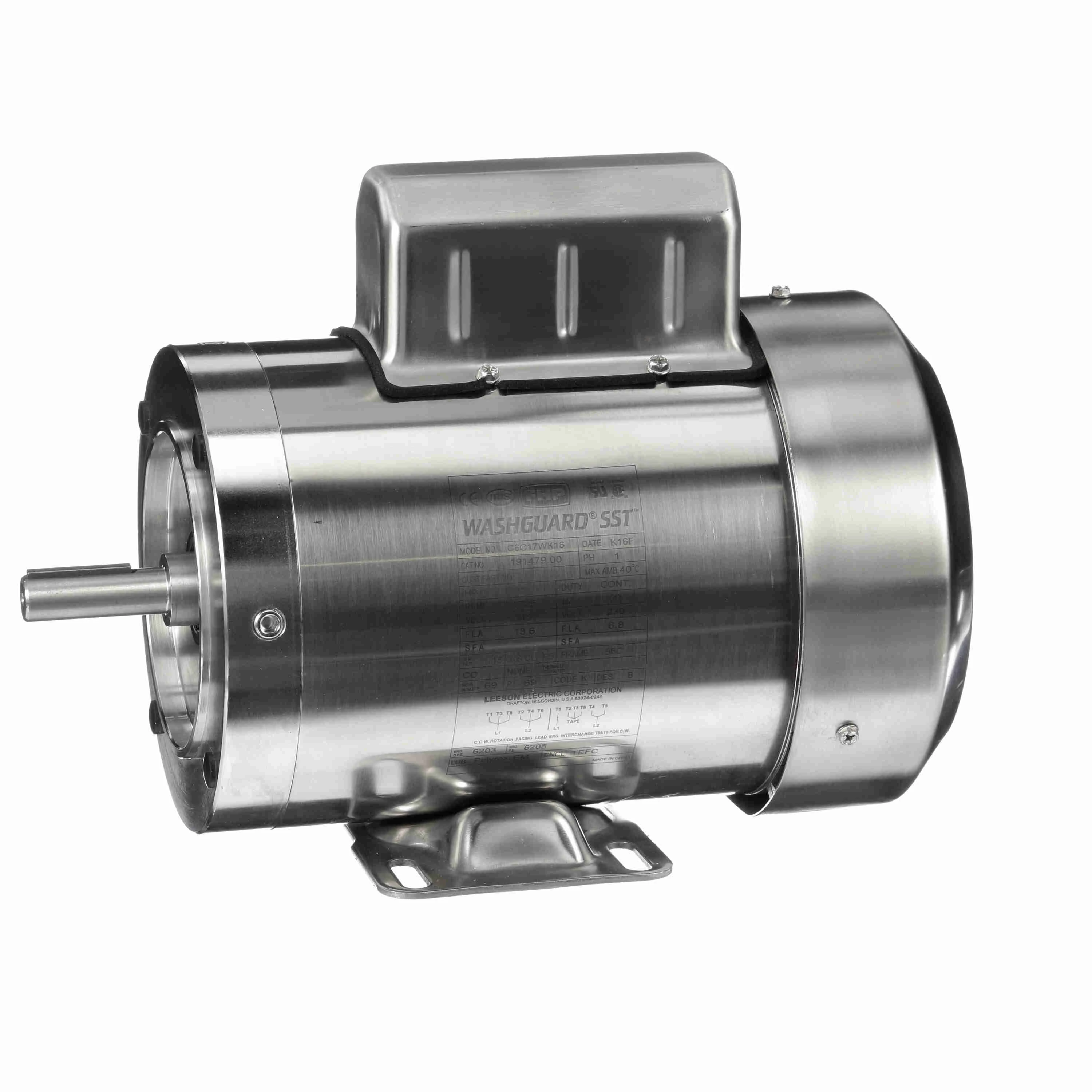

LEESON 191479.00 C6C17WK16A General Purpose Motor, 1 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Tuesday, Jun 17
€1,030.94 /unit
Add To Cart
Request a Quote
Payment
Get it by Tuesday, Jun 17
Payment
| Item | General Purpose Motor |
| Ambient Temp. | 104°F |
| Application | Washdown |
| Assembly | L |
| Bearing Type | Ball |
| Body Dia. | 7.19" |
| Bolt Circle Dia. | 5 7/8" |
| Code | K |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency | 69% |
| Finish | Unfinished |
| Frame | 56C |
| Frame Material | Stainless Steel |
| Full Load Amps | 13.6/6.8A |
| Hp | 1 hp |
| Insulation Class | Class F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1800 RPM |
| Nema Design | N |
| No. Of Speeds | 1 |
| Output Kw | 0.75 kW |
| Overall Length | 12 1/4" |
| Phase | 1 |
| Power Factor | 69 |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Length Less Shaft | 10 3/8" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Type | Face/Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | None |
| Nominal Efficiency | 69% |
| Product Type | Washdown Motor |
| Standards | CE, CSA CERTIFIED, UL RECOGNIZED |
| Weight | 38 lbs. |
| Ship weight (kg) | 17.1 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 35 |
| Ship width (cm) | 25.4 |
| Country of Origin | CN |
| Product | Model | Frame | Full Load Amps | HP | kW | Power Factor | RPM | Shaft Dia. | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191475 | 56C | 8.2 / 4.1 | 1/2 | 0.37 | 65 | 1800 | 5/8" | CF | €942.68 | |
 |
191477 | 56C | 9.8 / 4.9 | 3/4 | .56 | 68 | 1800 | 5/8" | CF | €984.84 | |
 |
191478 | 56C | 12.4 / 6.2 | 1 | 0.75 | 76 | 3600 | 5/8" | CF | €1,030.43 | |
 |
191480 | 56C | 16.4 / 8.5-8.2 | 1.5 | 1.12 | 78.4 | 3600 | 5/8" | CF | €1,150.71 | |
 |
191481 | 56C | 15.8 / 7.9 | 1.5 | 1.12 | 75 | 1800 | 5/8" | KF | €1,188.59 | |
 |
191482 | 145TC | 19 / 9.5 | 2 | 1.49 | 86.3 | 3600 | 7/8" | KF | €1,399.72 | |
 |
191483 | 145TC | 16.4 / 8.2 | 2 | 1.49 | 98 | 1800 | 7/8" | KF | €1,371.01 |
