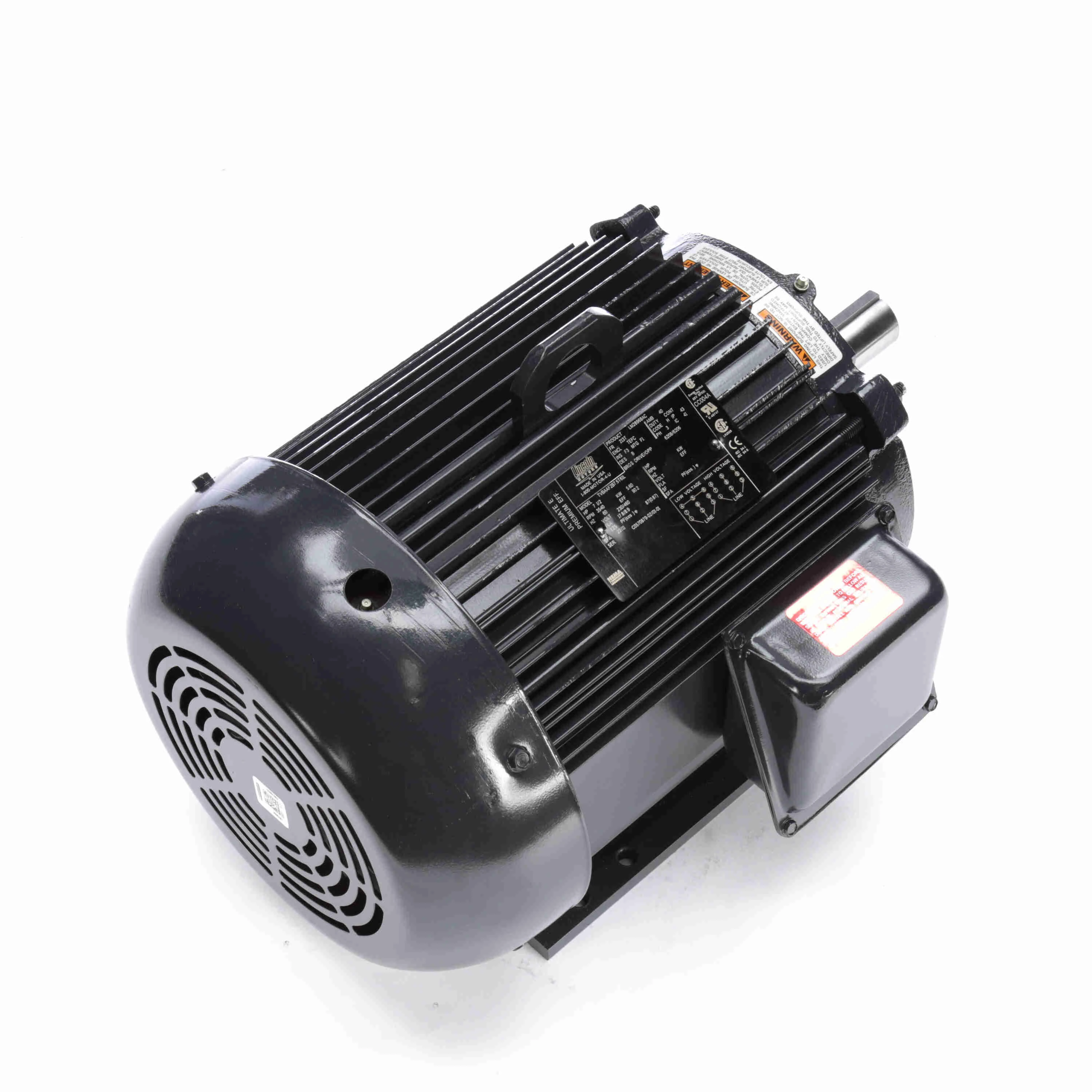

| Item | Motor |
| Ambient Temp. | 105°F |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Cord Length | 6" |
| Duty Cycle | Continuous |
| Efficiency | 75.3% |
| Finish | Enamel |
| Frame | S56J |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.7/0.85A |
| Hp | 1/2 hp |
| Insulation Class | Class F |
| Inverter Rated | No |
| Motor Application | Pump |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Threaded |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | B |
| No. Of Speeds | 1 |
| No. Of Wires | 3 |
| Overall Height | 6 3/16" |
| Overall Length | 11 1/8" |
| Part Winding Start Capable | No |
| Phase | 3 |
| Service Factor | 1.2 |
| Service Factor Amps | 1.15A |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 9/16" |
| Shaft Material | Stainless Steel |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Ship weight (kg) | 9 |
| Ship height (cm) | 15.72 |
| Ship length (cm) | 28.26 |
| Ship width (cm) | 39.17 |
| Country of Origin | CN |
