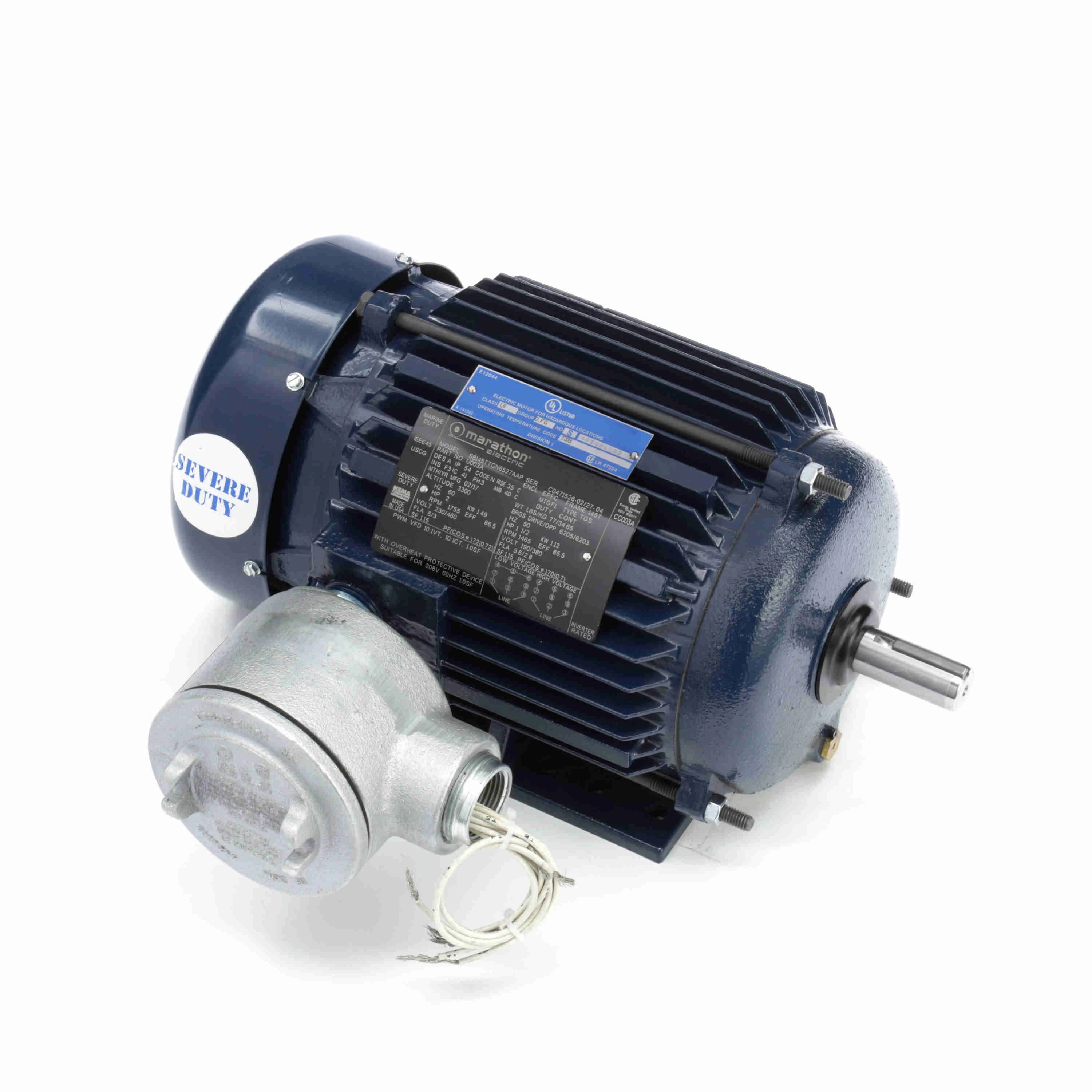

| Item | Hazardous Location Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Efficiency Group | Premium |
| Frame | 145T |
| Frame Material | Cast Iron |
| Frequency | 50/60 Hz |
| Hazardous Location Class | Class 1D/2F, Class G |
| Hazardous Location Division | Division 1 |
| Hp | 2 hp |
| Includes | (11) 12" Leads Through 1/2 NPT Nipple |
| Insulation Class | Class F |
| Length Less Shaft | 12.438" |
| Motor Application | Hazardous Location |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Nameplate Rpm | 1755 RPM |
| Nema Design | A |
| Nominal Efficiency | 86.5% |
| Number | CC003A |
| Number Of Speeds | 1 |
| Overall Length | 14 3/4" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Temp. Code | T3B |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Warranty | 3 yrs. |
| Cc Number | CC003A |
| Full Load Amps | 6/3A |
| Hz | 60 |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Cast Iron |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | T-Stat |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Voltage | 230/460V AC |
| Weight | 30 lbs. |
| Ship weight (kg) | 34.65 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.16 |
| Ship width (cm) | 36.35 |
| HS code | 8501524000 |
| Country of Origin | MX |
