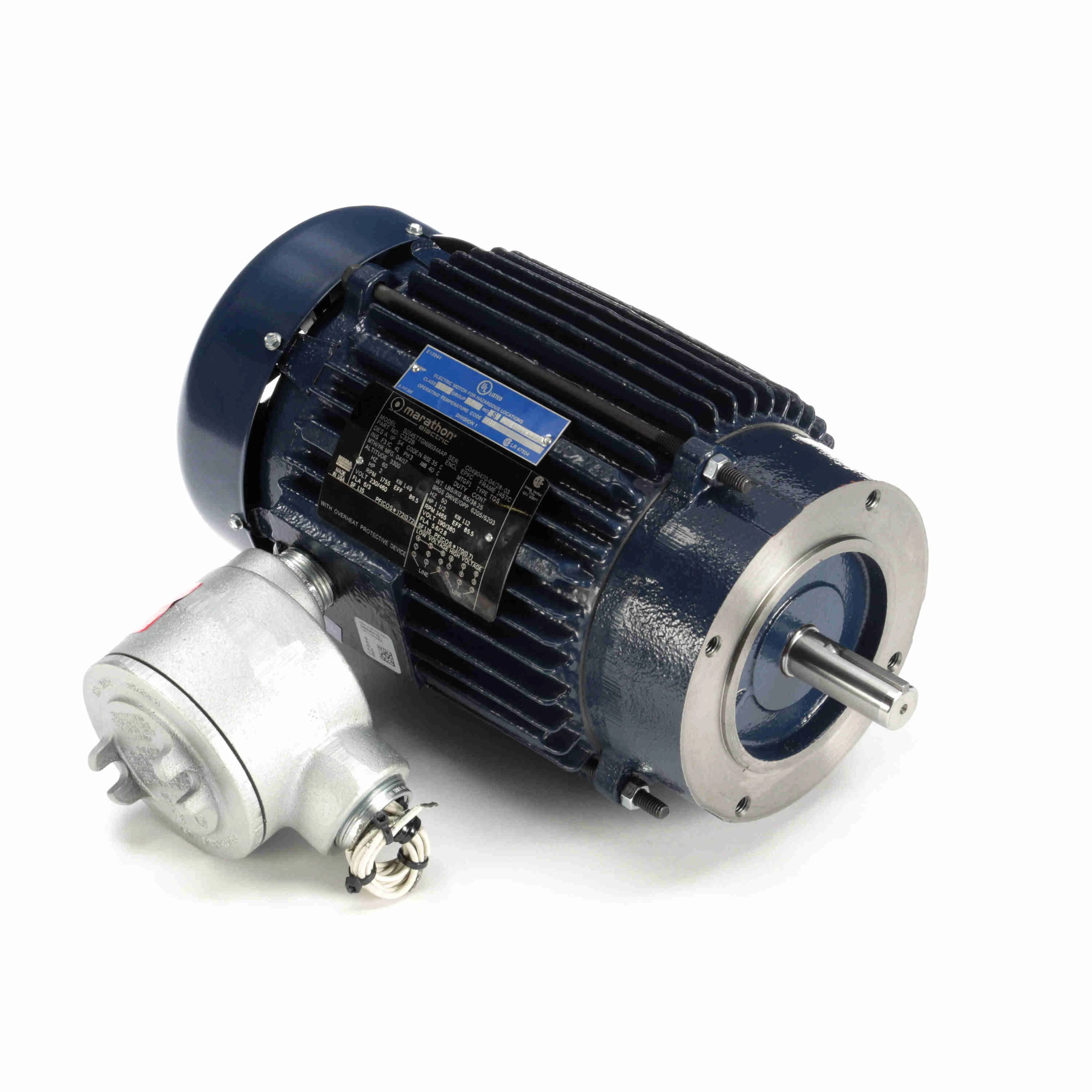

| Item | Hazardous Location Motor |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Frame | 145TC |
| Frame Material | Cast Iron |
| Hazardous Location Class | 1 D, 2 F, G |
| Hz | 60 Hz |
| Includes | Explosion Proof Conduit Box |
| Insulation Class | Class F |
| Lead Length | 12" |
| Length Less Shaft | 13 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Hazardous Location |
| Motor Design | Three Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | T STAT |
| Mounting Type | Face |
| Nameplate Rpm | 3500 RPM |
| Nema Design | B |
| Nominal Efficiency | 86.5% |
| Number Of Speeds | 1 |
| Overall Length | 15 3/16" |
| Phase | 3 |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Temp. Code | T3B |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Full Load Amps | 5.2/2.6A |
| Hazardous Location Division | Division 1 |
| Hp | 2 hp |
| Ins. Class | Class F |
| Motor Bearings | Ball |
| Motor Frame Material | Cast Iron |
| Motor Service Factor | 1.15 |
| No. Of Speeds | 1 |
| Standards | CSA CERTIFIED, UL LISTED |
| Weight | 987 lbs. |
| Ship weight (kg) | 44.1 |
| Ship height (cm) | 35.56 |
| Ship length (cm) | 56.36 |
| Ship width (cm) | 41.91 |
| Country of Origin | MX |
