Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Efficiency Group | NEMA Premium |
| Frame | 145T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 5.8-6/2.9A |
| Hp | 2 hp |
| Insulation Class | Class F |
| Inverter Rated | Yes |
| Length Less Shaft | 11 1/4" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1745 RPM |
| No. Of Speeds | 1 |
| Overall Length | 13 5/8" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 3/8" |
| Thermal Protection | Thermostat |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
| Full Load Amps @ 50hz | 5.8/2.9A |
| Hp @ 50hz | 2 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class F |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | T-Stat |
| Nominal Efficiency | 86.5% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 50 lbs. |
Shipping Info:
| Ship weight (kg) | 18.55 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| HS code | 8501524000 |
| Country of Origin | US |
Explore Products
- TSUBAKI 41B20F 5/8 SPKT
- GROVE GEAR NH8150229.00 NH-BMQ815-5-R-140 Worm Reducer, 5:1 Ratio, 0.875 Inch I.D, 0.75 Inch O.D, Cast Iron
- BOSTON GEAR Q1329 Worm Gear, 32 Diametral Pitch, 25 PA, 50 Teeth, Right Hand, Bronze
- INTERMATIC IOS-DOV-IV Commercial Grade In-Wall PIR Occupancy/Vacancy Sensor, Ivory
- WALTER TOOLS VCGT110304-MM4 WSM20S 7268649 Diamond Turning Insert, Neutral, 1/8 Inch Thick, 1/64 Inch Corner Radius
- GROVE GEAR GR8260548.23 GR-HM826-100-H1-180-23 Hollow Bore Output Worm Gear Reducer
- REGAL 007341AS53 Spiral Flute Tap, 1/2-13 Size, H4 Limit, 4 Flutes, Bottom With Nitride & Steam Oxide
- APOLLO VALVES 511FEBJMAA0250 Relief Valve, F Orifice, 1 Inch Size, Bronze
Explore More
- HOFFMAN
- KEYSHAFT
- SCHUMACHER ELECTRIC
- WALDMANN
- ENDRESS HAUSER
- Padlock Guards
- Safety Sleeves and Tube Holders
- Plastic Tube Fittings
- Wall Mount Fans
- Hydraulic Pump and Motor Mount Adapters
- 6001 Series Straight Line Action Clamps - DESTACO
- Premium Gaotskin Leather Drivers Work Gloves, Shirred Cuff - MCR SAFETY
- XL-C Coupling With Stop, Press x Press - VIEGA PROPRESS
- Woodruff Keyseat Cutter Sets - KEO
- GUARDAIR Force 5 QuietForce Safety Air Guns, Aluminium Extensiom
- Crimp, Male Metric Heavy Hydraulic Hose Fitting - AEROQUIP
- HUBBELL WIRING DEVICE-KELLEMS Liquid Tight Cord Connectors, Straight
- 5000 Series Rotary Union Cartridges - DUFF-NORTON
- Jet Pump Motors, Three Phase, Foot Monted, ODP - BALDOR MOTOR
- Tigear-2 Standard Reducer With 3-Piece Coupled Input,Size 47 - BALDOR / DODGE
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

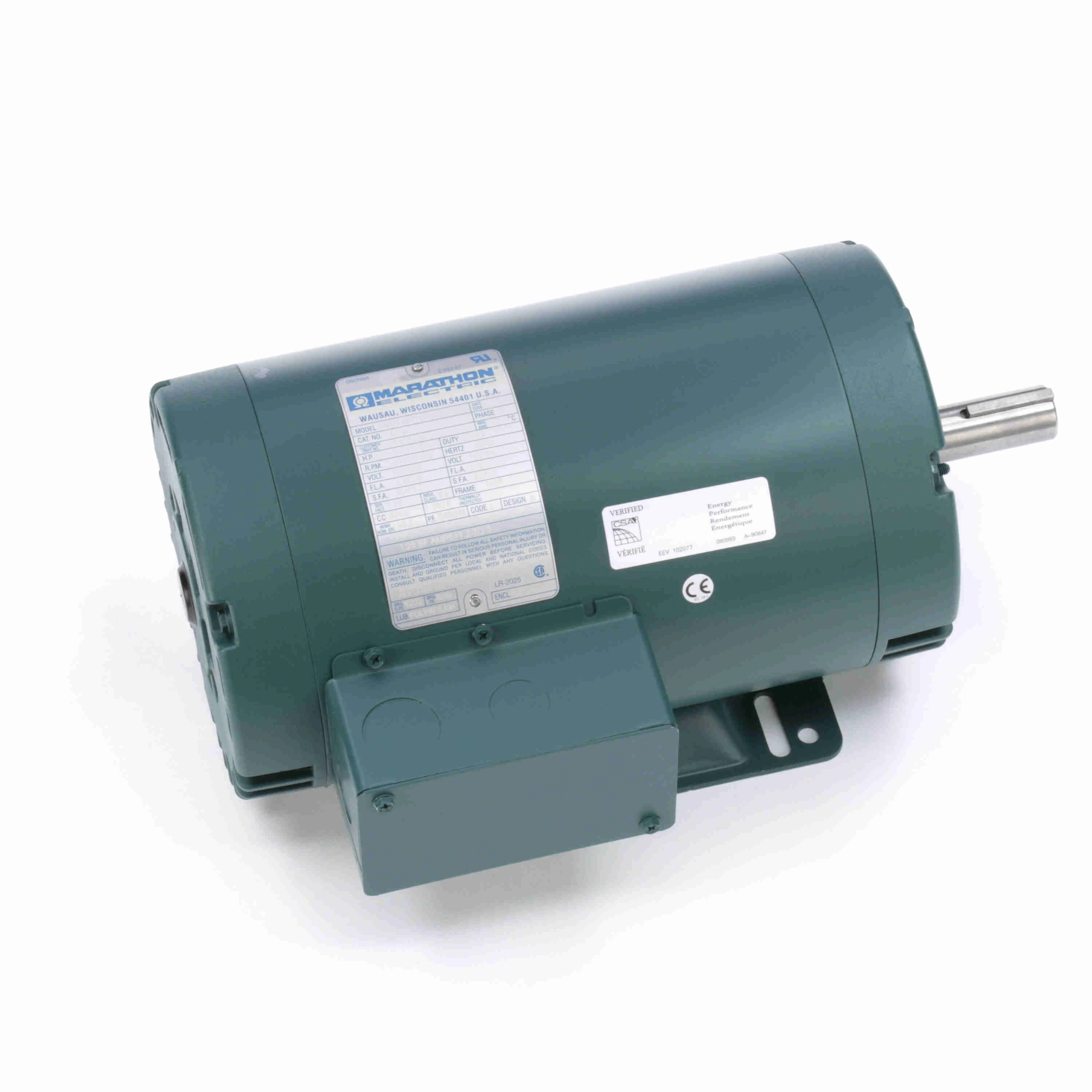

LEESON 145TTDR6029 U760 / 145TTDR6029AA General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
