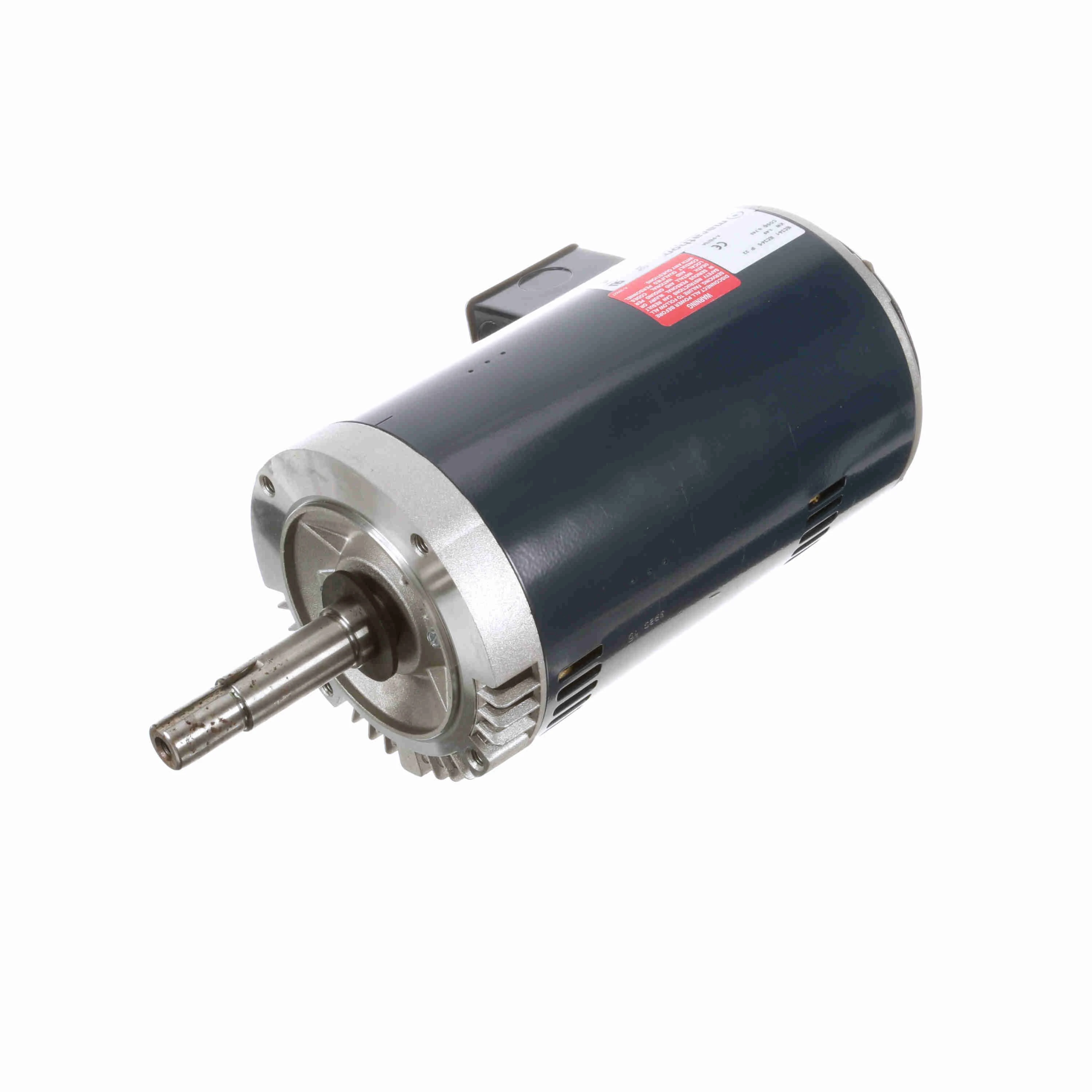

| Item | Close-Coupled Pump Motor |
| Assembly | F1 Only |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Frame | 145JMV |
| Frame Type | 145JMV |
| Frequency | 60 Hz |
| Full Load Amps | 6.9A |
| Full Load Efficiency | 86.5% |
| Hp | 2 hp |
| Insulation Class | Class F |
| Max. Ambient Temp. | 40°C |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal, Vertical Shaft Down |
| Motor Mounting Type | C Face Footless |
| Motor Type | Squirrel Cage Inverter Rated |
| Mounting Type | C Face, Footless |
| Nameplate Rpm | 1800 RPM |
| Nema Design | B |
| Orientation | Horizontal, Shaft Down |
| Output Kw | 1.49 kW |
| Phase | 3 |
| Power | 1.49 kW |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 4 1/4" |
| Voltage | 200V AC |
| Ship weight (kg) | 22.05 |
| Ship height (cm) | 24.77 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 27.64 |
| HS code | 8501524000 |
| Country of Origin | MX |
| Product | Model | Frame | Full Load Amps | HP | Hz | kW | Length Less Shaft | Mounting | Nameplate RPM | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
145TTDR6013 | 145JM | 8.0-7.2/3.6 | 3 | 50/60 | - | 10.5" | - | 3490 | €982.19 | |
 |
145TTDR6034 | 145JM | 4.4-4.4/2.2 | 1.5 | 50/60 | - | 10.875" | - | 1755 | €745.75 | |
 |
145TTDR16329 | 145JMV | 4.4/2.2 | 1.5 | 60 | 1.12 | - | C-Face Footless | - | €745.75 | |
 |
143TTDR16042 | 143JMV | 3.45 | 1 | 60 | 0.75 | - | C-Face Footless | - | €183.11 | |
 |
145TTDR16302 | 145JMV | 3 | 3 | 60 | 2.24 | - | C-Face Footless | - | €179.70 | |
 |
143TTDR16043 | 143JMV | 3.45 | 1 | 60 | 0.75 | - | C-Face Rigid | - | €207.02 | |
 |
145TTDR16023 | 145JMV | 8.75 | 3 | 60 | 2.24 | - | C-Face Rigid | - | €979.73 |
