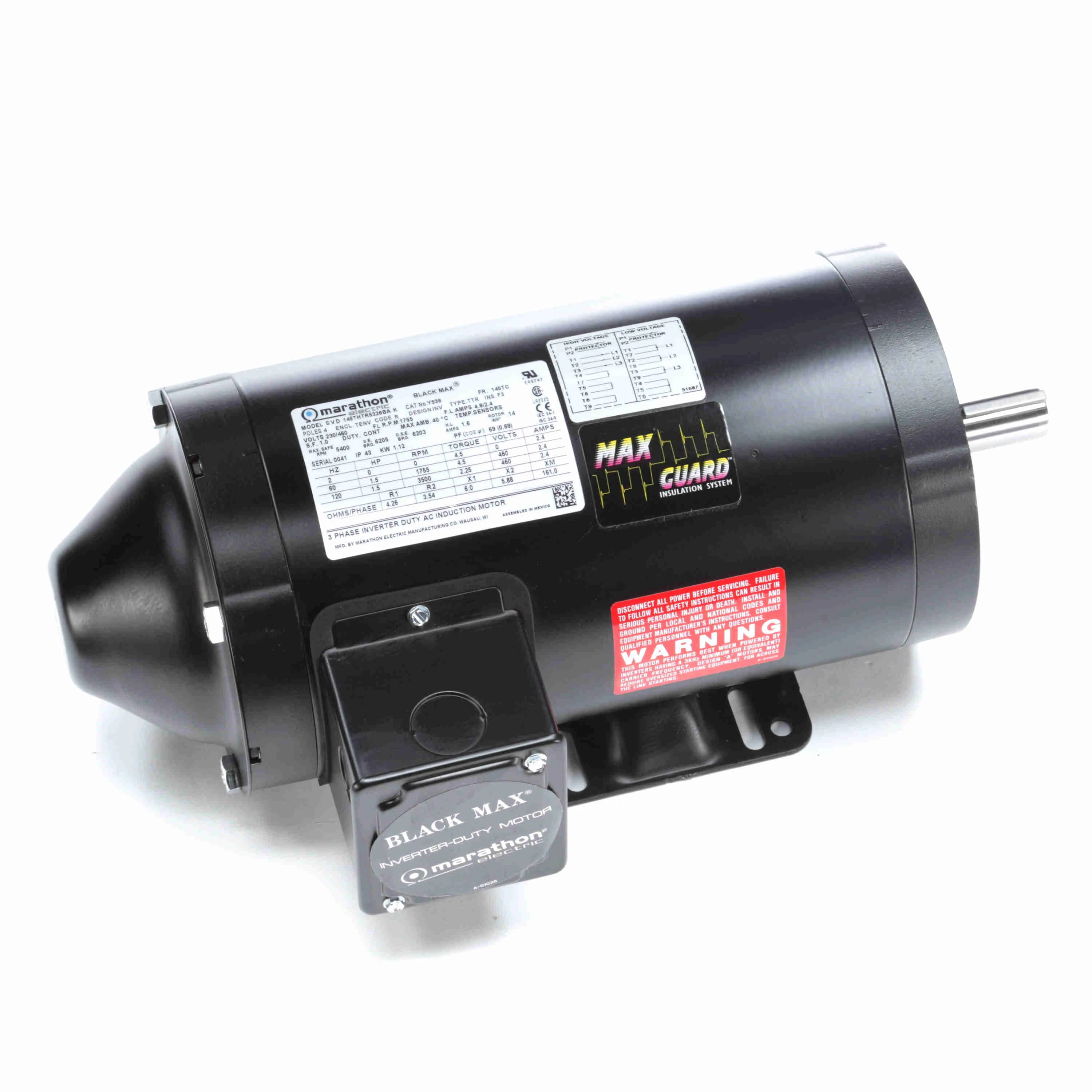

| Item | Vector Motor |
| Ambient Temp. | 40°C |
| Application | Crane |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Color | Black |
| Conduit Box Position | F1 Only |
| Constant Torque | 1000:1 |
| Design | A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | Epact |
| Encoder Acceptable | Yes |
| Encoder Shaft Dimension | 5/8" x 1 3/4" |
| Encoder Shaft Dimensions | 5/8" x 1 3/4" |
| Frame | 145TC |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 4.8/2.4A |
| Full Load Torque | 4.5 lbs.-ft. |
| Hp | 1 1/2 hp |
| Insulation Class | Class F |
| Insulation Feature | Patented Max Guard |
| Length Less Shaft | 13.938" |
| Max. Ambient Temp. | 40°C |
| Max. Operating Frequency | 120 Hz |
| Max. Rpm | 5400 RPM |
| Max. Speed | 5400 RPM |
| Motor Bearings | Ball |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | No |
| Motor Type | Three Phase |
| Mounting Type | Base, Face |
| Nameplate Rpm | 1755 RPM |
| Nema Design | A |
| Nominal Efficiency | 85.5% |
| Number Of Speeds | 1 |
| Overall Length | 16 1/16" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/8" |
| Speed Range | 1000:1 |
| Speed Ratio | 1000:1 |
| Thermal Protection | Thermostat |
| Torque | 4.5 lbs.-ft. |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Warranty | 3 yrs. |
| Finish | Black |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Motor Application | Crane |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Service Factor | 1 |
| No. Of Speeds | 1 |
| Standards | CE, UL RECOGNIZED |
| Weight | 50 lbs. |
| Ship weight (kg) | 22.5 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501524000 |
| Country of Origin | MX |
