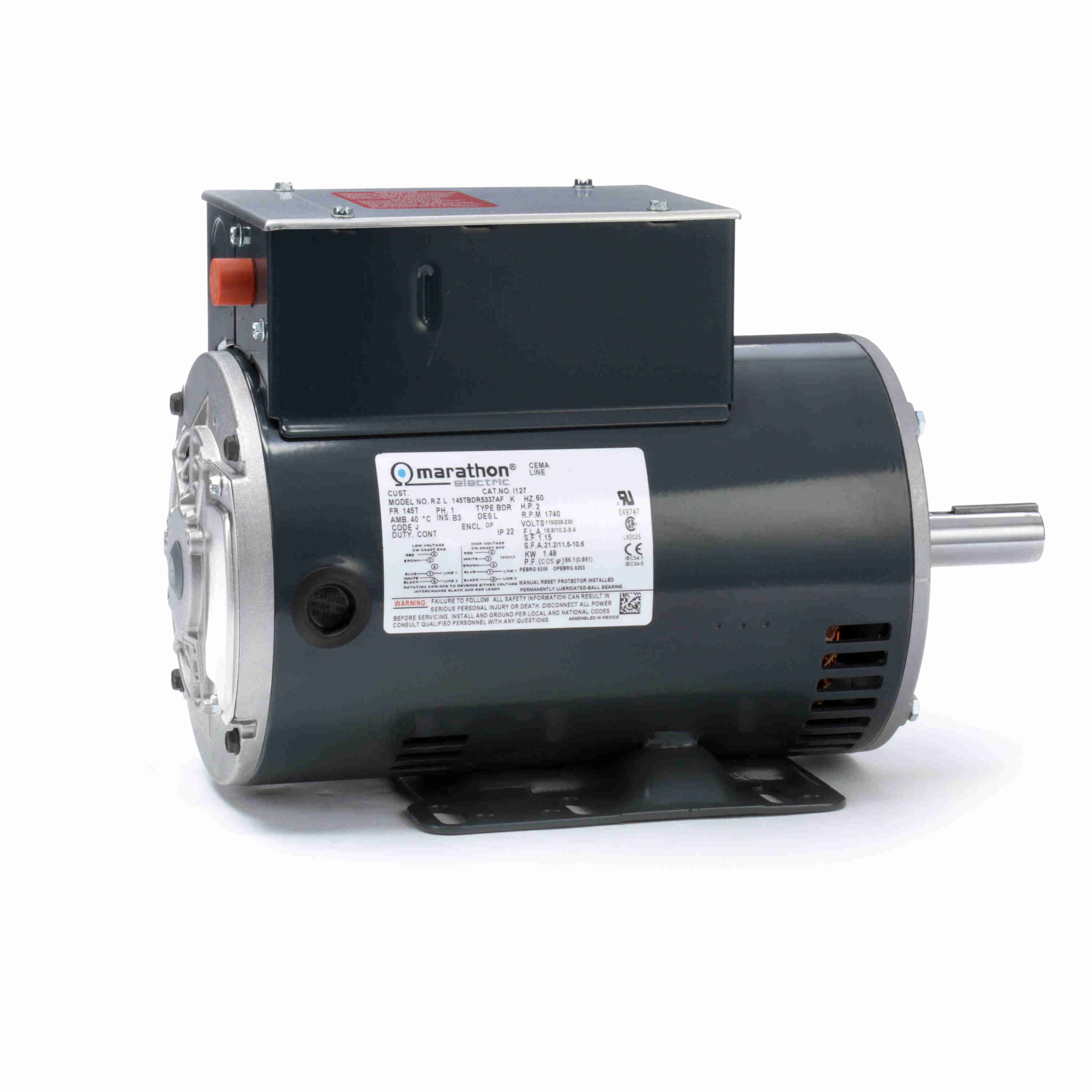

| Item | Air Compressor Motor |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Frame | 145T |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 18.8/10.2-9.4A |
| Hp | 2 hp |
| Includes | Key |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Enclosure Design | Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| No. Of Speeds | 1 |
| Nominal Efficiency | 81.5% |
| Overall Length | 13 1/2" |
| Phase | 1 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Length Less Shaft | 11 21/100" |
| Manufacturers Warranty Length | 18 Months |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start/Run |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Manual |
| Standards | CSA, UL |
| Weight | 48 lbs. |
| Ship weight (kg) | 21.6 |
| Ship height (cm) | 32.05 |
| Ship length (cm) | 50.01 |
| Ship width (cm) | 31.27 |
| HS code | 8501406040 |
| Country of Origin | MX |
