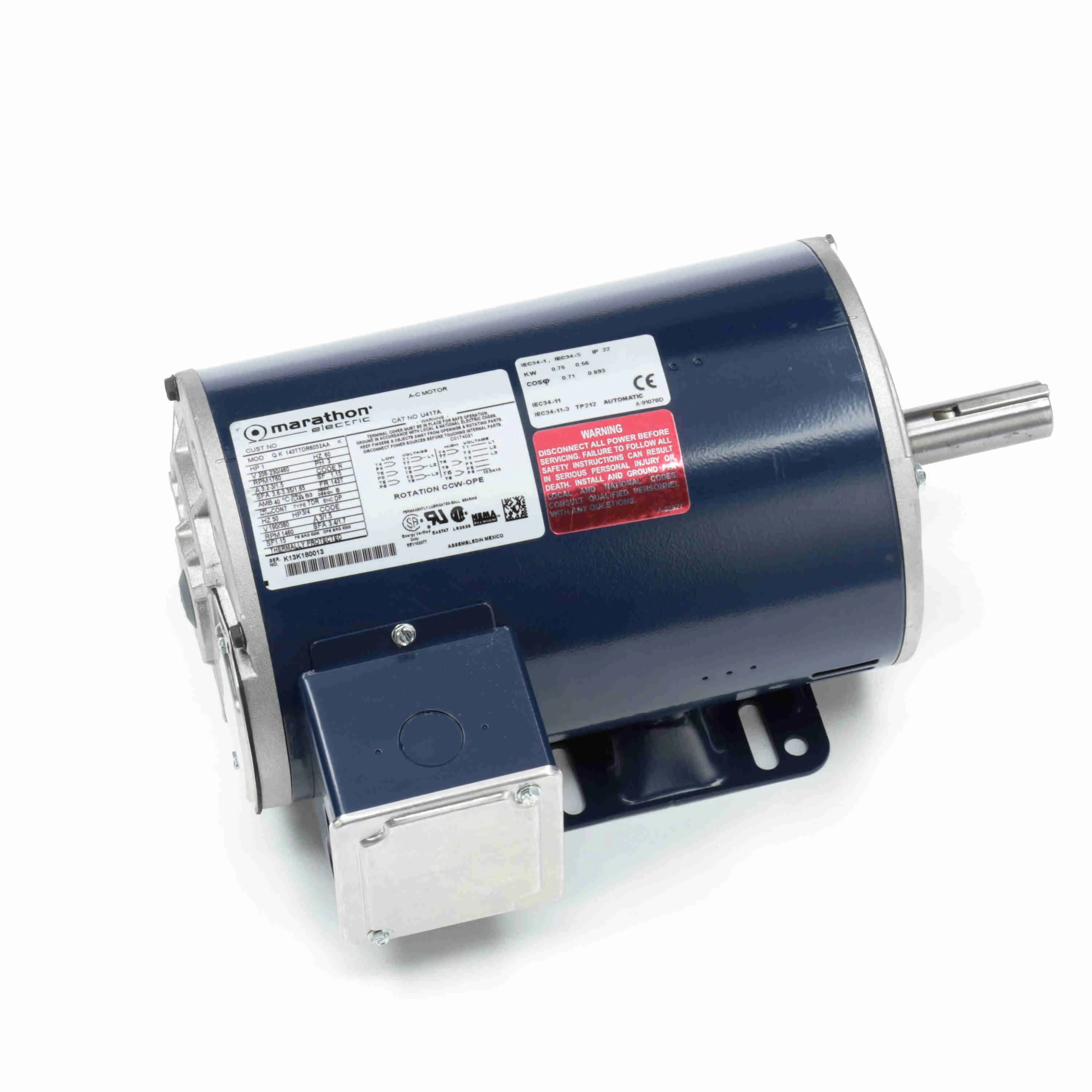

| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 85.5% |
| Efficiency Group | NEMA Premium |
| Frame | 143T |
| Frame Material | Rolled Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 3-3.2/1.5A |
| Hp | 1 hp |
| Insulation Class | Class B |
| Inverter Rated | yes |
| Length Less Shaft | 10 11/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Enclosure Design | Open Dripproof |
| Motor Mounting Position | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1760 RPM |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Overall Length | 13" |
| Phase | 3 |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 208-230/460V AC |
| Warranty | 1 yr. |
| Full Load Amps @ 50hz | 3/1.5A |
| Hp @ 50hz | 1 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Manufacturers Warranty Length | 1 yr. |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Frame Material | Steel |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Thermal Protection | Auto |
| Nominal Efficiency | 85.5% |
| Standards | CE, CSA, UL RECOGNIZED |
| Weight | 43 lbs. |
| Ship weight (kg) | 19.35 |
| Ship height (cm) | 23.83 |
| Ship length (cm) | 40.18 |
| Ship width (cm) | 31.9 |
| HS code | 8501524000 |
| Country of Origin | MX |
